Family Designation: MTEC-ISO

Solid carbide internal threading endmills used for ISO thread profile.

Application: General engineering

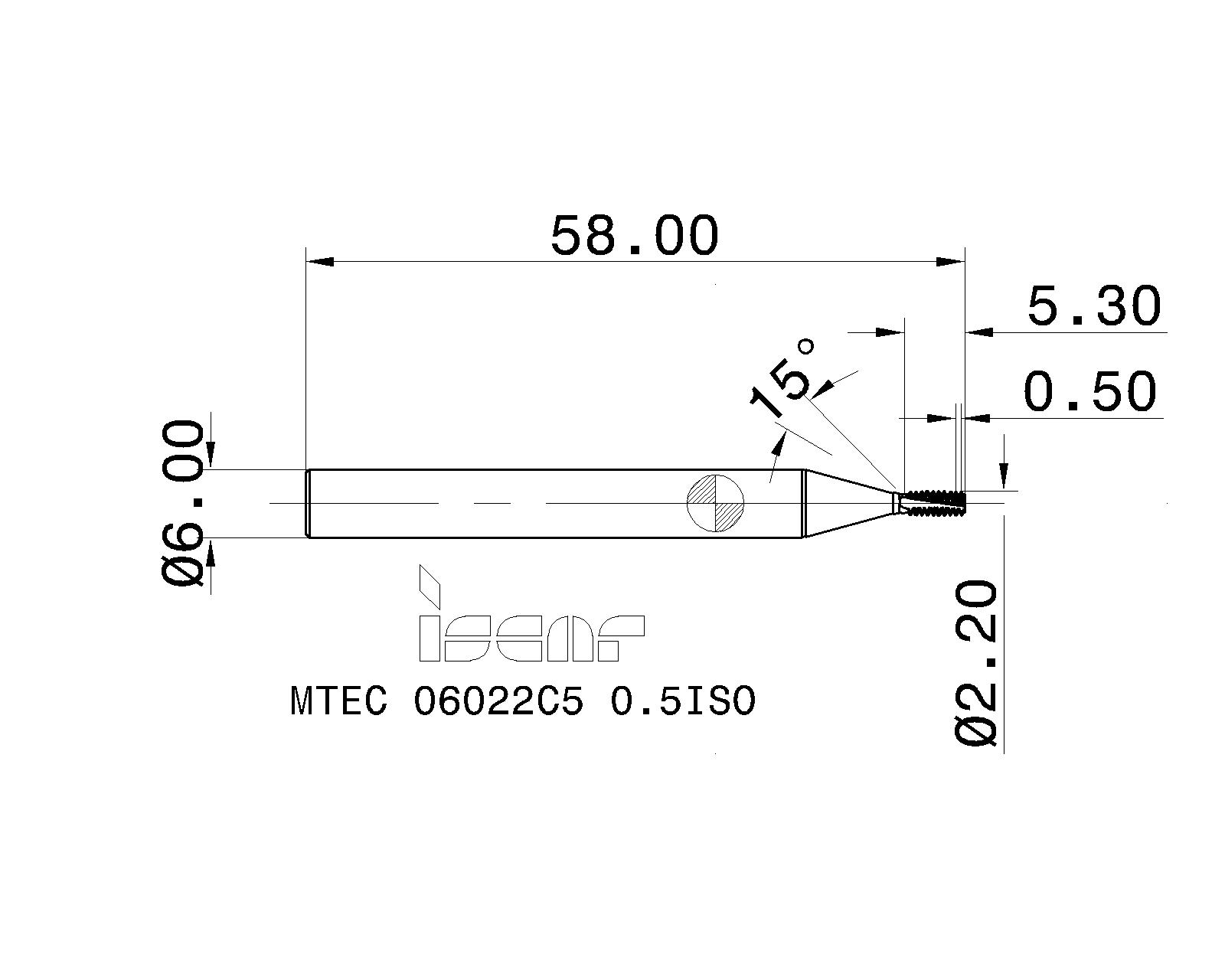

Item Designation: MTEC 06022C5 0.5ISO

TP	M Coarse	M Fine	DCONMS	DC	NOF	APMX	OAL	Shank	THFT	CCMS	COATP	CSP	FTDZ	FTDZ_2	FTDZ_3	FTDZX	FTDZX_2	GRDMFG	HAND	TTP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
0.500	M3	=>4	6.00	2.20	3	5.30	58.00	C	M60~	ZYL01F6000h$06~	~	0~	M3x0.5~	-~	-~	-~	-~	IC908 ~	R~	INT~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5603840		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5603840	IC908			1	0	456			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=5603840&cat=5603840&itemDesc=MTEC 06022C5 0.5ISO"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="javascript:OpenDxf('5603840', 'MTEC 06022C5 0.5ISO' , 'IscarDxf' , '5603840-MTEC 06022C5 0.5ISO');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5603840&itemDesc=MTEC 06022C5 0.5ISO"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5603840&itemDesc=MTEC 06022C5 0.5ISO"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
