Family Designation: MTEC-ISO

Solid carbide internal threading endmills used for ISO thread profile.

Application: General engineering

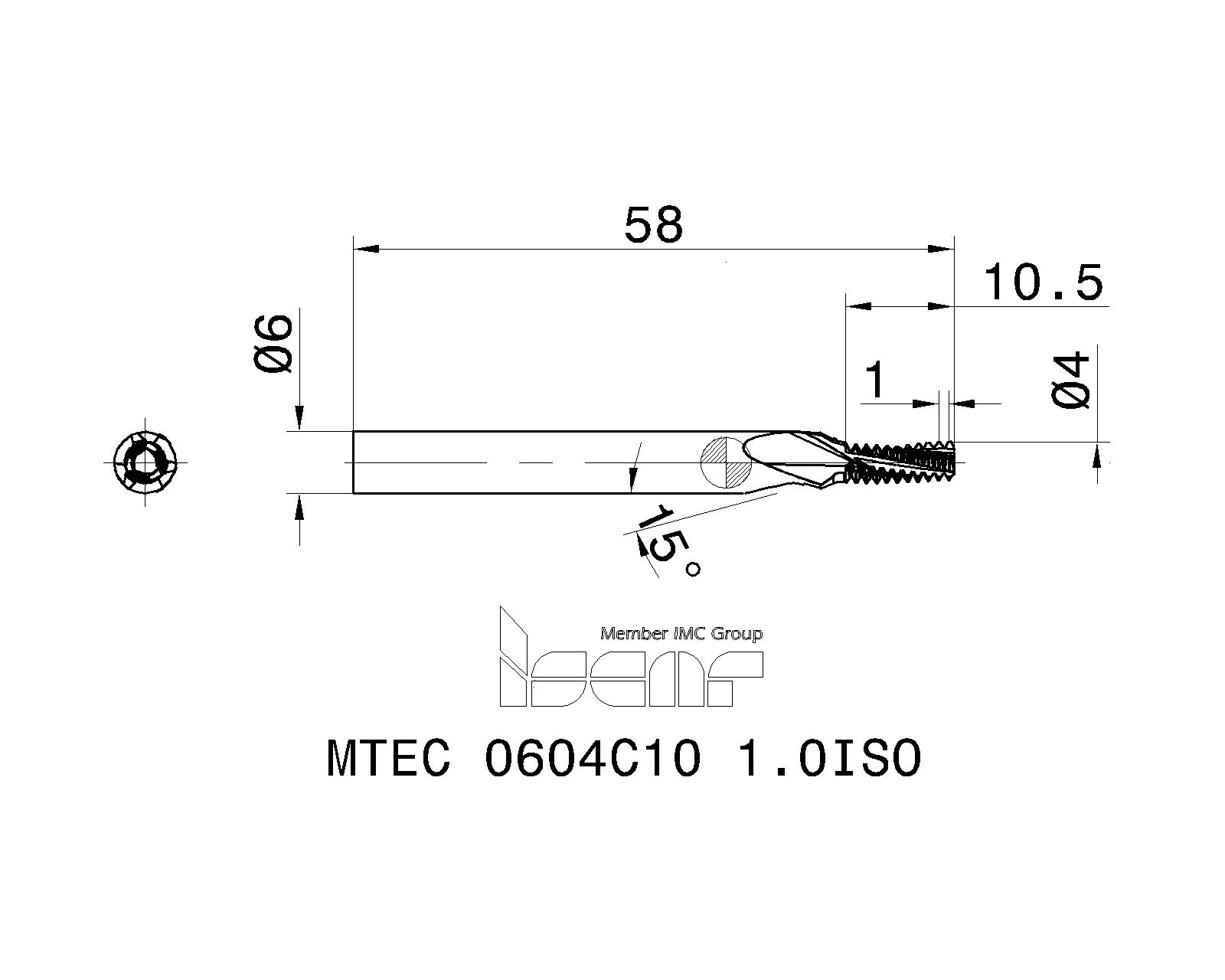

Item Designation: MTEC 0604C10 1.0ISO

TP	M Coarse	M Fine	DCONMS	DC	NOF	APMX	OAL	Shank	Key	MINI	BMC	THFT	LS	fz (min)	fz (max)	UR	TPT		CCFMS	CCMS	CCTMS	CHW	ClssID	CNSC	COATP	CSP	CUBPMS	CXSC	CZCMS	FHA	FTDZ	FTDZ_2	FTDZ_3	FTDZX	FTDZX_2	GRDMFG	GTC	HAND	ISCTMP	ISYC	LF	LTA	LU_2	TCDCONMS	TCPD	TTP	TTP_DF2	UST	ZAX	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
1.000	M6	=>7	6.00	4.00	3	10.50	58.00	C	C6~	All~	H~	M60~	~	0.02~	0.07~	~	F~	0.02~	01~	ZYL01F6000h$06~	ZYL~	-~	71EF07E083383~	0~	~	0~	F~	0~	6000~	15.0~	M6x1~	-~	-~	-~	-~	IC908 ~	MILTHGS_MZYL01~	R~	GEMLS202020~	303-09~	58.00~	22.00~	-~	h6~	~	INT~	-~	M~	10~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5603845		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21
5603845	IC908			1	0	424			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=5603845&cat=5603845&itemDesc=MTEC 0604C10 1.0ISO"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="javascript:OpenDxf('5603845', 'MTEC 0604C10 1.0ISO' , 'IscarDxf' , '5603845-MTEC 0604C10 1.0ISO');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5603845&itemDesc=MTEC 0604C10 1.0ISO"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5603845&itemDesc=MTEC 0604C10 1.0ISO"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
