Family Designation: MTEC-UN

Solid carbide threading endmills used for internal UN thread profile.

Application: General engineering

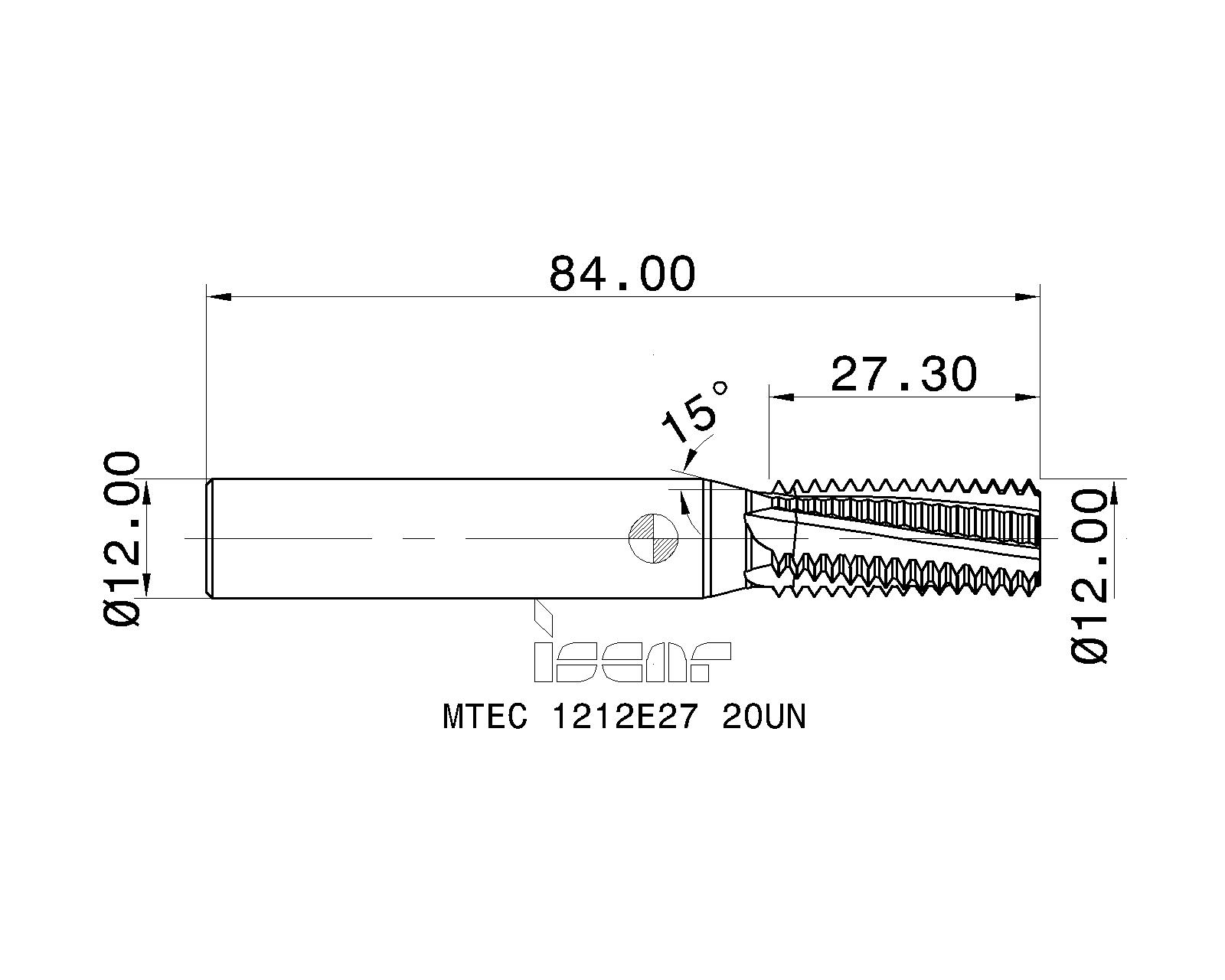

Item Designation: MTEC 1212E27 20UN

TPI	UNC	UNF	UNEF	DCONMS	DC	NOF	APMX	OAL	Shank	THFT	CCMS	COATP	CSP	FTDZ	FTDZ_2	FTDZ_3	FTDZX	FTDZX_2	GRDMFG	HAND	TP	TTP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
20.0	-	-	3/4,1	12.00	12.00	5	27.30	83.00	C	UN60~	ZYL01G1200h$06~	~	0~	3/4,1-20 UNEF~	-~	-~	-~	-~	IC908 ~	R~	1.270	INT~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5603872		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5603872	IC908			3	0	192				<a href="javascript:OpenDxf('5603872', 'MTEC 1212E27 20UN' , 'IscarDxf' , '5603872-MTEC 1212E27 20UN');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5603872&itemDesc=MTEC 1212E27 20UN"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5603872&itemDesc=MTEC 1212E27 20UN"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
