Family Designation: MTEC-UN

Solid carbide threading endmills used for internal UN thread profile.

Application: General engineering

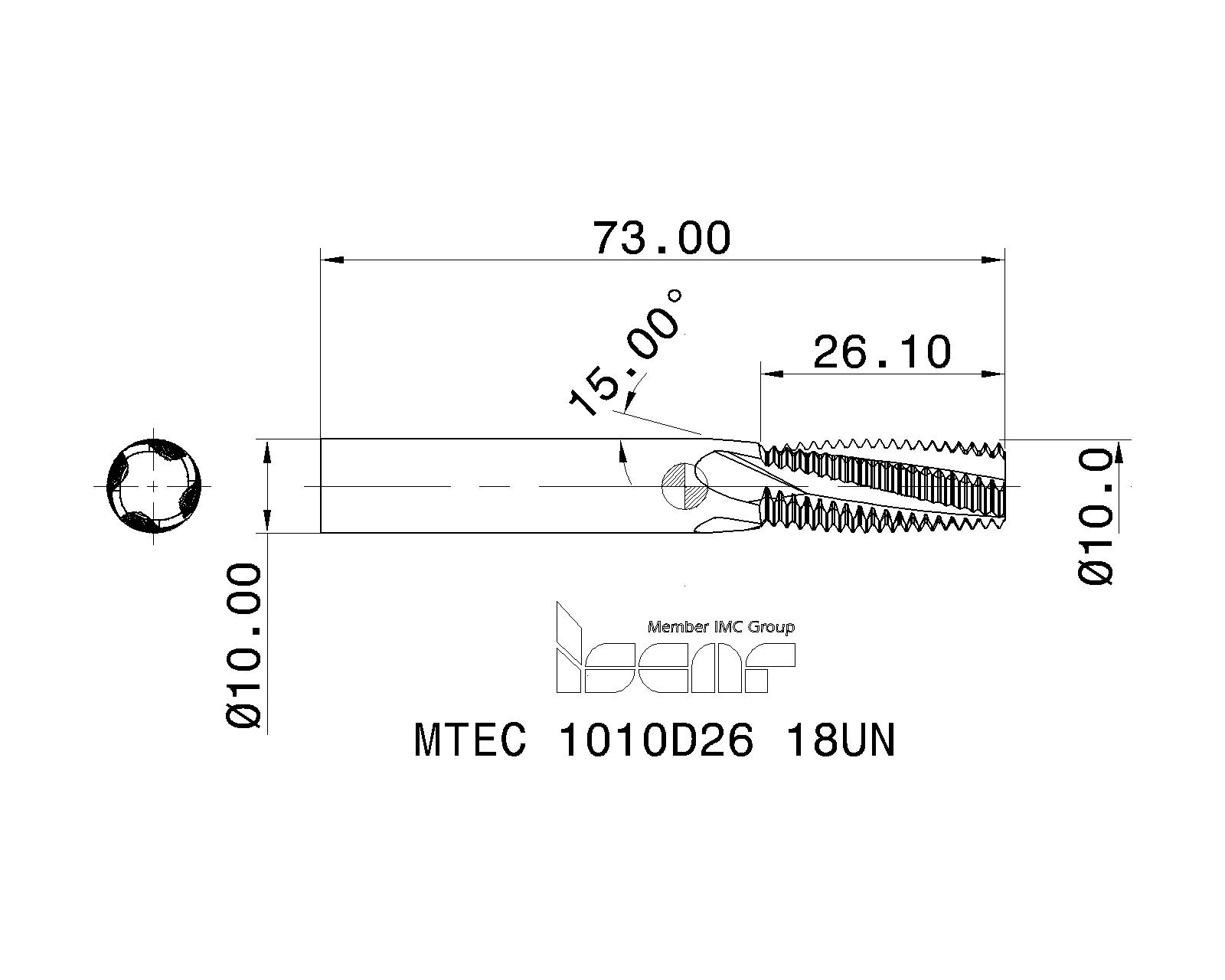

Item Designation: MTEC 1010D26 18UN

TPI	UNC	UNF	UNEF	DCONMS	DC	NOF	APMX	OAL	Shank	THFT	CCMS	COATP	CSP	FTDZ	FTDZ_2	FTDZ_3	FTDZX	FTDZX_2	GRDMFG	HAND	TP	TTP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
18.0	-	9/16,5/8	1-1/8,1-5/8	10.00	10.00	4	26.10	72.00	C	UN60~	ZYL01G1000h$06~	~	0~	9/16,5/8-18 UNF~	1-1/8,1-18 UNEF~	-~	-~	-~	IC908 ~	R~	1.411	INT~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5603874		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5603874	IC908			1	0	480				<a href="javascript:OpenDxf('5603874', 'MTEC 1010D26 18UN' , 'IscarDxf' , '5603874-MTEC 1010D26 18UN');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5603874&itemDesc=MTEC 1010D26 18UN"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5603874&itemDesc=MTEC 1010D26 18UN"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
