Family Designation: MTEC-W

Solid carbide threading endmills used for internal or external BSF/BSP Thread Profiles

Application: General engineering fittings and pipe couplings

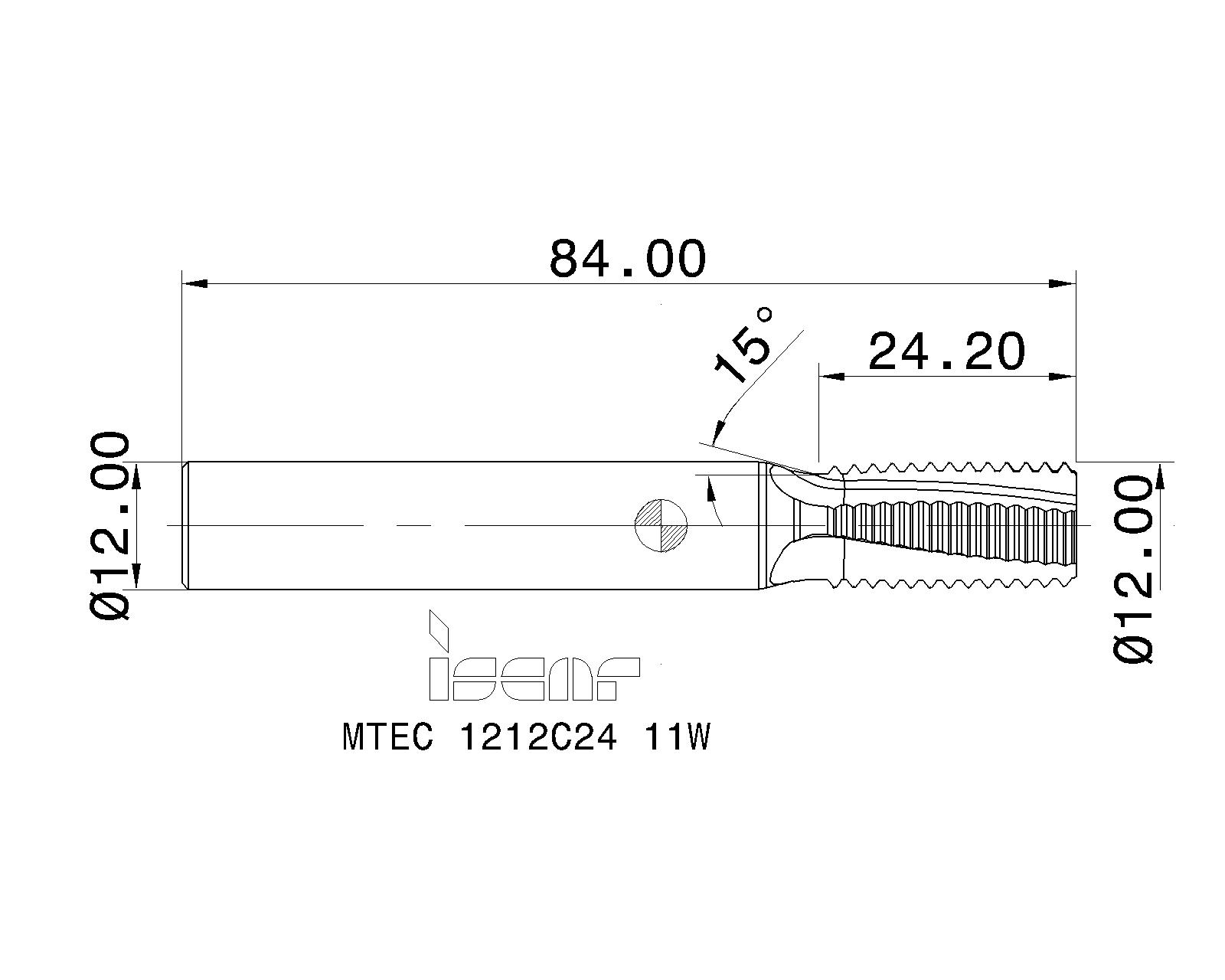

Item Designation: MTEC 1212C24 11W

TPI	TDZ	DCONMS	DC	NOF	APMX	OAL	Shank	TP	THFT	CCMS	COATP	CSP	FTDZ	FTDZ_2	FTDZ_3	FTDZX	FTDZX_2	GRDMFG	HAND	TTP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
11.0	G1,-G1-1/2	12.00	12.00	3	24.20	84.00	C	-~	WH55~	ZYL01G1200h$06~	~	0~	G1,1-1/2~	-~	-~	-~	-~	IC908 ~	R~	BOTH~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5603904		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5603904	IC908			1	0	64			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=5603904&cat=5603904&itemDesc=MTEC 1212C24 11W"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('5603904', 'MTEC 1212C24 11W' , 'IscarDxf' , '5603904-MTEC 1212C24 11W');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5603904&itemDesc=MTEC 1212C24 11W"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5603904&itemDesc=MTEC 1212C24 11W"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Internal & External tolerance: ISO 228-1 - Medium class
