Family Designation: MM HC

MULTI-MASTER, interchangeable, solid carbide slot drill milling heads with two 10° helix flutes. Available with a variety of corner radii (economical type).

Economical solution

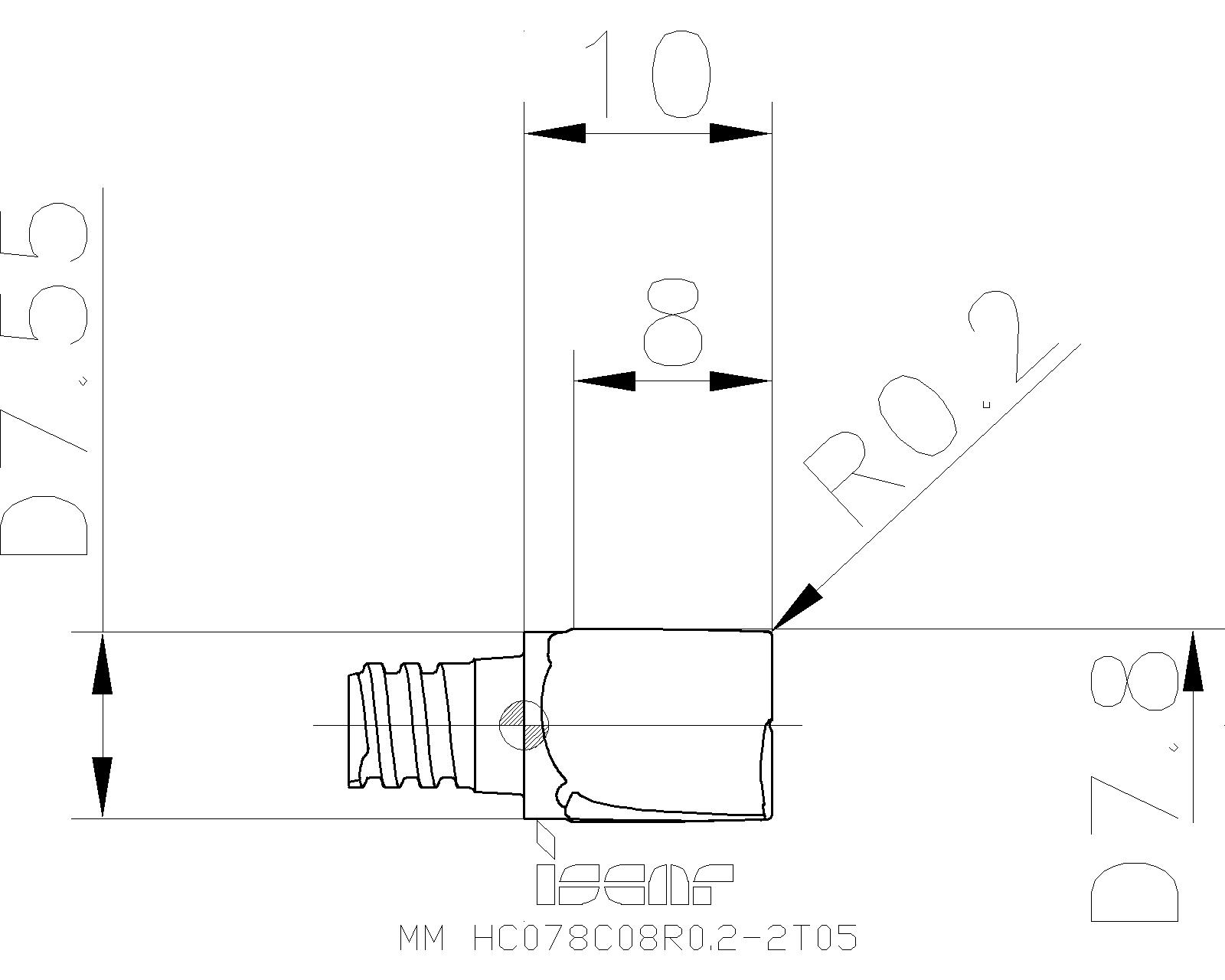

Item Designation: MM HC078C08R0.2-2T05

DC	NOF	APMX	RE	Tm	THSZMS	DCONMS	LF	FHA	fz (min)	fz (max)	RMPX°	DCX	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	OAL	ZEFF	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
7.80	2	7.70	0.20	r0-2.0	T05	7.60	10.00	10.0	0.03	0.09	5.0~	7.80~	SAI01C0050$$$$~	~	0~	IC908 ~	R~	90.0~	17.10~	2~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5604302		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5604302	IC908			1	0	1008				<a href="javascript:OpenDxf('5604302', 'MM HC078C08R0.2-2T05' , 'IscarDxf' , '5604302-MM HC078C08R0.2-2T05');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5604302&itemDesc=MM HC078C08R0.2-2T05"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5604302&itemDesc=MM HC078C08R0.2-2T05"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 2
For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on "More Info".
Do not apply lubricant to the threaded connection.

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	7002864	MM KEY 6X4 (Optional, should be ordered separately)	Wrench-open
