Family Designation: MTECB-UN

Solid carbide threading endmills with coolant hole for internal UN thread profile.

Application: General engineering

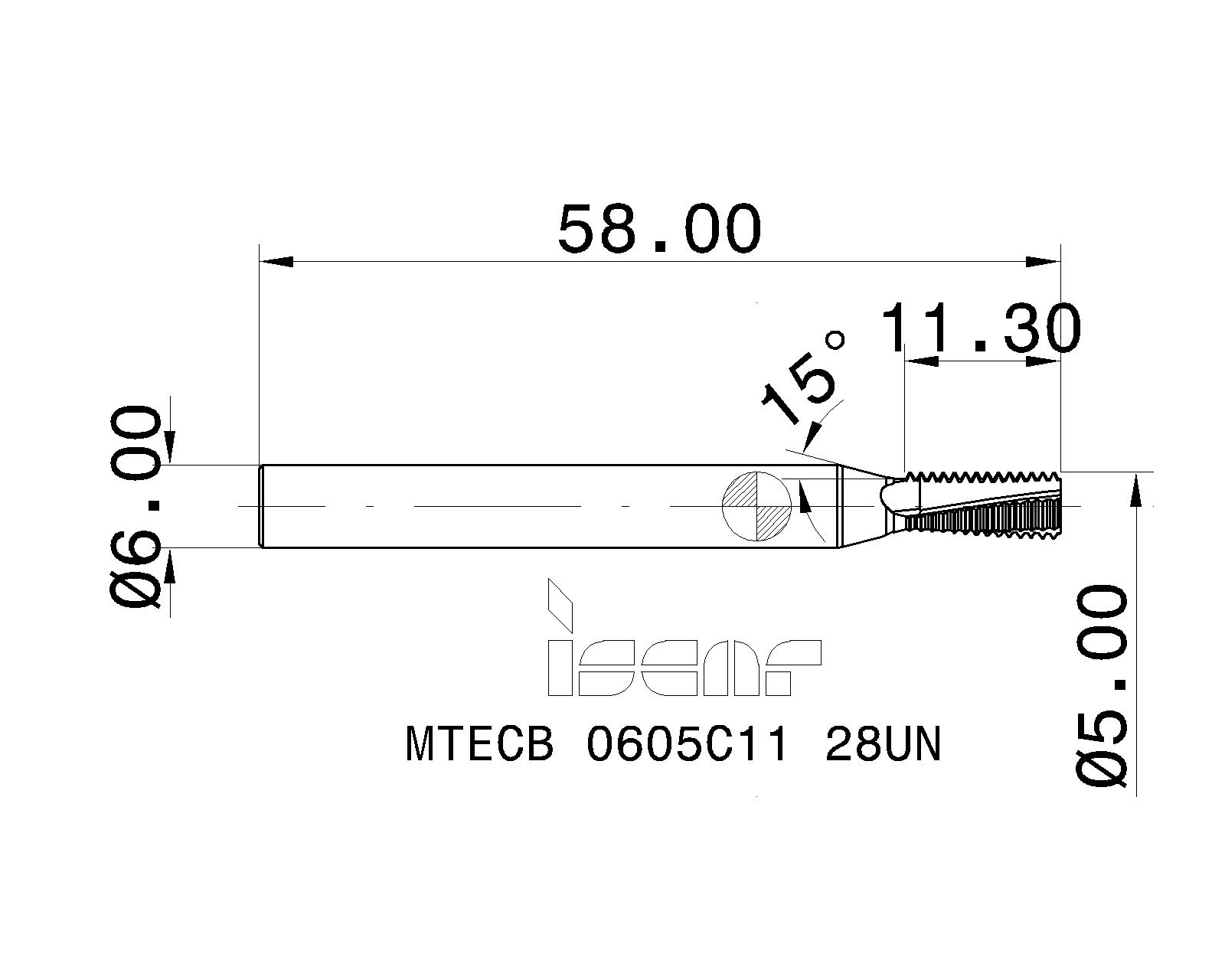

Item Designation: MTECB 0605C11 28UN

TPI	UNC	UNF	UNEF	DCONMS	DC	NOF	APMX	OAL	Shank	THFT	CCMS	COATP	CSP	FTDZ	FTDZ_2	FTDZ_3	FTDZX	FTDZX_2	GRDMFG	HAND	TP	TTP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
28.0	-	1/4	-	6.00	5.00	3	11.30	58.00	C	UN60~	ZYL01F6000h$06~	~	1~	1/4-28 UNF~	-~	-~	-~	-~	IC908 ~	R~	0.907	INT~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5605054		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5605054	IC908			3	44	1472			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=5605054&cat=5605054&itemDesc=MTECB 0605C11 28UN"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('5605054', 'MTECB 0605C11 28UN' , 'IscarDxf' , '5605054-MTECB 0605C11 28UN');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5605054&itemDesc=MTECB 0605C11 28UN"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5605054&itemDesc=MTECB 0605C11 28UN"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
