Family Designation: MTECZ-UN

Solid carbide threading endmills with coolant holes located in the flutes for internal UN thread profiles.

Application: General engineering

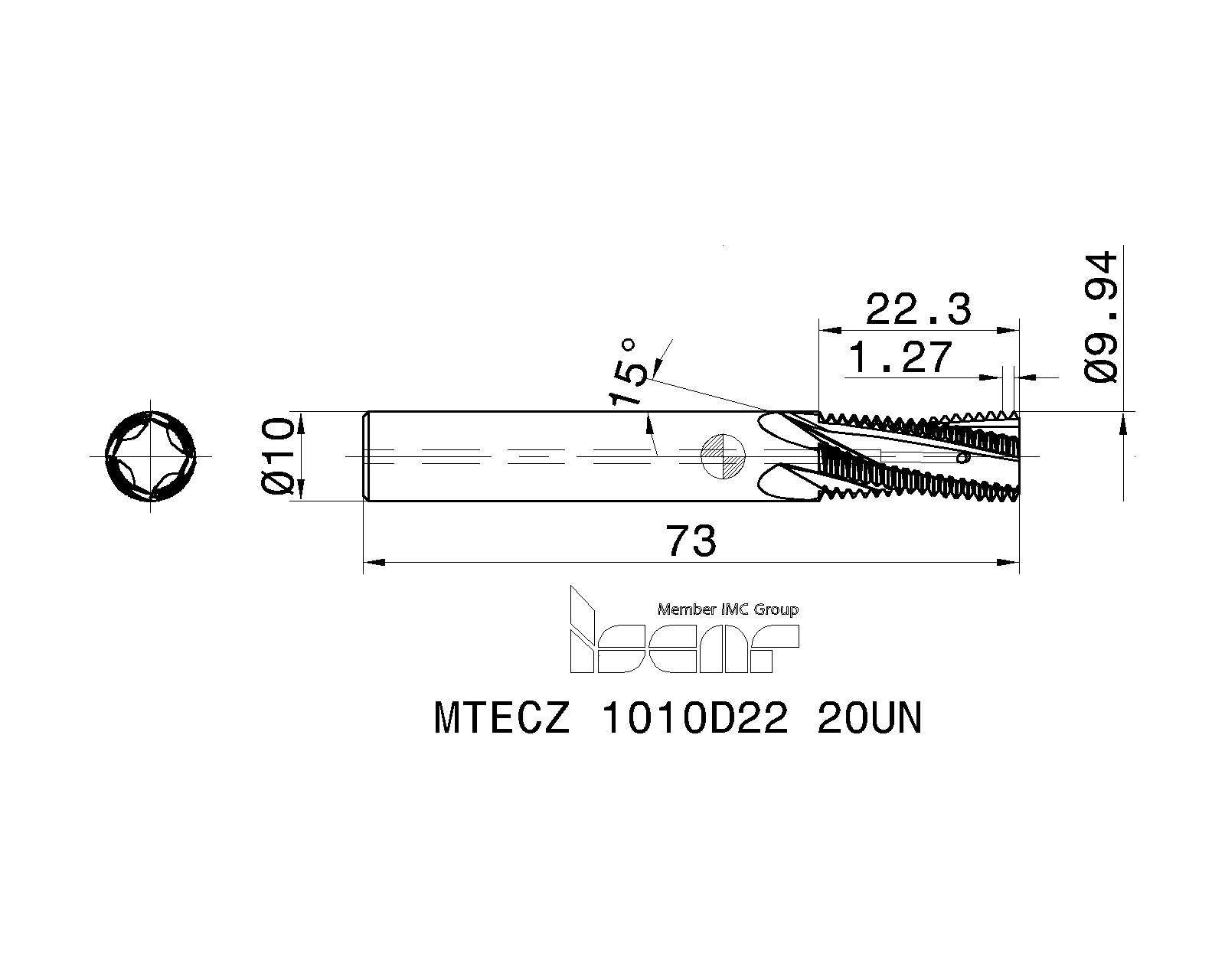

Item Designation: MTECZ 1010D22 20UN

TPI	UNC	UNF	UNEF	DCONMS	DC	NOF	APMX	OAL	Shank	THFT	CCMS	COATP	CSP	FTDZ	FTDZ_2	FTDZ_3	FTDZX	FTDZX_2	GRDMFG	HAND	TP	TTP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
20.0	-	1/2	-	10.00	10.00	4	22.30	73.00	C	UN60~	ZYL01G1000h$06~	~	1~	1/2-20 UNF~	-~	-~	-~	-~	IC908 ~	R~	1.270	INT~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5606130		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5606130	IC908	Alternative		3	0	0			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=5606130&cat=5606130&itemDesc=MTECZ 1010D22 20UN"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('5606130', 'MTECZ 1010D22 20UN' , 'IscarDxf' , '5606130-MTECZ 1010D22 20UN');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5606130&itemDesc=MTECZ 1010D22 20UN"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5606130&itemDesc=MTECZ 1010D22 20UN"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
