Family Designation: MTECZ-BSF/BSP

Solid carbide threading endmills with coolant holes for internal or external BSF/BSP thread profile.

Application: General engineering fittings and pipe couplings

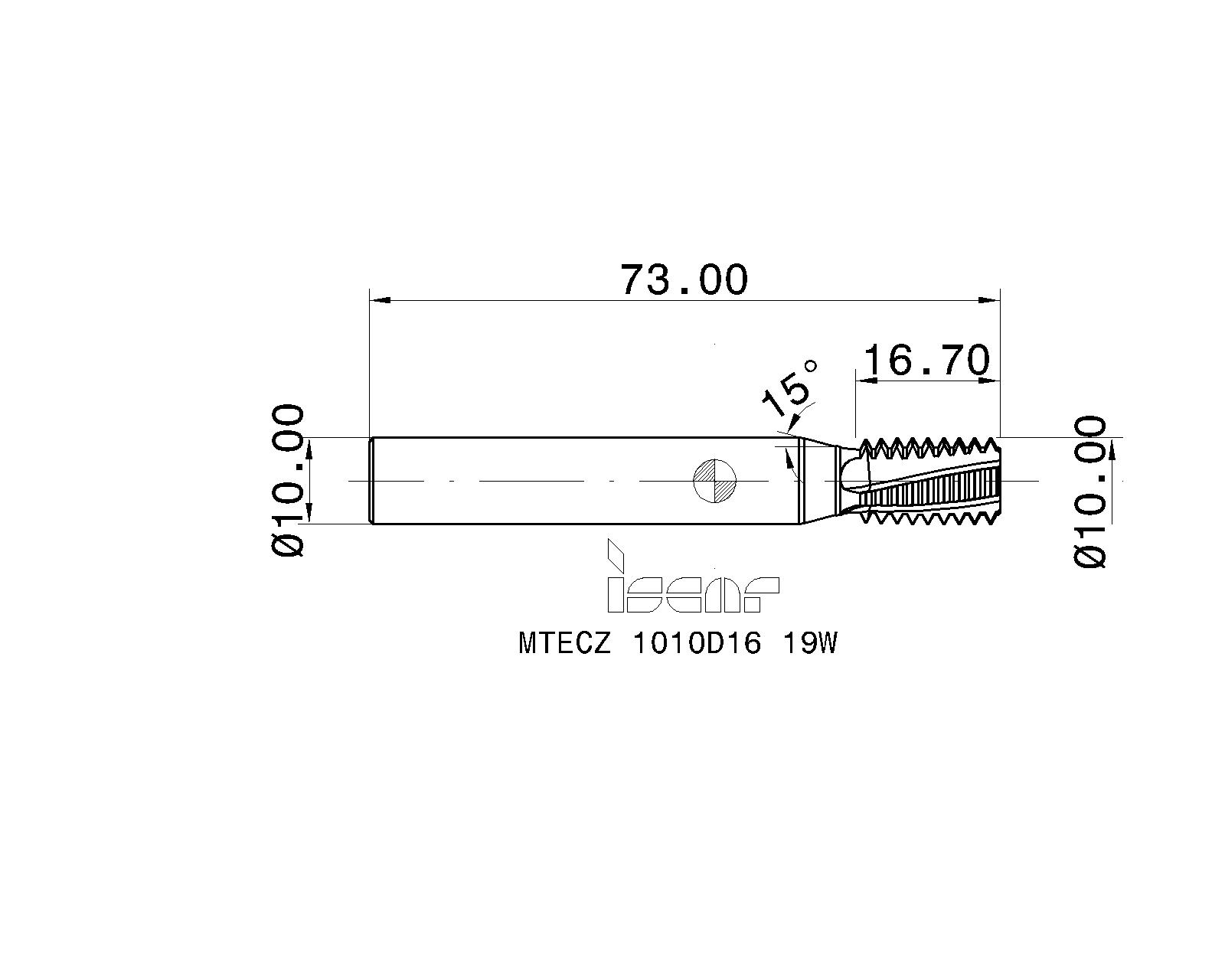

Item Designation: MTECZ 1010D16 19W

TPI	TDZ	DCONMS	DC	NOF	APMX	OAL	Shank	TP	CCMS	COATP	CSP	FTDZ	FTDZ_2	FTDZ_3	FTDZX	FTDZX_2	GRDMFG	HAND	THFT	TTP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
19.0	G1/4-3/8	10.00	10.00	4	16.70	73.00	C	-~	ZYL01G1000h$06~	~	1~	G1/4-3/8~	-~	-~	-~	-~	IC908 ~	R~	WH55~	BOTH~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5606143		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5606143	IC908			1	0	272			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=5606143&cat=5606143&itemDesc=MTECZ 1010D16 19W"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('5606143', 'MTECZ 1010D16 19W' , 'IscarDxf' , '5606143-MTECZ 1010D16 19W');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5606143&itemDesc=MTECZ 1010D16 19W"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5606143&itemDesc=MTECZ 1010D16 19W"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
With internal coolant hole
Internal & External tolerance: ISO 228-1 - Medium class
