Family Designation: HM90 ADCT 1505 HELI2000, Helical cutting edged, high 90° shoulder accuracy and surface quality inserts. Used for general use applications.


Item Designation: HM90 ADCT 150508 PDTR
W1 INSL APMX S RE BS Fig. fz
(min) 		fz
(max) 		CEDC HAND SC AN CBMD CNC COATP D1 GRDMFG IFS L LE NIS SSC  WEP ApplMat StaSteelCastIronHardMa SupTit CutEdMatCoating GICATGIREMgiic
9.5015.7012.006.400.804.1030.080.152~R~A~15.0~-~2~~~IC830 ~3~15.70~14.00~1~15~0~Steel~Stainless Steel~  Superalloys and titanium~Carbide~AlTiN+TiN ~5606303 1
Catalog NoGrade & VcAlternativeFiles PackageGISCAvailUSAAdd to favoritesP21 Properties FileAdd to AssemblyGTCStock Availability
   US        EU     E. Asia		STPP21StockPerUser
5606303 IC830Alternative10<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=5606303&cat=5606303&itemDesc=HM90 ADCT 150508 PDTR"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=5606303&itemDesc=HM90 ADCT 150508 PDTR"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a><a href="FilesDownload.aspx?FileType=P&cat=5606303&itemDesc=HM90 ADCT 150508 PDTR"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 10
For inserts with corner radii larger than 2.0 mm, the cutter body and seats should be modified
Inserts with corner radii larger than 0.8 mm should be used on ADK & SM tools only on the face of the cutter.
For a more economical insert refer to ADKT 1505PDR-HM in the ADKT 1505PDR family
3D Representation
Assembly Video

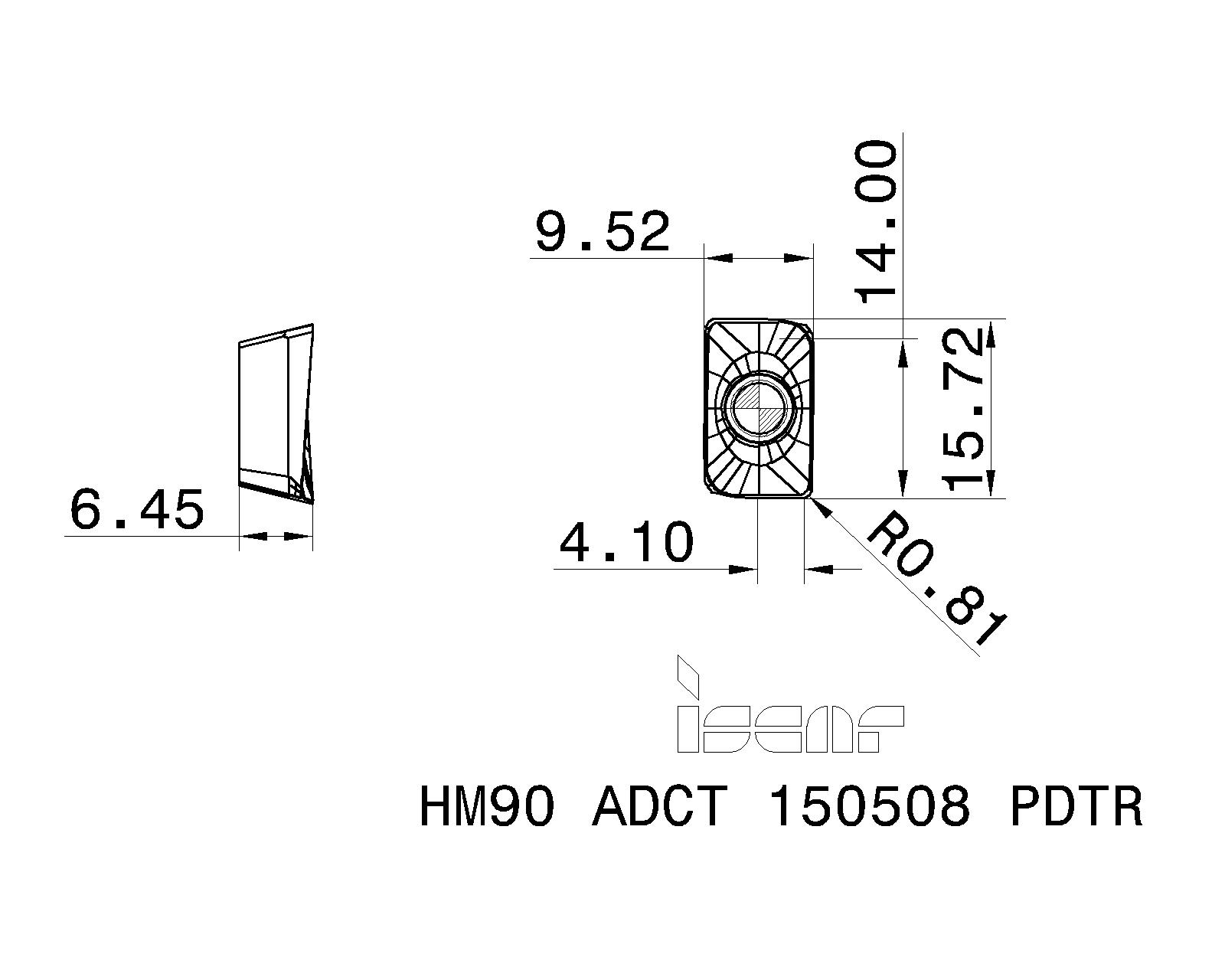

2D Representation
