Family Designation: HM90 ADKT 1505 HELI2000 milling inserts with various corner radii for general use.

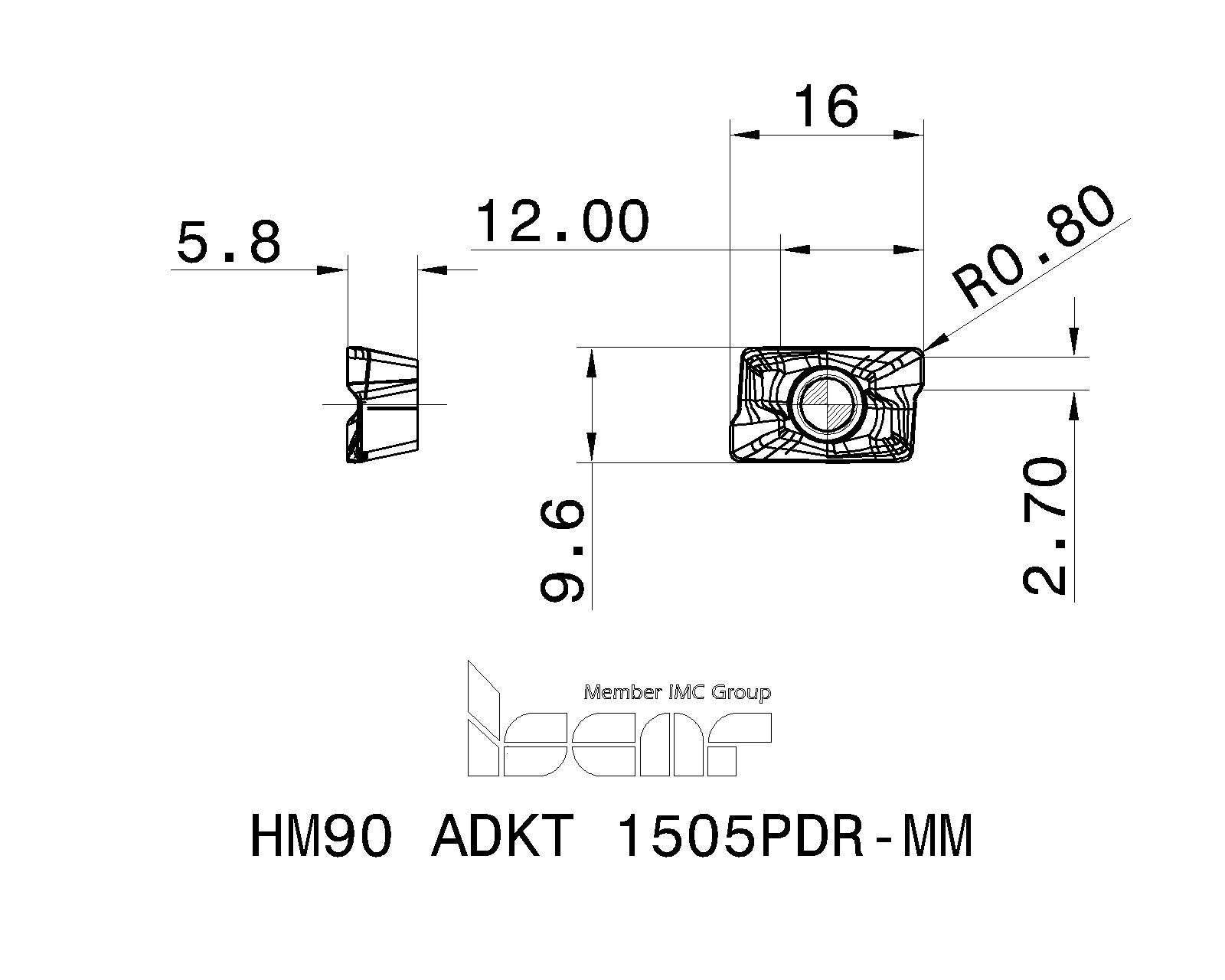

Item Designation: HM90 ADKT 1505PDR-MM
W1 INSL APMX S RE BS Fig. fz
(min) 		fz
(max) 		CEDC SC AN CBMD CNC COATP D1 GRDMFG IFS L LE NIS SSC  WEP ApplMat StaSteelCastIronHardMa SupTit CutEdMatCoating GICATGIREMgiic
9.6016.0012.005.800.802.7010.080.152~A~15.0~MM~2~~~IC830 ~3~16.00~14.50~1~15~0~Steel~Stainless Steel~  Superalloys and titanium~Carbide~AlTiN+TiN ~5606454 1
Catalog NoGrade & VcAlternativeFiles PackageGISCAvailUSAAdd to favoritesP21 Properties FileAdd to AssemblyGTCStock Availability
   US        EU     E. Asia		STPP21StockPerUser
5606454 IC830Alternative170<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=5606454&cat=5606454&itemDesc=HM90 ADKT 1505PDR-MM"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=5606454&itemDesc=HM90 ADKT 1505PDR-MM"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a><a href="FilesDownload.aspx?FileType=P&cat=5606454&itemDesc=HM90 ADKT 1505PDR-MM"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 10
For inserts with corner radii larger than 2.0 mm, the cutter body and seats should be modified
Inserts with corner radii larger than 0.8 mm should be used on ADK & SM tools only on the face of the cutter.
