Family Designation: EC-E-3

3 flute, 38° helix medium length solid carbide endmills.

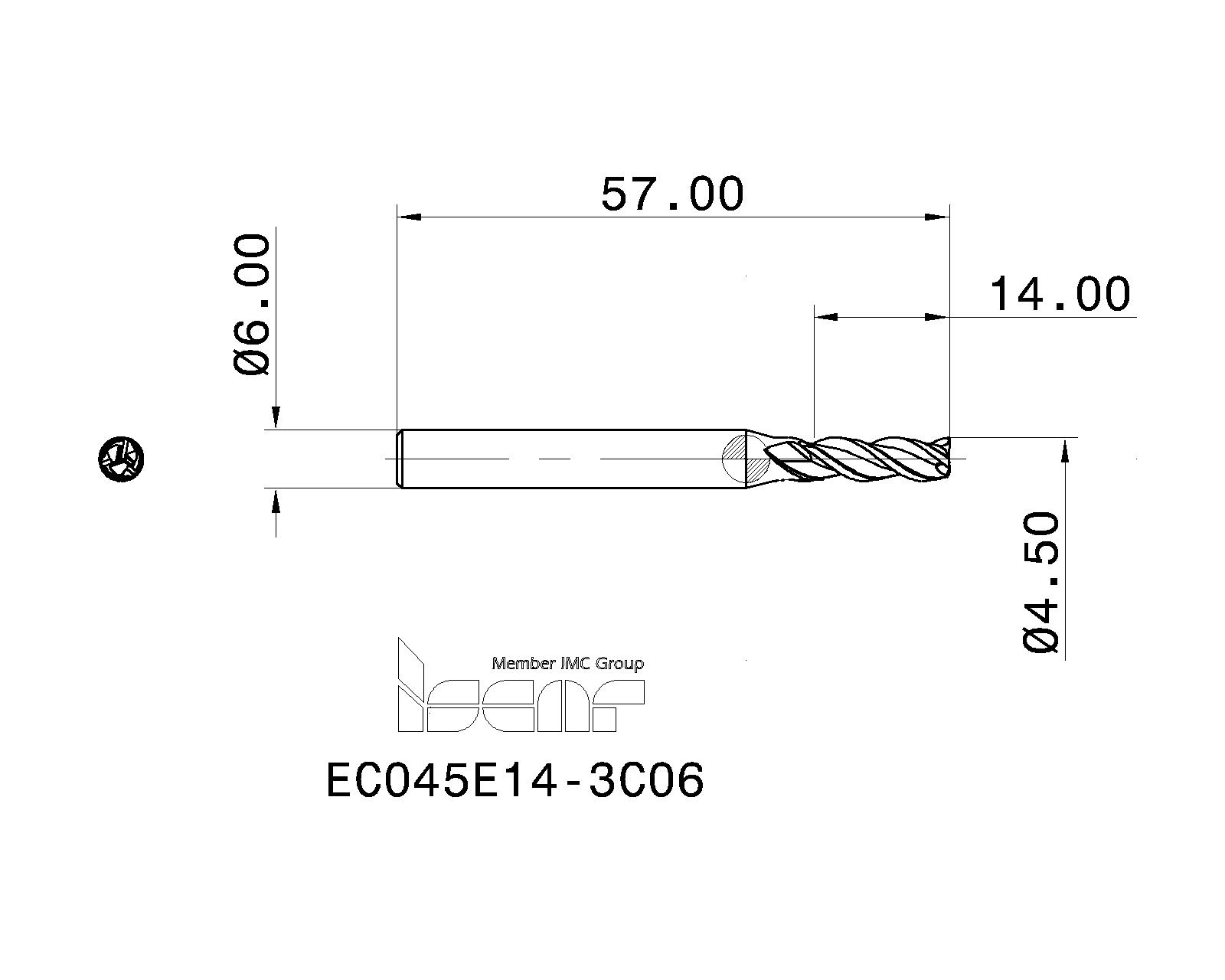

Item Designation: EC045E14-3C06

DC	DCONMS	APMX	OAL	NOF	FHA	RMPX°	Shank	fz (min)	fz (max)	DCX	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	LU	RE	ZEFF	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
4.50	6.00	14.00	57.00	3	38.0	5.0	C	0.02	0.05	4.50~	ZYL01F6000h$06~	~	0~	IC08 ~	R~	90.0~	-~	0.00~	3~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN ~	5620642		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5620023	IC08	Alternative		3	0	9				<a href="javascript:OpenDxf('5620023', 'EC045E14-3C06' , 'IscarDxf' , '5620023-EC045E14-3C06');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5620023&itemDesc=EC045E14-3C06"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5620023&itemDesc=EC045E14-3C06"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
5620642	IC900			1	0	4200				<a href="javascript:OpenDxf('5620642', 'EC045E14-3C06' , 'IscarDxf' , '5620642-EC045E14-3C06');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5620642&itemDesc=EC045E14-3C06"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5620642&itemDesc=EC045E14-3C06"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Multi-purpose endmill.
Suitable for deep slotting.
