Family Designation: EC-E-3

3 flute, 38° helix medium length solid carbide endmills.

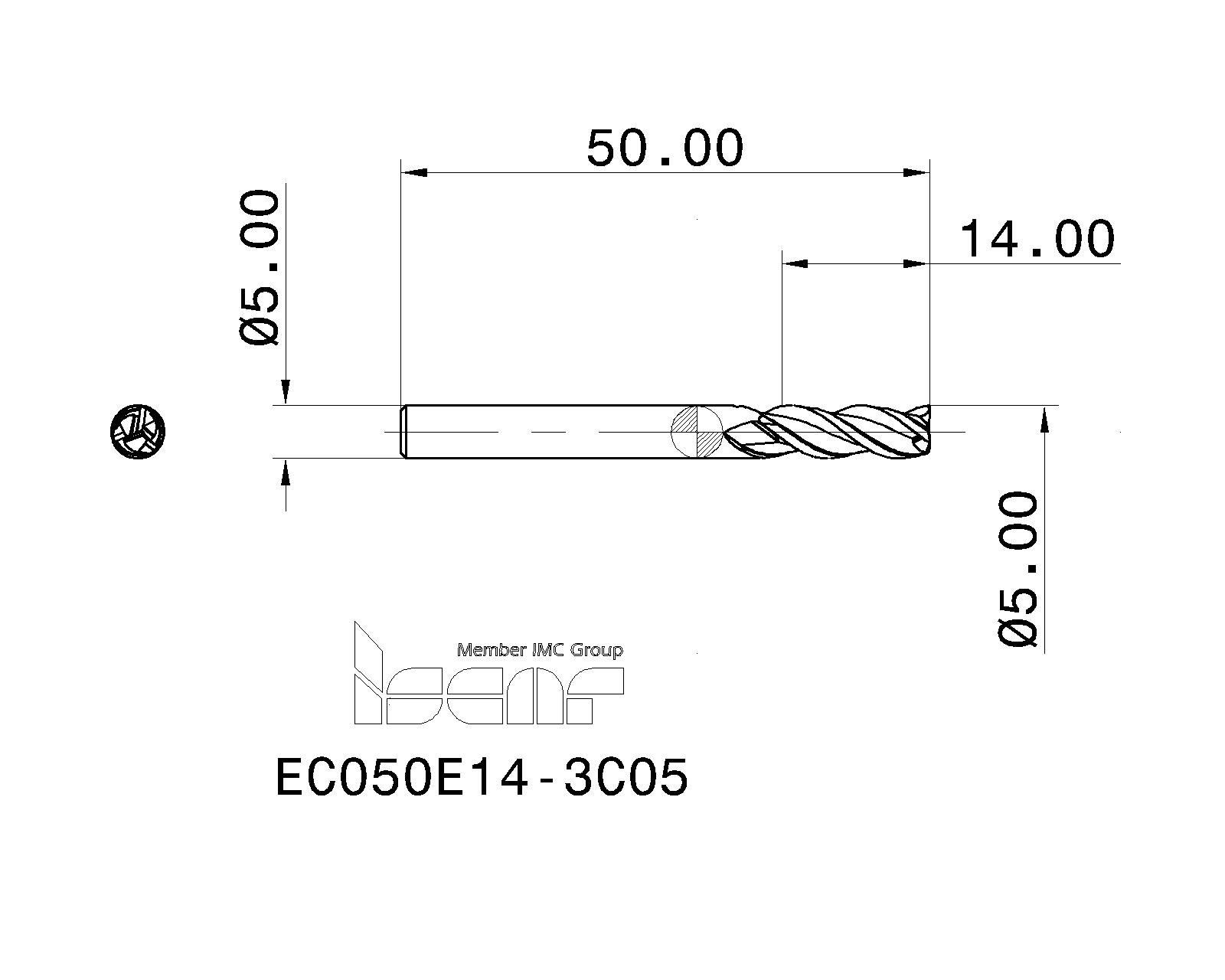

Item Designation: EC050E14-3C05

DC	DCONMS	APMX	OAL	NOF	FHA	RMPX°	Shank	fz (min)	fz (max)	DCX	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	LU	RE	ZEFF	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
5.00	5.00	14.00	50.00	3	38.0	5.0	C	0.02	0.06	5.00~	ZYL01F5000h$06~	~	0~	IC08 ~	R~	90.0~	-~	0.00~	3~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN ~	5620455		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5620024	IC08	Alternative		3	0	160				<a href="javascript:OpenDxf('5620024', 'EC050E14-3C05' , 'IscarDxf' , '5620024-EC050E14-3C05');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5620024&itemDesc=EC050E14-3C05"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5620024&itemDesc=EC050E14-3C05"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
5620455	IC900	Alternative		1	0	6096				<a href="javascript:OpenDxf('5620455', 'EC050E14-3C05' , 'IscarDxf' , '5620455-EC050E14-3C05');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5620455&itemDesc=EC050E14-3C05"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5620455&itemDesc=EC050E14-3C05"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Multi-purpose endmill.
Suitable for deep slotting.
