Family Designation: ECS/ECCS-E-3

3 flute, 38° helix short solid carbide slot / drill endmills with 3xd relieved necks and chamfered corners.

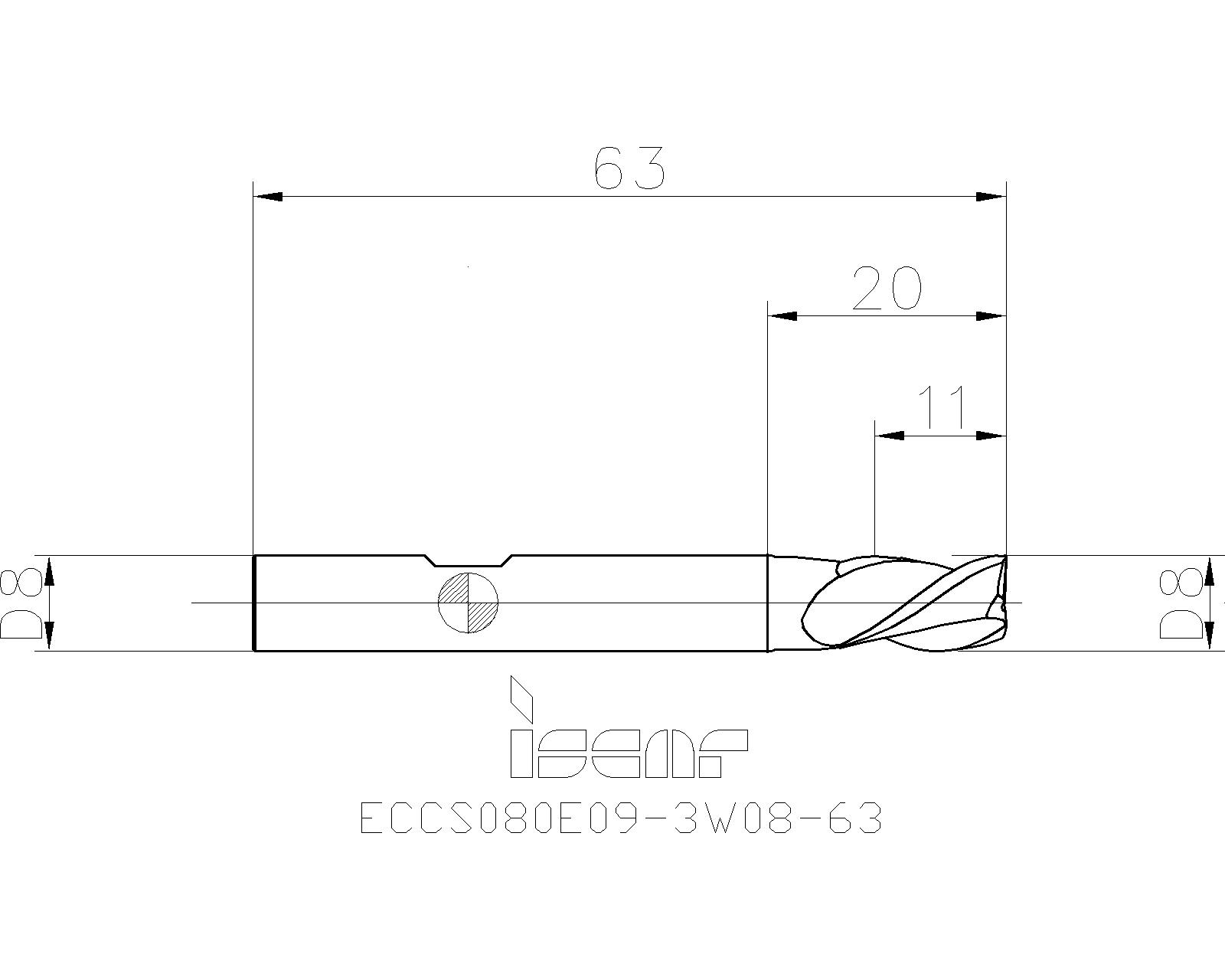

Item Designation: ECCS080E09-3W08-63

DC	DCONMS	APMX	LU	DN	OAL	NOF	FHA	RMPX°	Shank	fz (min)	fz (max)	CHW	KCH	DCX	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	RE	ZEFF	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
8.00	8.00	9.00	21.00	7.60	63.00	3	38.0	5.0	W	0.03	0.09	0.15	45.0	8.00~	ZYL10F8000h$06~	~	0~	IC900 ~	R~	90.0~	-~	3~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN ~	5620536		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5620536	IC900			1	0	110			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=0&stplFolder=STPL&p21=5620536&cat=5620536&itemDesc=ECCS080E09-3W08-63"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('5620536', 'ECCS080E09-3W08-63' , 'IscarDxf' , '5620536-ECCS080E09-3W08-63');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5620536&itemDesc=ECCS080E09-3W08-63"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5620536&itemDesc=ECCS080E09-3W08-63"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
