ISCAR Cutting Tools - Metal Working Tools - EBM-A-2 : 5620600

Geometry Checker ×

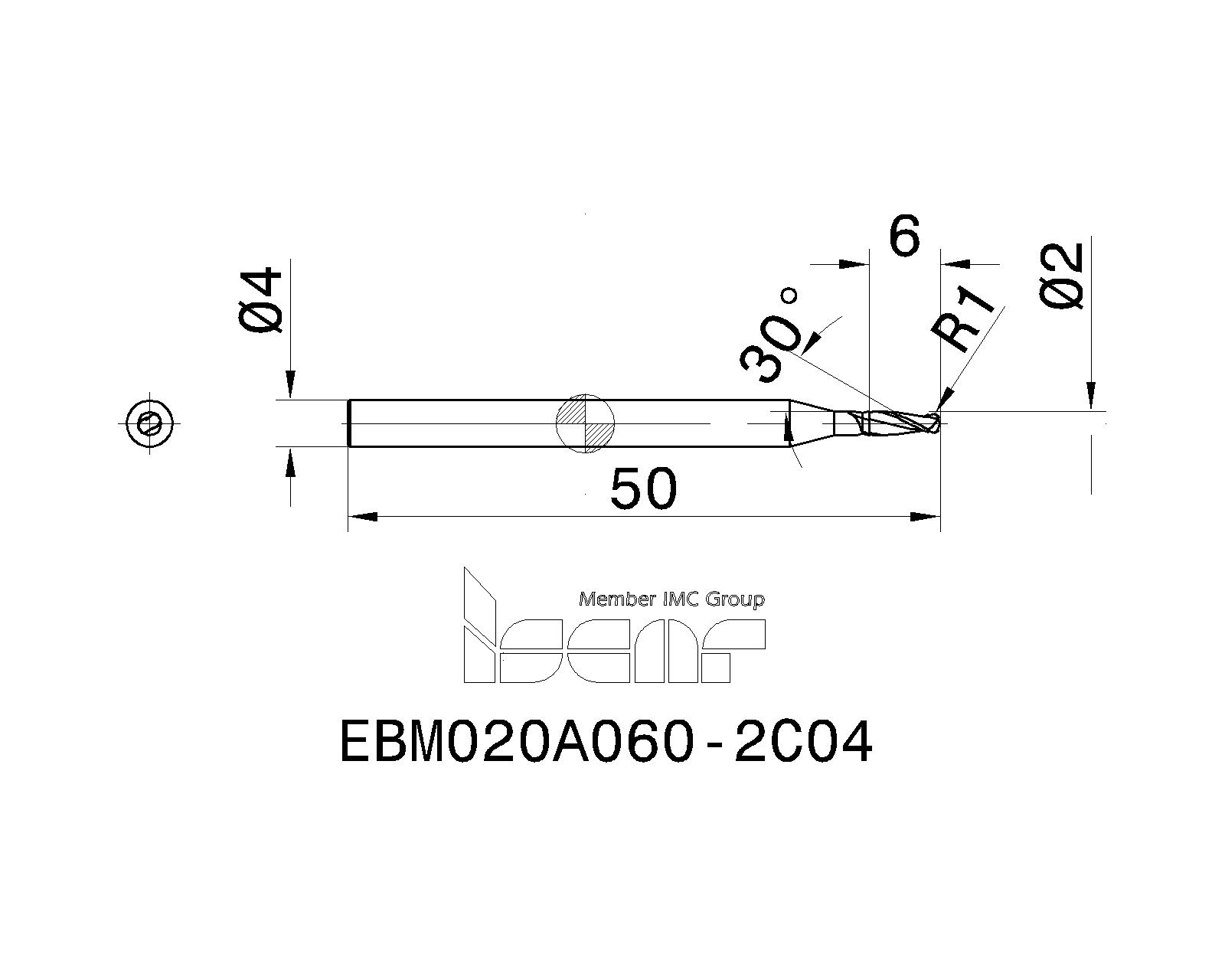

Family Designation: EBM-A-2

2 flute, 30° helix medium length solid carbide miniature ball nose endmills.

Item Designation: EBM020A060-2C04

DC	RE	DCONMS	APMX	OAL	NOF	FHA	Shank	RETOLL	RETOLU	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	LU	RMPX°	ZEFF	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
2.00	1.00	4.00	6.00	50.00	2	30.0	C	0.000	0.004	ZYL01F4000h$06~	~	0~	IC08 ~	R~	~	-~	90.0~	2~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN ~	5621202		3

Catalog No	Grade & Vc	Alternative	GISC	AvailEU	DXF	STPL	P21
3383865	IC902	Alternative	8	112	<a href="javascript:OpenDxf('3383865', 'EBM020A060-2C04' , 'IscarDxf' , '3383865-EBM020A060-2C04');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3383865&itemDesc=EBM020A060-2C04"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3383865&itemDesc=EBM020A060-2C04"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
5620600	IC900	Alternative	1	5952	<a href="javascript:OpenDxf('5620600', 'EBM020A060-2C04' , 'IscarDxf' , '5620600-EBM020A060-2C04');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5620600&itemDesc=EBM020A060-2C04"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5620600&itemDesc=EBM020A060-2C04"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
5621202	IC08	Alternative	1	2256	<a href="javascript:OpenDxf('5621202', 'EBM020A060-2C04' , 'IscarDxf' , '5621202-EBM020A060-2C04');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5621202&itemDesc=EBM020A060-2C04"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5621202&itemDesc=EBM020A060-2C04"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
Short and stable design for profiling (roughing)

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
