Family Designation: EB-A-2

2 flute, 30° helix short solid carbide ball nose endmills.

Representative Image

Hard Materials

Representative Image

Hard Materials

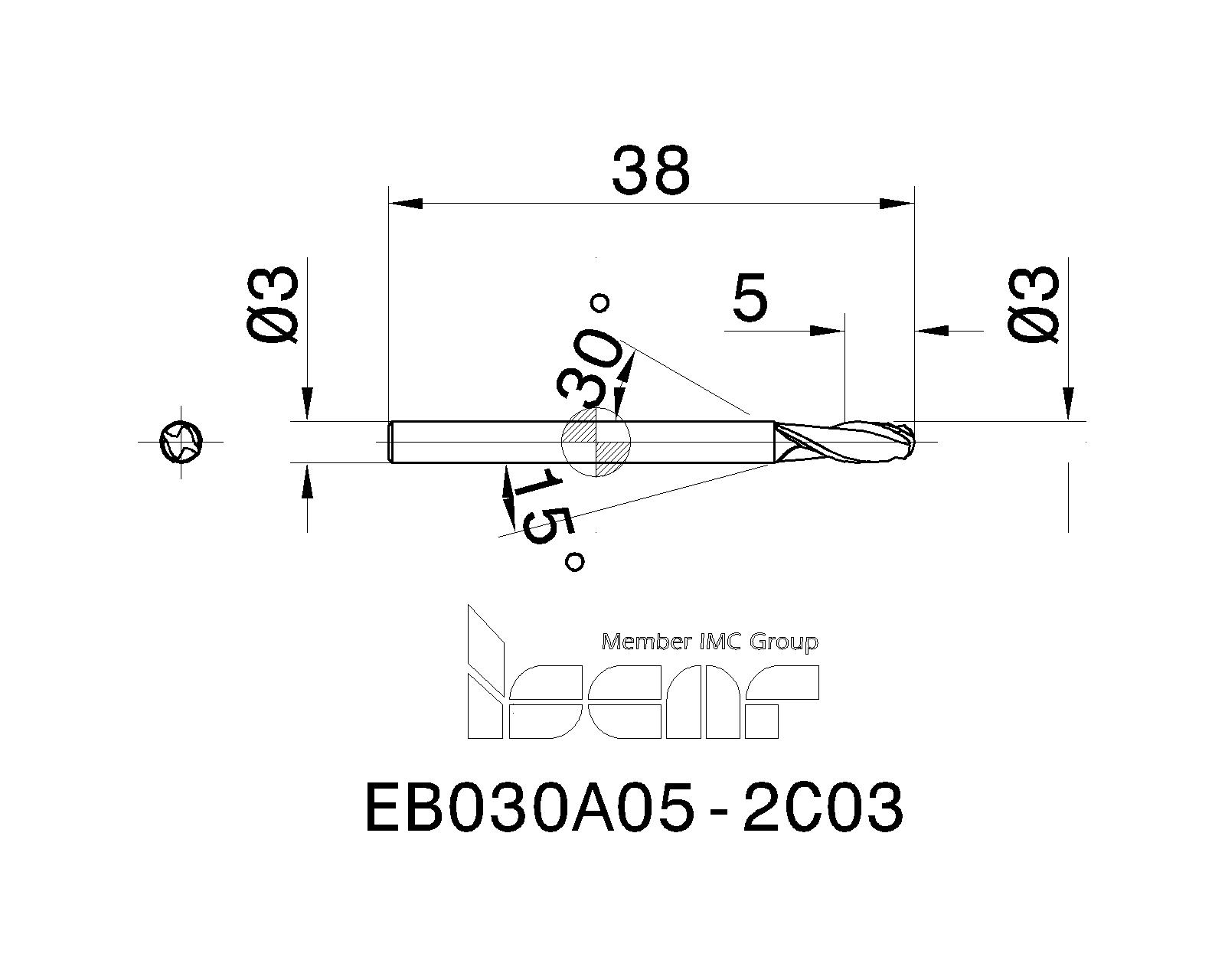

Item Designation: EB030A05-2C03

DC	DCONMS	APMX	OAL	NOF	FHA	Shank	RE	RMPX°	RETOLL	RETOLU	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	LU	ZEFF	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
3.00	3.00	5.00	38.00	2	30.0	C	1.50~	90.0~	-0.010	0.010	ZYL01F3000h$06~	~	0~	IC900 ~	R~	~	-~	2~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~		Superalloys and titanium~	Carbide~	AlTiN ~	5620656		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5620656	IC900	Alternative		1	0	808			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=5620656&cat=5620656&itemDesc=EB030A05-2C03"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'GTC', 'ItemPage');"></a>	<a href="javascript:OpenDxf('5620656', 'EB030A05-2C03' , 'IscarDxf' , '5620656-EB030A05-2C03');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5620656&itemDesc=EB030A05-2C03"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5620656&itemDesc=EB030A05-2C03"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>

Items Per Package : 1
Short and stable design for profiling (roughing).
