ISCAR Cutting Tools - Metal Working Tools - EBM-A-2 : 5621200

Geometry Checker ×

Family Designation: EBM-A-2

2 flute, 30° helix medium length solid carbide miniature ball nose endmills.

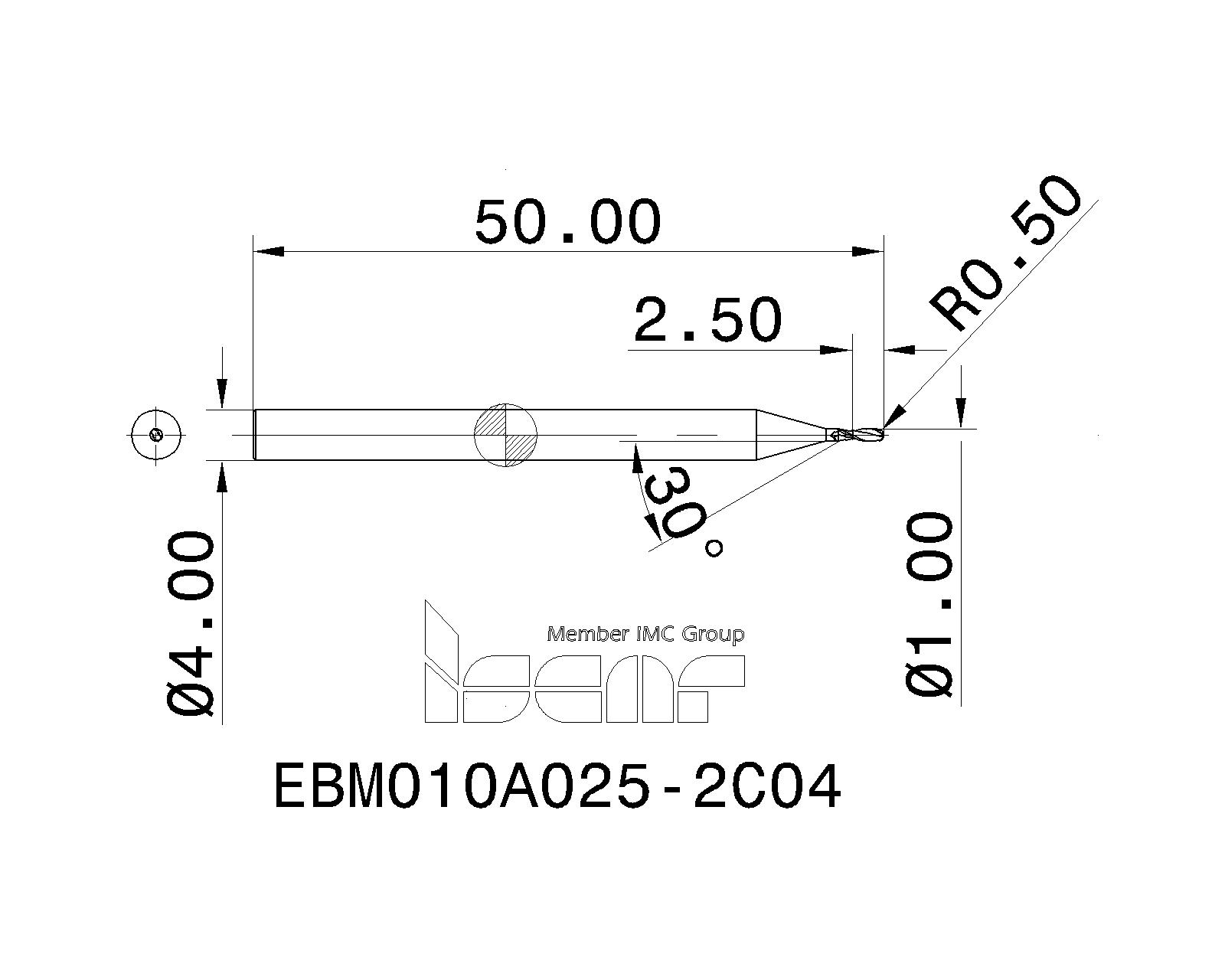

Item Designation: EBM010A025-2C04

DC	RE	DCONMS	APMX	OAL	NOF	FHA	Shank	Ft	Key	MINI	BMC	RETOLL	RETOLU		CCFMS	CCMS	CCTMS	ClssID	CNSC	COATP	CSP	CUBPMS	CXSC	CZCMS	DN	GRDMFG	GTC	HAND	ISCTMP	ISYC	KAPR	LH	LTA	LU	RMPX°	TCDCONMS	TCDCONWS	UST	ZEFF	ZEFP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
1.00	0.50	4.00	2.50	50.00	2	30.0	C	BALL NOSE~	C4~	All~	H~	0.000	0.004	0.00~	01~	ZYL01F4000h$06~	ZYL~	71E01A05D27A8~	0~	~	0~	F~	0~	4000~	~	IC08 ~	MILBNSS~	R~	GEMLS100020~	303-06~	~	~	30.00~	-~	90.0~	h6~	e8~	M~	2~	2~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN ~	5621200		3

Catalog No	Grade & Vc	Alternative	GISC	AvailEU	DXF	STPL	P21
3383875	IC902	Alternative	8	464	<a href="javascript:OpenDxf('3383875', 'EBM010A025-2C04' , 'IscarDxf' , '3383875-EBM010A025-2C04');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3383875&itemDesc=EBM010A025-2C04"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3383875&itemDesc=EBM010A025-2C04"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
5620596	IC900	Alternative	1	5488	<a href="javascript:OpenDxf('5620596', 'EBM010A025-2C04' , 'IscarDxf' , '5620596-EBM010A025-2C04');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5620596&itemDesc=EBM010A025-2C04"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5620596&itemDesc=EBM010A025-2C04"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
5621200	IC08	Alternative	1	3360	<a href="javascript:OpenDxf('5621200', 'EBM010A025-2C04' , 'IscarDxf' , '5621200-EBM010A025-2C04');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5621200&itemDesc=EBM010A025-2C04"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5621200&itemDesc=EBM010A025-2C04"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
Short and stable design for profiling (roughing)

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
