ISCAR Cutting Tools - Metal Working Tools - EC-E-3 : 5621208

Geometry Checker ×

Family Designation: EC-E-3

3 flute, 38° helix medium length solid carbide endmills.

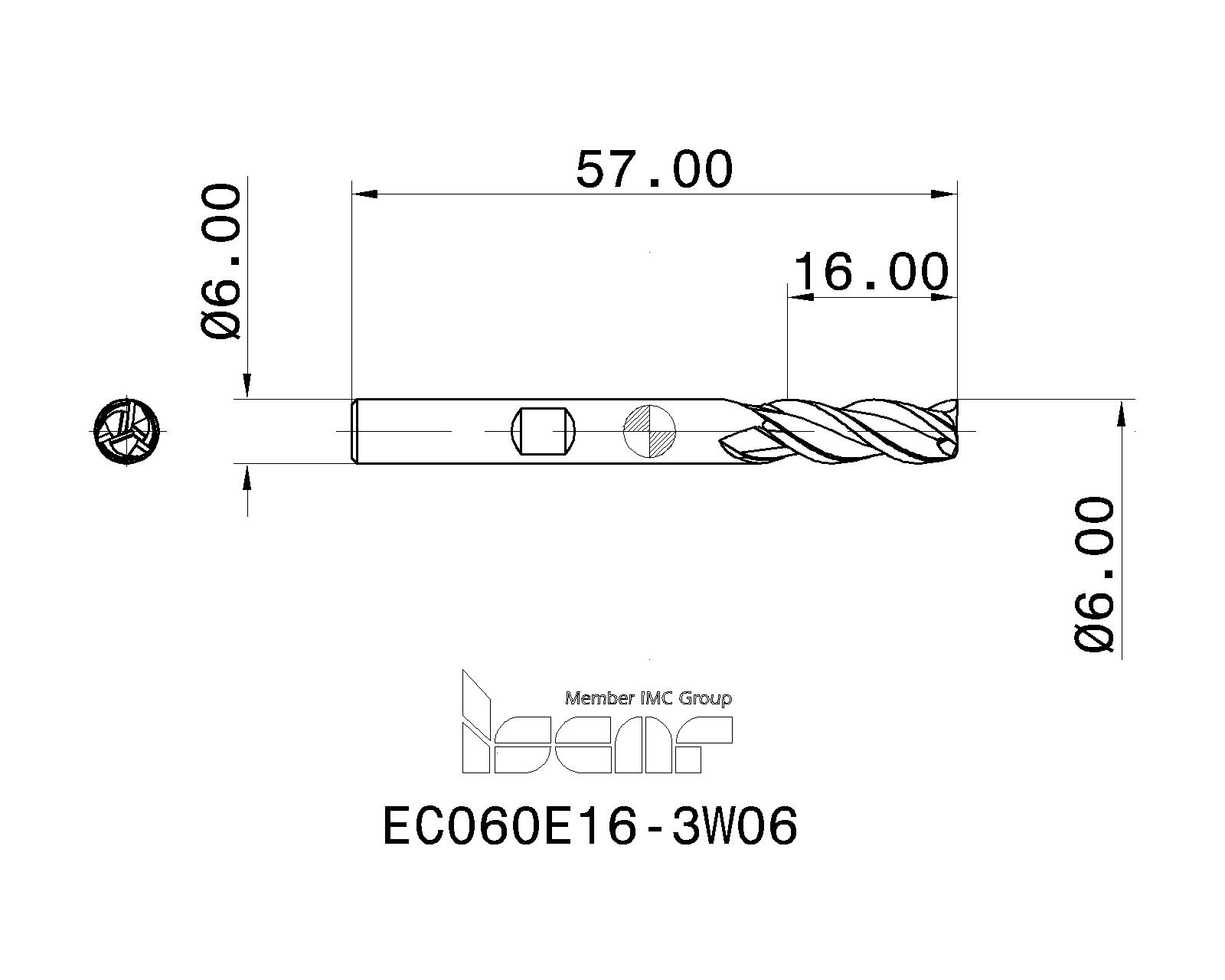

Item Designation: EC060E16-3W06

DC	DCONMS	APMX	OAL	NOF	FHA	RMPX°	Shank	fz (min)	fz (max)	DCX	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	LU	RE	ZEFF	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
6.00	6.00	16.00	57.00	3	38.0	5.0	W	0.03	0.07	6.00~	ZYL10F6000h$06~	~	0~	IC900 ~	R~	90.0~	-~	0.00~	3~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~		Superalloys and titanium~	Carbide~	AlTiN ~	5621208		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5621208	IC900	Alternative		1	0	800				<a href="javascript:OpenDxf('5621208', 'EC060E16-3W06' , 'IscarDxf' , '5621208-EC060E16-3W06');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5621208&itemDesc=EC060E16-3W06"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5621208&itemDesc=EC060E16-3W06"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
Multi-purpose endmill.
Suitable for deep slotting.
