Family Designation: ECR-T-M

4 flute, 20° helix medium length Solid carbide roughing endmills. Used for high stock removal rates on high temperature alloys (PH).

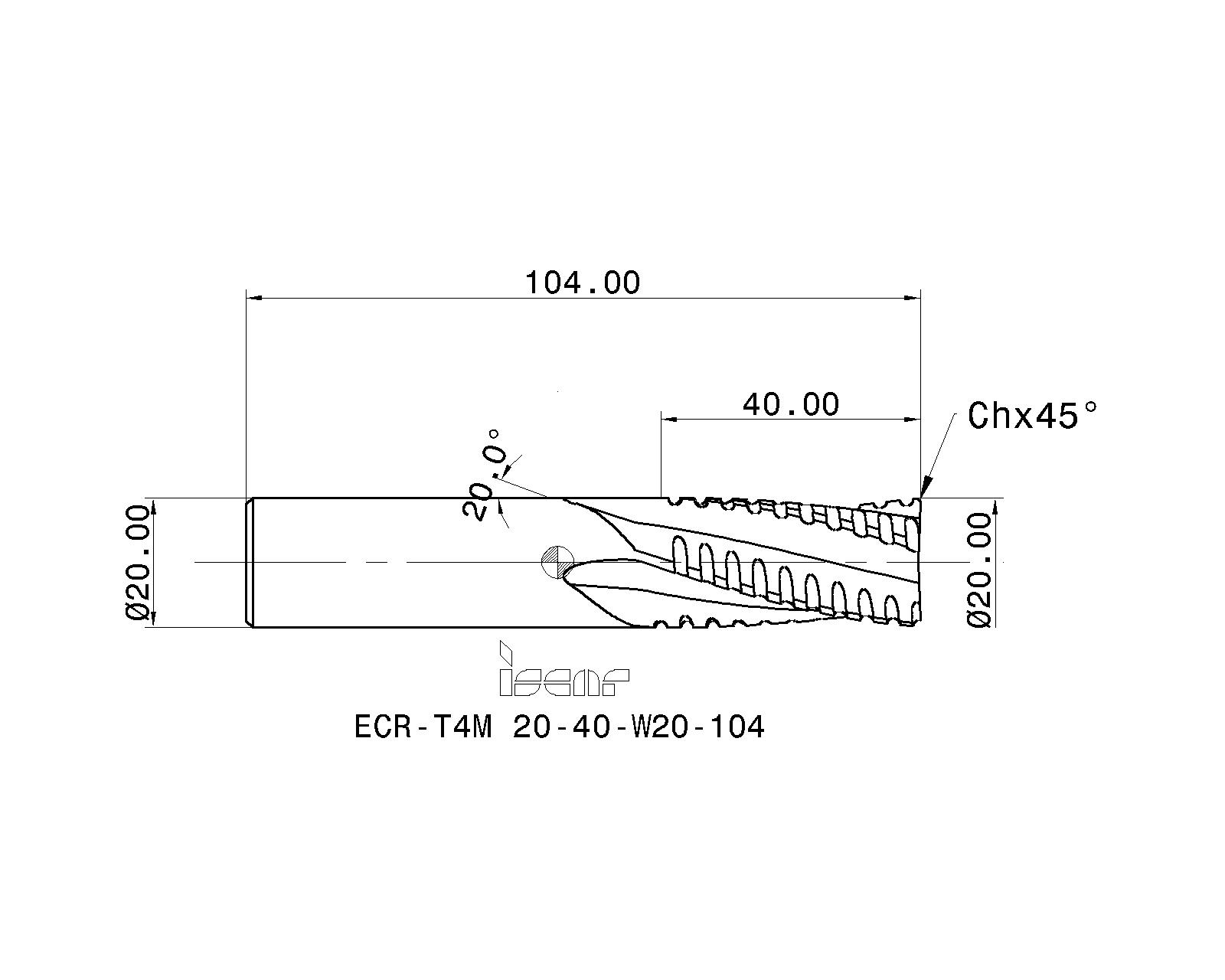

Item Designation: ECR-T4M 20-40-W20-104

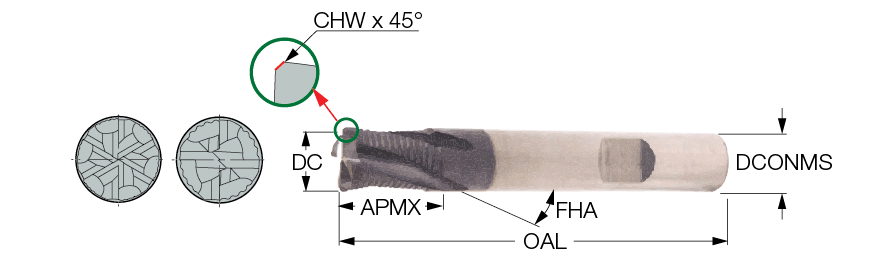

DC	DCONMS	APMX	OAL	NOF	FHA	RMPX°	Shank	fz (min)	fz (max)	CHW	DCX	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	KCH	LU	RE	ZEFF	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
20.00	20.00	40.00	104.00	4	20.0	5.0	W	0.05	0.11	0.50	20.00~	ZYL10G2000h$06~	~	0~	IC900 ~	R~	90.0~	45.0	-~	~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN ~	5621836		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5621836	IC900			3	0	16			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=5621836&cat=5621836&itemDesc=ECR-T4M 20-40-W20-104"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('5621836', 'ECR-T4M 20-40-W20-104' , 'IscarDxf' , '5621836-ECR-T4M 20-40-W20-104');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5621836&itemDesc=ECR-T4M 20-40-W20-104"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5621836&itemDesc=ECR-T4M 20-40-W20-104"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
