Family Designation: EFF-S2/S4/S6

High productivity solid carbide endmills. For cast iron, alloy and hardened steel up to 65 HRC stainless steel, titanium and nickel based alloys.

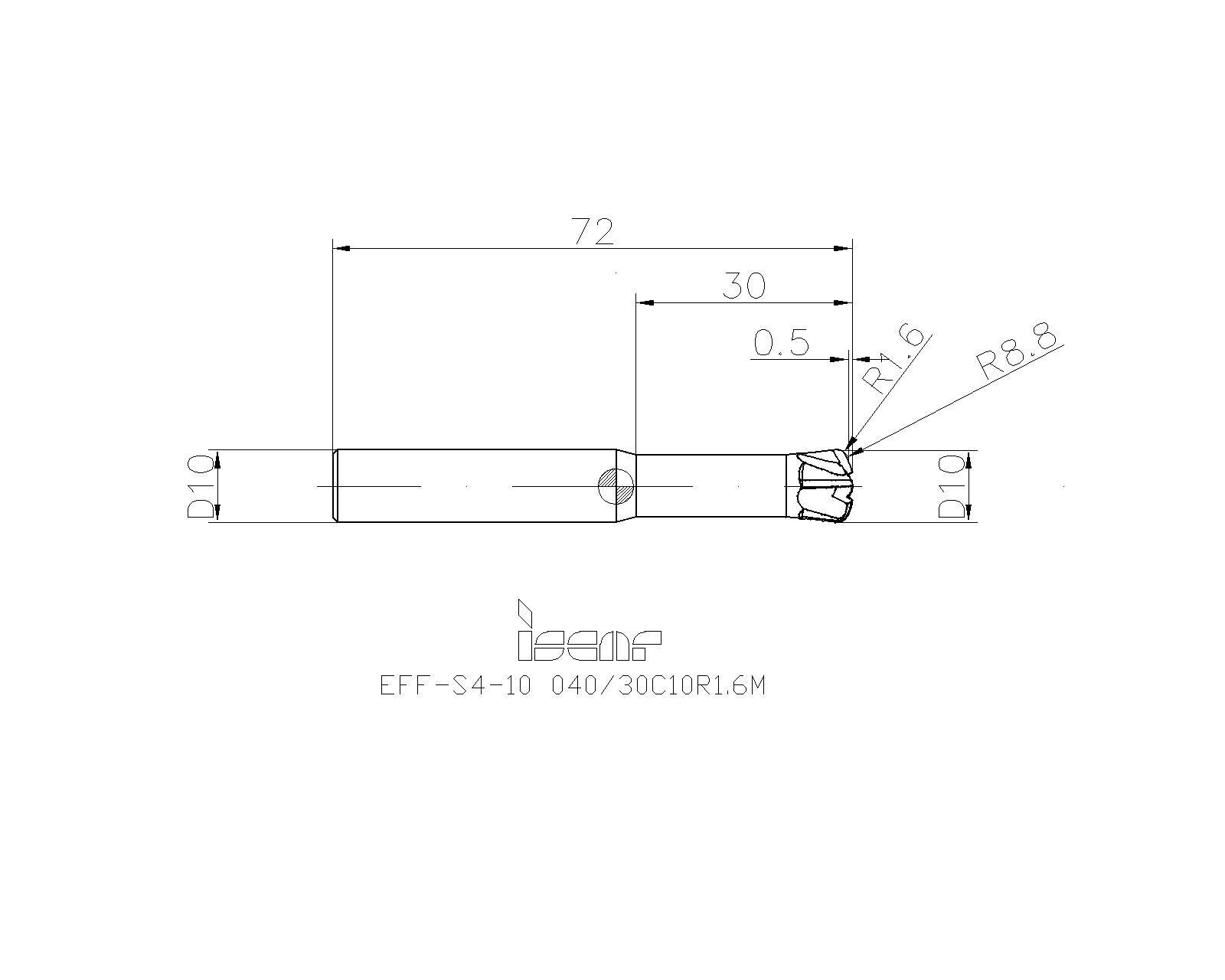

Item Designation: EFF-S4-10 040/30C10R1.6M

DC	DCX	DCONMS	OAL	NOF	LU	RE	PRFRAD	APMX	Shank	fz (min)	fz (max)	RMPX°	KAPR	CCMS	COATP	CSP	GRDMFG	HAND	ZEFF	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
10.00	10.00~	10.00	72.00	4	30.0	2.01	8.8	0.50	C	0.15	0.50	5.0~	20.0~	ZYL01G1000h$06~	~	0~	IC903 ~	R~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5622471		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5622471	IC903			1	16	1344			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=5622471&cat=5622471&itemDesc=EFF-S4-10 040/30C10R1.6M"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('5622471', 'EFF-S4-10 040/30C10R1.6M' , 'IscarDxf' , '5622471-EFF-S4-10 040 30C10R1.6M');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5622471&itemDesc=EFF-S4-10 040/30C10R1.6M"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5622471&itemDesc=EFF-S4-10 040/30C10R1.6M"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
