Family Designation: EFF-S2/S4/S6

High productivity solid carbide endmills. For cast iron, alloy and hardened steel up to 65 HRC stainless steel, titanium and nickel based alloys.

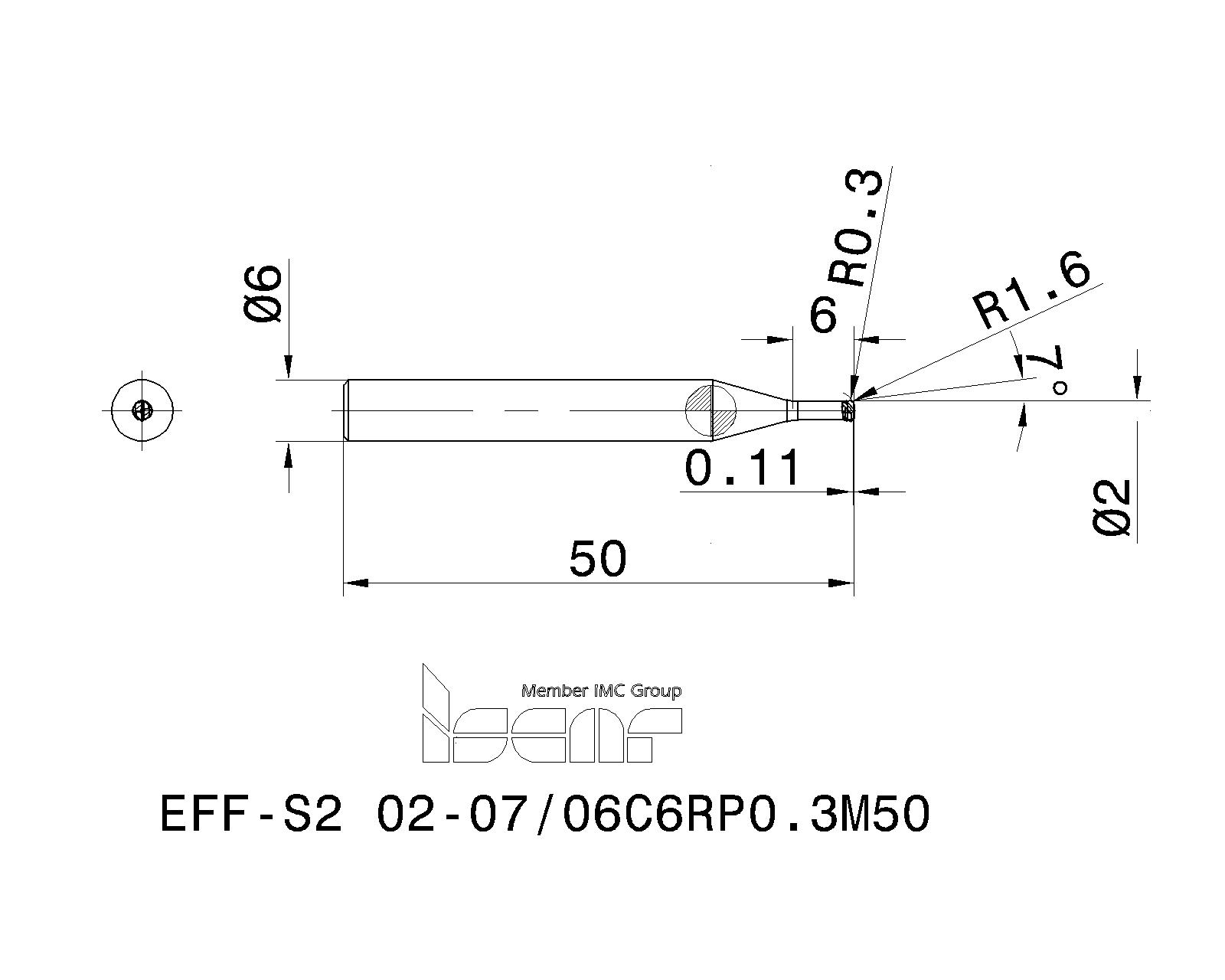

Item Designation: EFF-S2 02-07/06C6RP0.3M50

DC	DCX	DCONMS	OAL	NOF	LU	RE	PRFRAD	APMX	Shank	fz (min)	fz (max)	RMPX°	KAPR	CCMS	COATP	CSP	GRDMFG	HAND	ZEFF	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
2.00	2.00~	6.00	50.00	2	6.0	0.30	1.6	0.11	C	0.10	0.14	5.0~	20.0~	ZYL01F6000h$06~	~	0~	IC902 ~	R~	2~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5623188		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5623188	IC902			1	95	696			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=5623188&cat=5623188&itemDesc=EFF-S2 02-07/06C6RP0.3M50"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('5623188', 'EFF-S2 02-07/06C6RP0.3M50' , 'IscarDxf' , '5623188-EFF-S2 02-07 06C6RP0.3M50');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5623188&itemDesc=EFF-S2 02-07/06C6RP0.3M50"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5623188&itemDesc=EFF-S2 02-07/06C6RP0.3M50"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
