Family Designation: ECD-S2

Two flute chamfering, countersinking and spot drilling s olid carbide endmills.

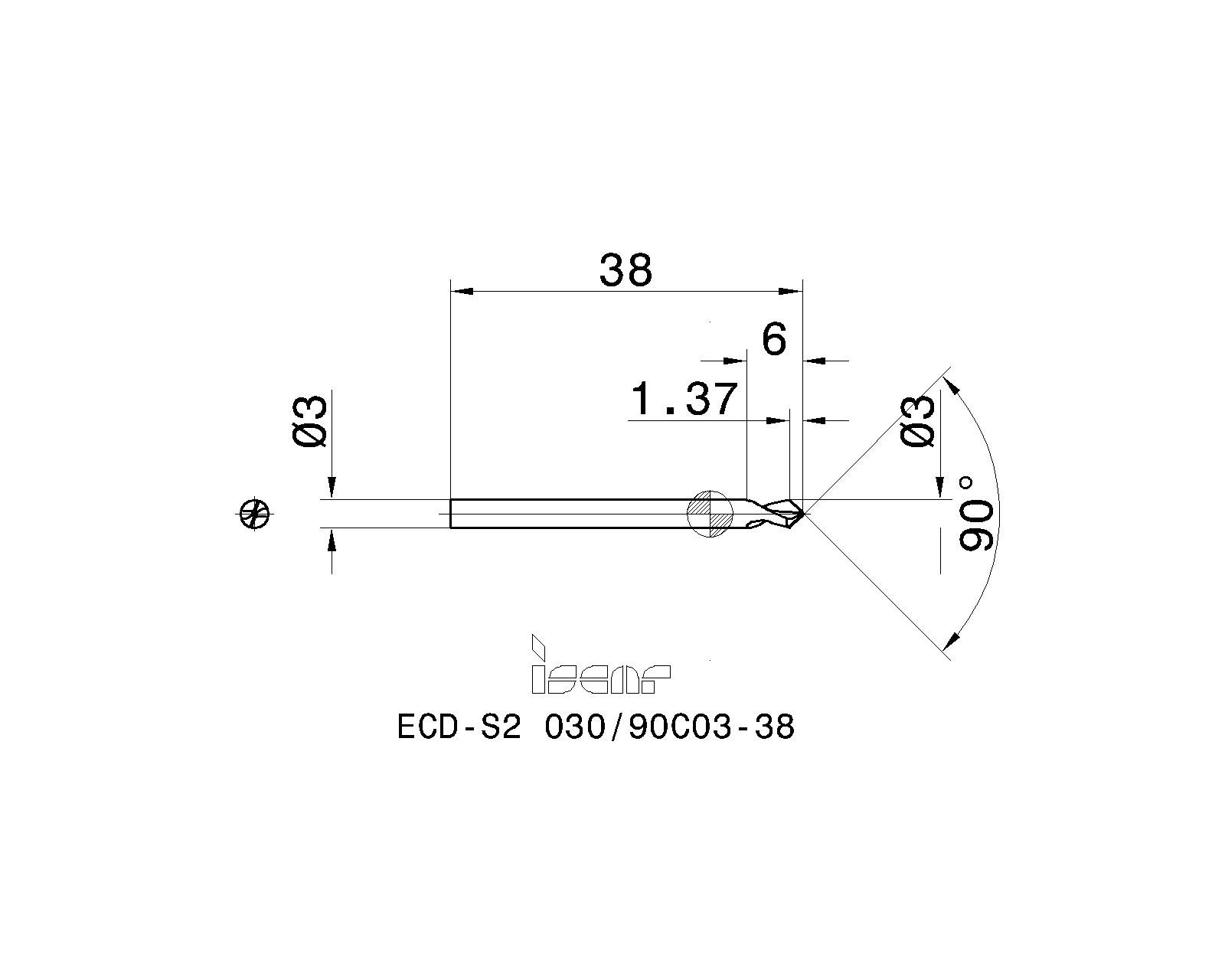

Item Designation: ECD-S2 030/90C03-38

DC	DCONMS	OAL	APMX	LU	NOF	Shank	SIG	CCMS	COATP	CSP	DCX	GRDMFG	HAND	KAPR	RE	RMPX°	ZEFF	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
3.00	3.00	38.00	1.37	6.00	2~	C	90	ZYL01F3000h$06~	~	0~	~	IC08 ~	R~	45.0~	~	~	2~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN ~	5623295		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5623288	IC08	Alternative		1	0	1016				<a href="javascript:OpenDxf('5623288', 'ECD-S2 030/90C03-38' , 'IscarDxf' , '5623288-ECD-S2 030 90C03-38');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5623288&itemDesc=ECD-S2 030/90C03-38"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5623288&itemDesc=ECD-S2 030/90C03-38"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
5623295	IC900			1	272	4024				<a href="javascript:OpenDxf('5623295', 'ECD-S2 030/90C03-38' , 'IscarDxf' , '5623295-ECD-S2 030 90C03-38');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5623295&itemDesc=ECD-S2 030/90C03-38"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5623295&itemDesc=ECD-S2 030/90C03-38"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
