Family Designation: EB-A2 (precision stub cut)

2 flute, 30° helix stub cut length high precision ball nose endmills with relieved necks for materials up to 65 HRC.

Hard Materials

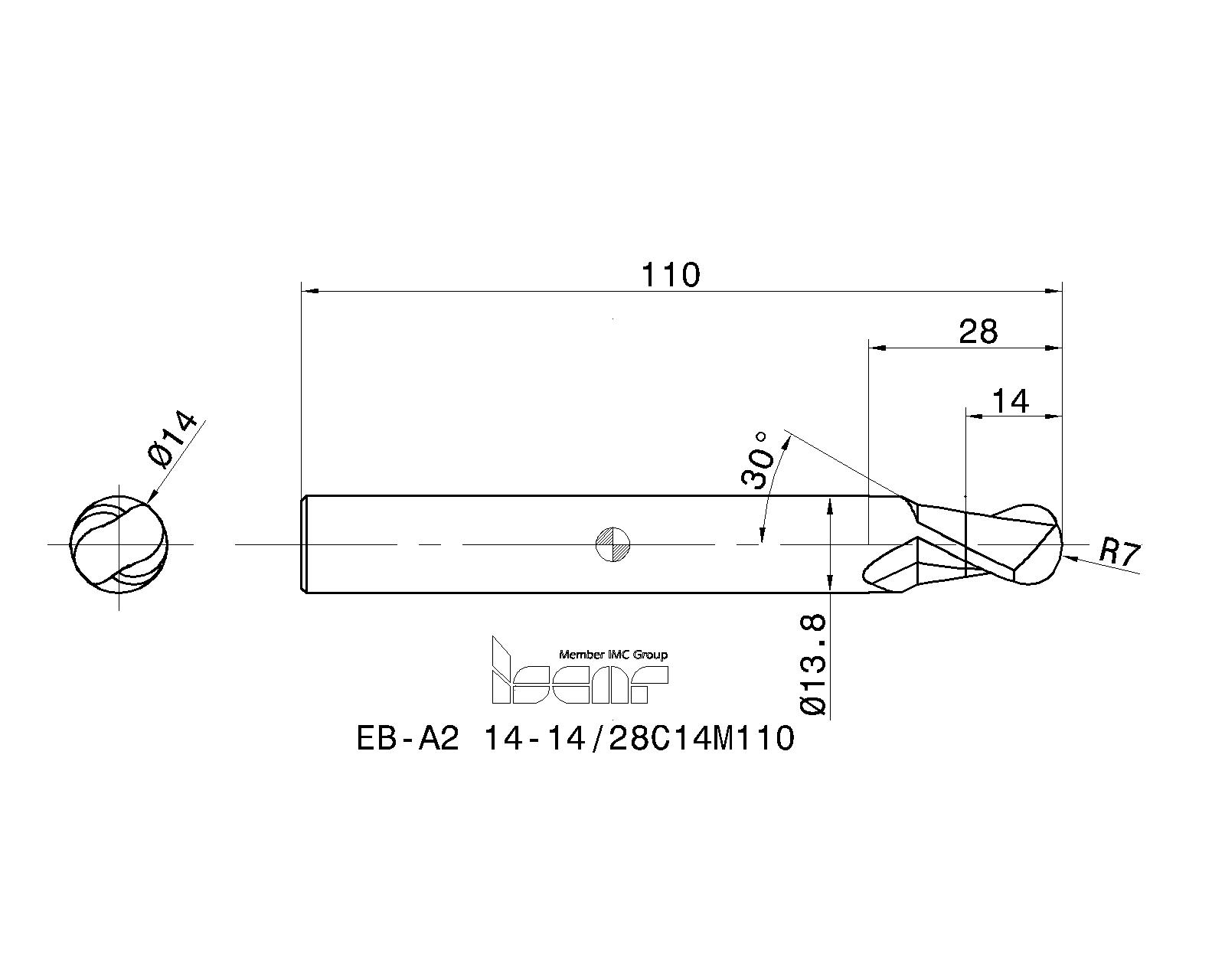

Item Designation: EB-A2 14-14/28C14M110

DC	RE	DCONMS	APMX	LU	OAL	DN	NOF	FHA	Shank	RETOLL	RETOLU	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	RMPX°	ZEFF	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
14.00	7.00	14.00	14.00	28.00	110.00	13.80	2	30.0	C	-0.012	0.012	ZYL01G1400h$06~	~	0~	IC903 ~	R~	~	90.0~	2~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5650073		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5650073	IC903			3	0	0				<a href="javascript:OpenDxf('5650073', 'EB-A2 14-14/28C14M110' , 'IscarDxf' , '5650073-EB-A2 14-14 28C14M110');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5650073&itemDesc=EB-A2 14-14/28C14M110"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5650073&itemDesc=EB-A2 14-14/28C14M110"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
