Family Designation: EC-A2 (medium length)

2 flute, 30° helix medium length solid carbide endmills for hard materials up to 65 HRC.

Hard Materials

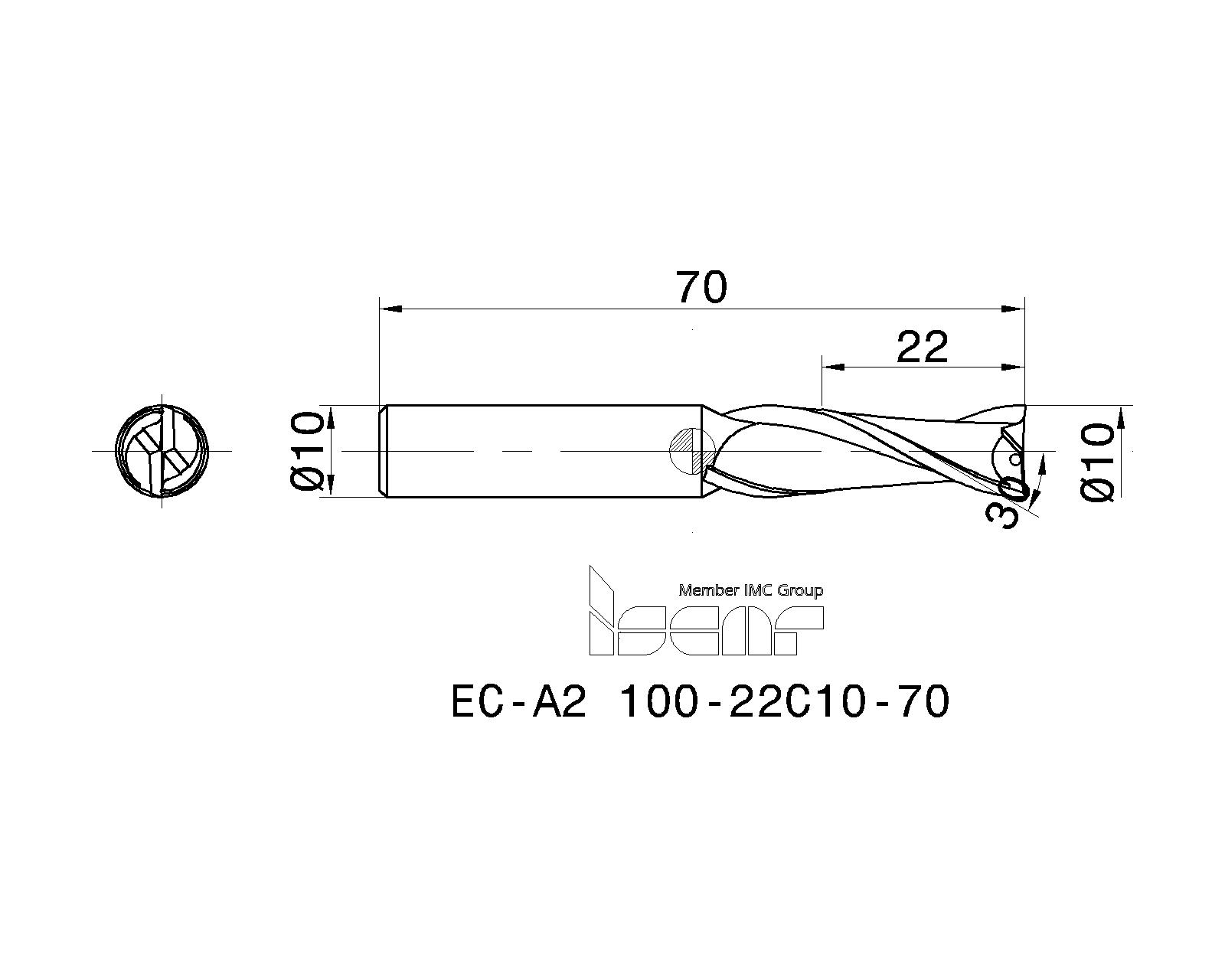

Item Designation: EC-A2 100-22C10-70

DC	DCONMS	APMX	OAL	NOF	FHA	RMPX°	Shank	fz (min)	fz (max)	DCX	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	LU	RE	ZEFF	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
10.00	10.00	22.00	70.00	2	30.0	5.0	C	0.03	0.10	10.00~	ZYL01G1000h$06~	~	0~	IC903 ~	R~	90.0~	-~	0.00~	2~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5650902		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5650902	IC903			1	0	96				<a href="javascript:OpenDxf('5650902', 'EC-A2 100-22C10-70' , 'IscarDxf' , '5650902-EC-A2 100-22C10-70');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5650902&itemDesc=EC-A2 100-22C10-70"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5650902&itemDesc=EC-A2 100-22C10-70"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
