ISCAR Cutting Tools - Metal Working Tools - EC-B3 (economical-short/medium) : 5651044

Geometry Checker ×

Family Designation: EC-B3 (economical-short/medium)

Economical type 3 flute, 45° helix, center cutting, short/medium length solid carbide endmills

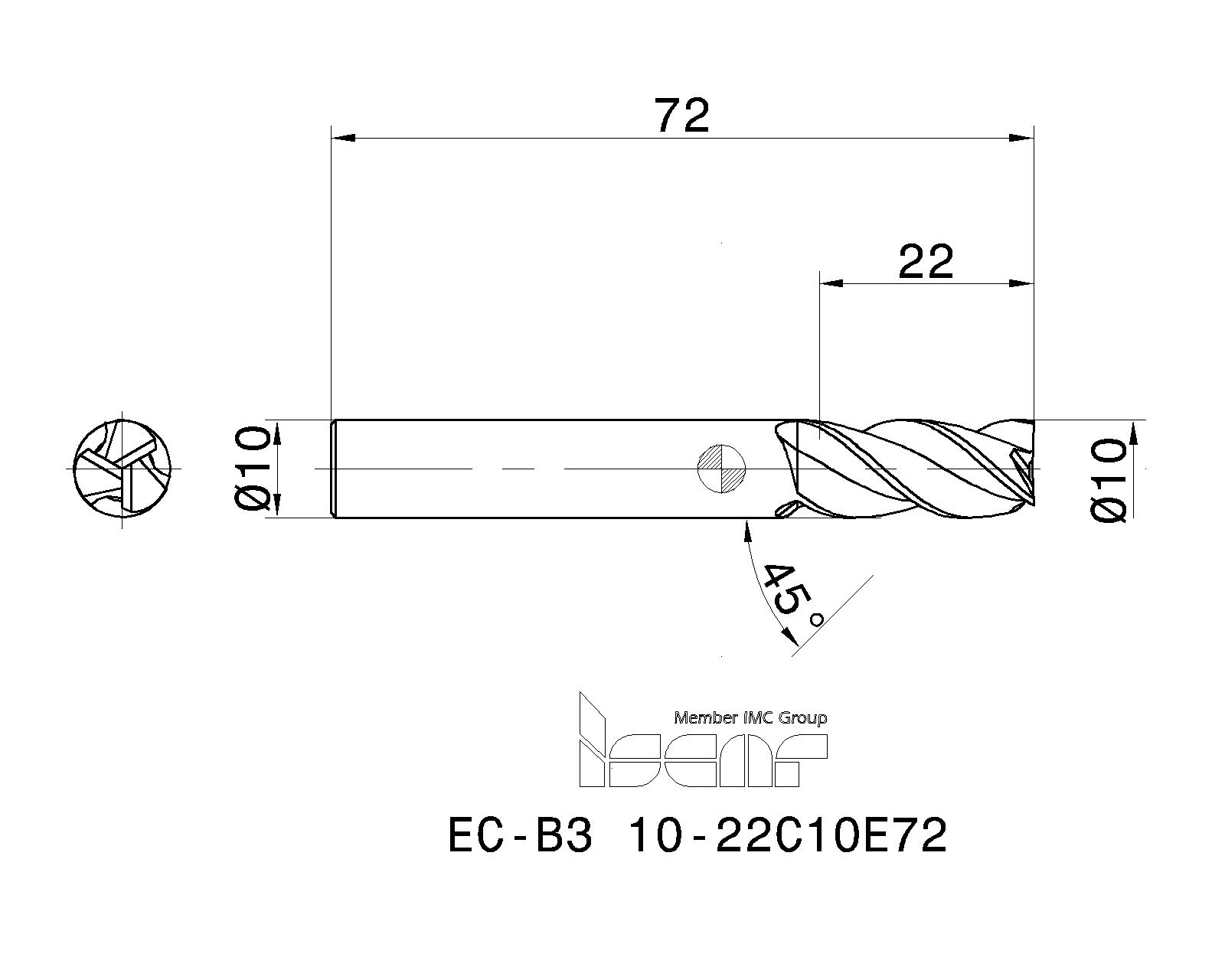

Item Designation: EC-B3 10-22C10E72

DC	DCONMS	APMX	OAL	NOF	FHA	RMPX°	Shank	fz (min)	fz (max)	DCX	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	ZEFF	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
10.00	10.00	22.00	72.00	3	45.0	5.0	C	0.03	0.10	10.00~	ZYL01G1000h$06~	~	0~	IC08 ~	R~	90.0~	3~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN ~	5651044		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5650990	IC08	Alternative		1	0	592				<a href="javascript:OpenDxf('5650990', 'EC-B3 10-22C10E72' , 'IscarDxf' , '5650990-EC-B3 10-22C10E72');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5650990&itemDesc=EC-B3 10-22C10E72"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5650990&itemDesc=EC-B3 10-22C10E72"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
5651044	IC900			1	0	2808				<a href="javascript:OpenDxf('5651044', 'EC-B3 10-22C10E72' , 'IscarDxf' , '5651044-EC-B3 10-22C10E72');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5651044&itemDesc=EC-B3 10-22C10E72"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5651044&itemDesc=EC-B3 10-22C10E72"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
