Family Designation: EC-A2 (economical-short/medium/extra long)

Economical type 2 flute, 30° helix center cutting, short/medium/extra long length solid carbide endmills.

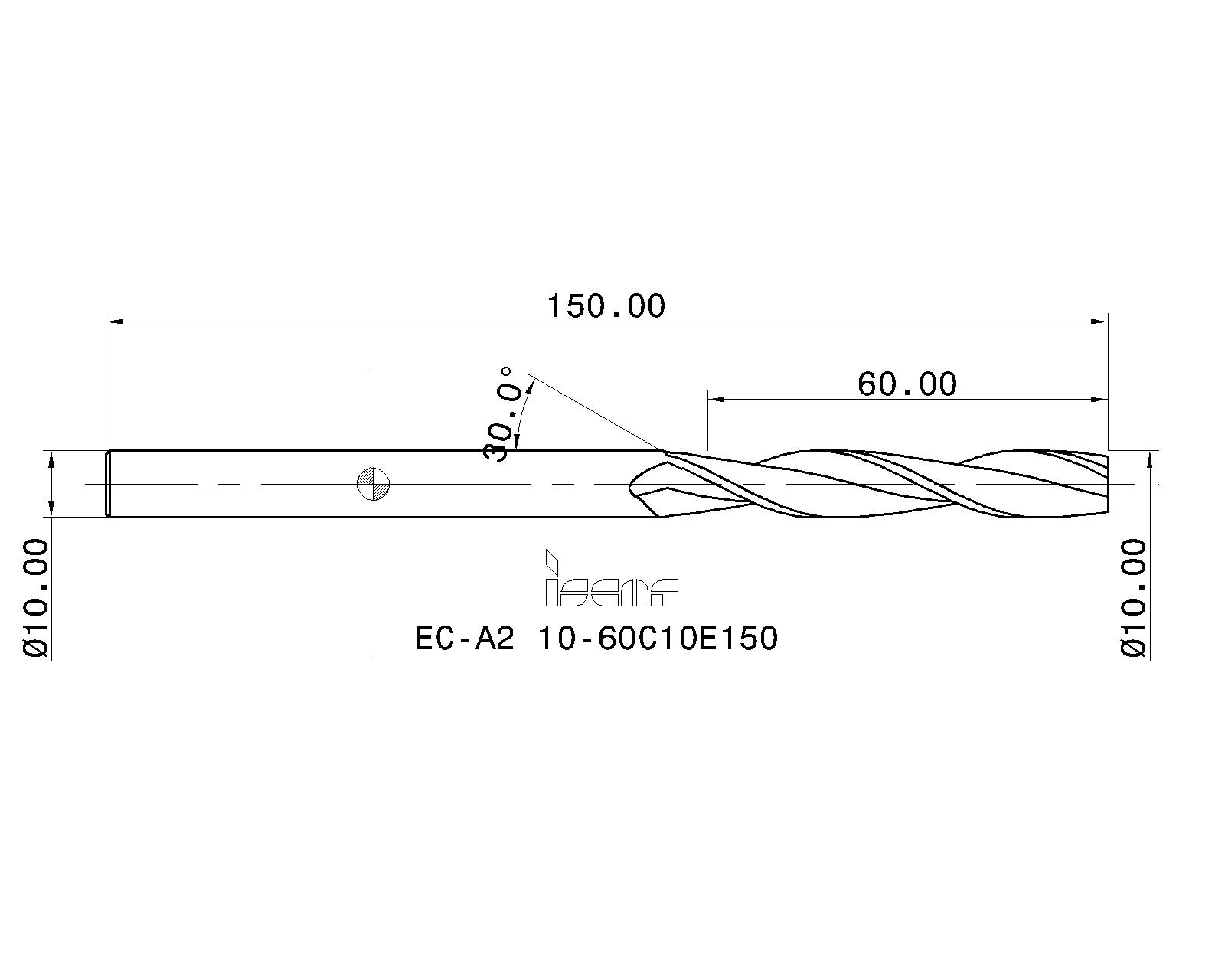

Item Designation: EC-A2 10-60C10E150

DC	DCONMS	APMX	OAL	NOF	FHA	RMPX°	Shank	fz (min)	fz (max)	DCX	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	ZEFF	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
10.00	10.00	60.00	150.00	2	30.0	5.0	C	0.03	0.10	10.00~	ZYL01G1000h$06~	~	0~	IC08 ~	R~	90.0~	2~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN ~	5651117		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5650498	IC08	Alternative		1	0	1888				<a href="javascript:OpenDxf('5650498', 'EC-A2 10-60C10E150' , 'IscarDxf' , '5650498-EC-A2 10-60C10E150');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5650498&itemDesc=EC-A2 10-60C10E150"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5650498&itemDesc=EC-A2 10-60C10E150"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
5651117	IC900	Alternative		1	0	320				<a href="javascript:OpenDxf('5651117', 'EC-A2 10-60C10E150' , 'IscarDxf' , '5651117-EC-A2 10-60C10E150');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5651117&itemDesc=EC-A2 10-60C10E150"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5651117&itemDesc=EC-A2 10-60C10E150"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
