ISCAR Cutting Tools - Metal Working Tools - EC-A2 (economical-short/medium/extra long) : 5651118

Geometry Checker ×

Family Designation: EC-A2 (economical-short/medium/extra long)

Economical type 2 flute, 30° helix center cutting, short/medium/extra long length solid carbide endmills.

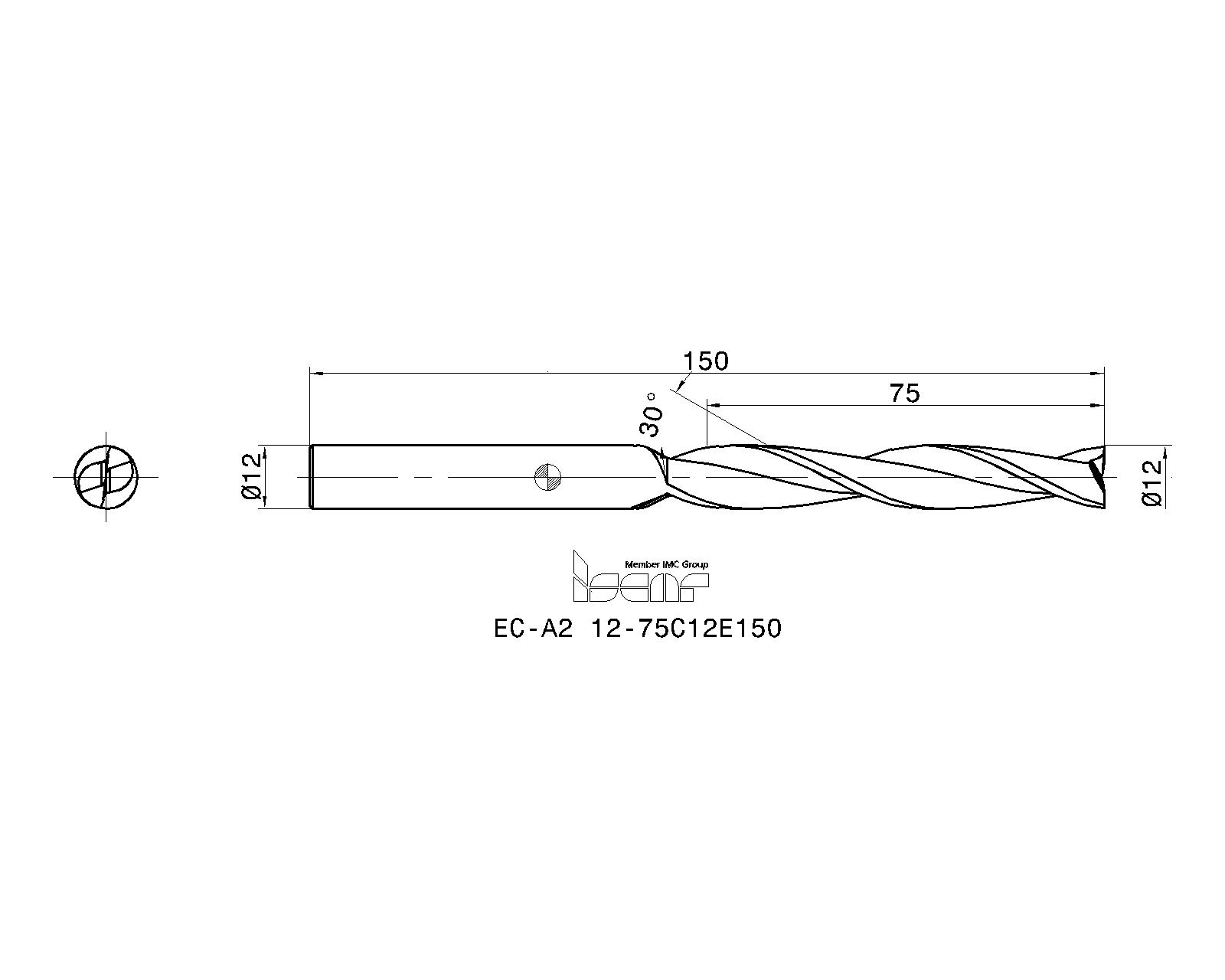

Item Designation: EC-A2 12-75C12E150

DC	DCONMS	APMX	OAL	NOF	FHA	RMPX°	Shank	fz (min)	fz (max)	DCX	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	ZEFF	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
12.00	12.00	75.00	150.00	2	30.0	5.0	C	0.04	0.11	12.00~	ZYL01G1200h$06~	~	0~	IC08 ~	R~	90.0~	2~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN ~	5651118		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5650499	IC08	Alternative		1	0	0				<a href="javascript:OpenDxf('5650499', 'EC-A2 12-75C12E150' , 'IscarDxf' , '5650499-EC-A2 12-75C12E150');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5650499&itemDesc=EC-A2 12-75C12E150"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5650499&itemDesc=EC-A2 12-75C12E150"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
5651118	IC900	Alternative		3	0	168				<a href="javascript:OpenDxf('5651118', 'EC-A2 12-75C12E150' , 'IscarDxf' , '5651118-EC-A2 12-75C12E150');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5651118&itemDesc=EC-A2 12-75C12E150"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5651118&itemDesc=EC-A2 12-75C12E150"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
