ISCAR Cutting Tools - Metal Working Tools - EC-B3 (economical-short/medium) : 5651175

Geometry Checker ×

Family Designation: EC-B3 (economical-short/medium)

Economical type 3 flute, 45° helix, center cutting, short/medium length solid carbide endmills

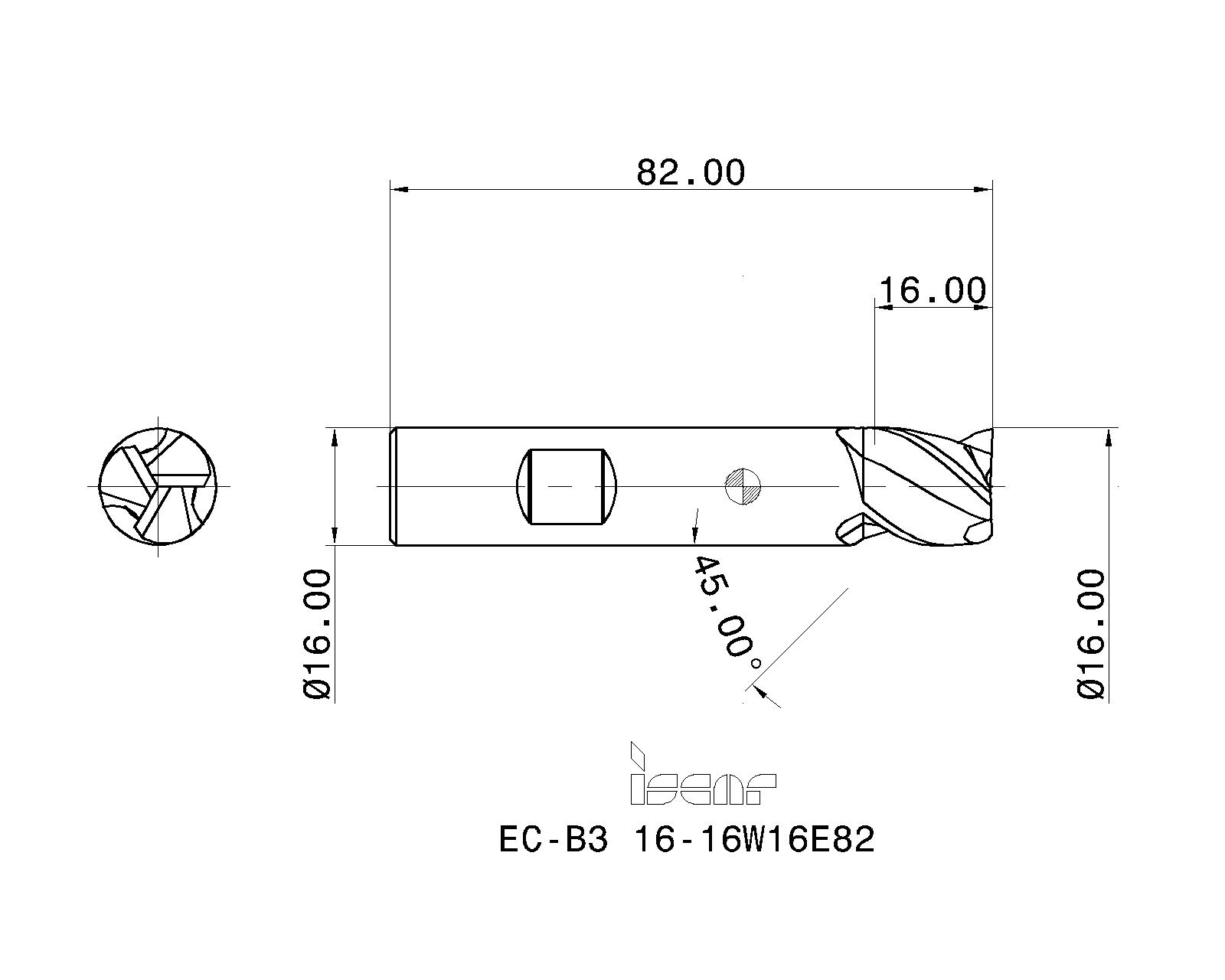

Item Designation: EC-B3 16-16W16E82

DC	DCONMS	APMX	OAL	NOF	FHA	RMPX°	Shank	Ft	Key	fz (min)	fz (max)	Mod	L group	BMC	DCX		CCFMS	CCMS	CCTMS	ClssID	CNSC	COATP	CSP	CUBPMS	CXSC	CZCMS	GRDMFG	GTC	HAND	ISCTMP	ISCTMP_2	ISYC	KAPR	LF	LTA	TCDCONMS	TCDCONWS	UST	ZEFF	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
16.00	16.00	16.00	82.00	3	45.0	5.0	W	90 DEG~	W16~	0.05	0.13	ML400~	short~	H~	16.00~	0.21~	10~	ZYL10G1600h$06~	ZYL~	71E01A05D27A8~	0~	~	0~	G~	0~	1600~	IC08 ~	MILSQS_MZYL10~	R~	GEMLS040020~	GEMLS010020~	303-02~	90.0~	58.00~	34.00~	h6~	h10~	M~	3~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN ~	5651175		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
5650997	IC08	Alternative		3	0	0				<a href="javascript:OpenDxf('5650997', 'EC-B3 16-16W16E82' , 'IscarDxf' , '5650997-EC-B3 16-16W16E82');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5650997&itemDesc=EC-B3 16-16W16E82"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5650997&itemDesc=EC-B3 16-16W16E82"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
5651175	IC900	Alternative		3	0	16				<a href="javascript:OpenDxf('5651175', 'EC-B3 16-16W16E82' , 'IscarDxf' , '5651175-EC-B3 16-16W16E82');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5651175&itemDesc=EC-B3 16-16W16E82"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5651175&itemDesc=EC-B3 16-16W16E82"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
