Family Designation: EB-A4 (economical-short)

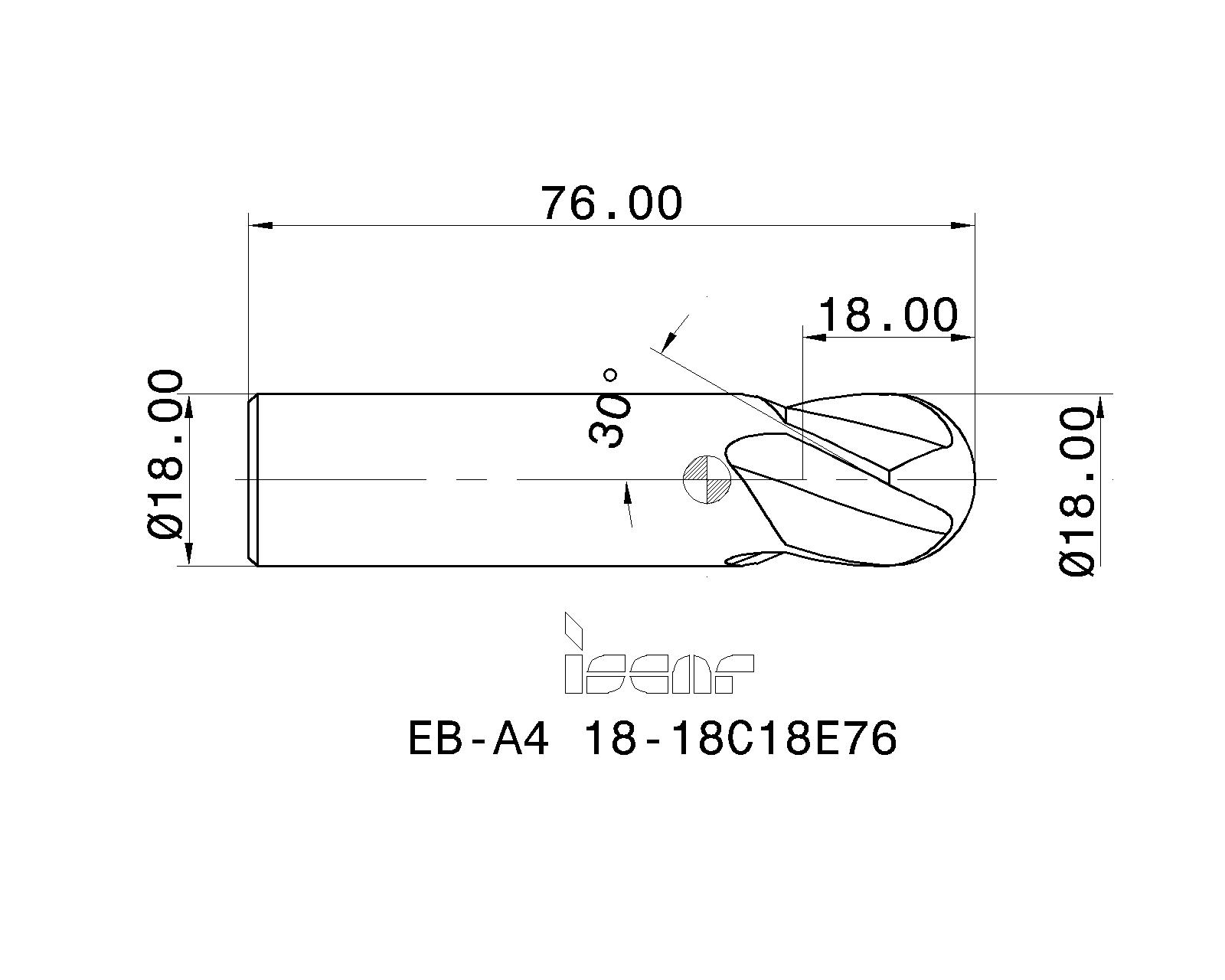

SOLIDECO - economical type 4 flute, 30° helix ball nose short solid carbide endmills.

Item Designation: EB-A4 18-18C18E76

DC	DCONMS	APMX	OAL	NOF	FHA	Shank	RETOLL	RETOLU	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	LU	RE	RMPX°	ZEFF	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
18.00	18.00	18.00	76.00	4	30.0	C	-0.012	0.012	ZYL01G1800h$06~	~	0~	IC08 ~	R~	~	-~	9.00~	90.0~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN ~	5667672		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5651069	IC900	Alternative		1	0	72				<a href="javascript:OpenDxf('5651069', 'EB-A4 18-18C18E76' , 'IscarDxf' , '5651069-EB-A4 18-18C18E76');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5651069&itemDesc=EB-A4 18-18C18E76"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5651069&itemDesc=EB-A4 18-18C18E76"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
5667672	IC08	Alternative		3	0	792				<a href="javascript:OpenDxf('5667672', 'EB-A4 18-18C18E76' , 'IscarDxf' , '5667672-EB-A4 18-18C18E76');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5667672&itemDesc=EB-A4 18-18C18E76"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5667672&itemDesc=EB-A4 18-18C18E76"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
