Family Designation: EC-E4L-CF

4 flute endmills with 38° helix, variable pitch for chatter free roughing and finishing operations. High material removal rates. Used for machining alloyed and stainless steel, titanium and exotic materials. Full slot milling - up to 2XD.

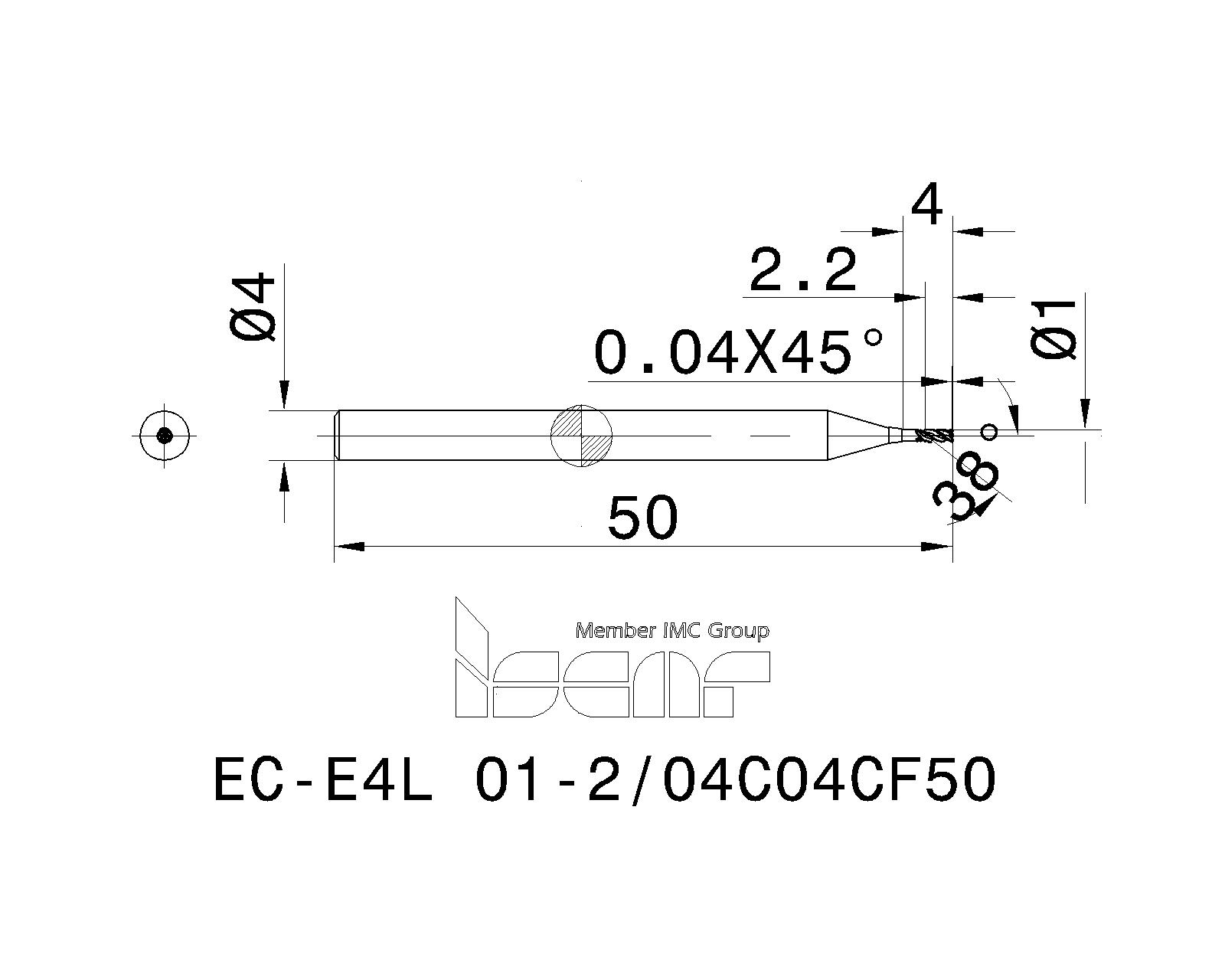

Item Designation: EC-E4L 01-2/04C04CF50

DC	DCONMS	APMX	LU	OAL	NOF	FHA	RMPX°	RE	Shank	CHW	KCH	fz (min)	fz (max)	DCX	CCMS	COATP	CSP	GRDMFG	HAND	KAPR	ZEFF	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
1.00	4.00	2.00	4.00	50.00	4	38.0	5.0	-	C	0.04	45.0	0.02	0.05	1.00~	ZYL01F4000h$06~	~	0~	IC900 ~	R~	90.0~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN ~	5669244		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5669244	IC900			1	0	1176				<a href="javascript:OpenDxf('5669244', 'EC-E4L 01-2/04C04CF50' , 'IscarDxf' , '5669244-EC-E4L 01-2 04C04CF50');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5669244&itemDesc=EC-E4L 01-2/04C04CF50"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5669244&itemDesc=EC-E4L 01-2/04C04CF50"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
IC300 should be used mainly for machining exotic materials.

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
