Milling
Main Application

Plunging & Recessing
Sub Application
Geometry Checker ×

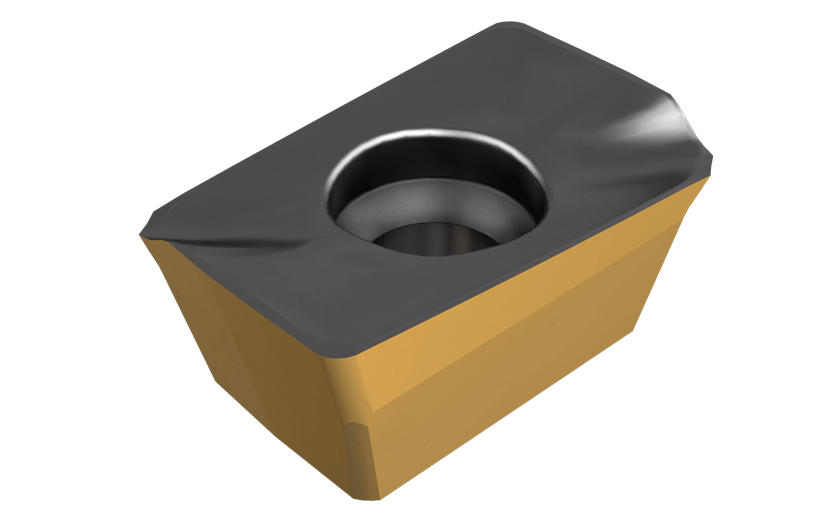

Family Designation: HM90 ADCT 1505 HELI2000, Helical cutting edged, high 90° shoulder accuracy and surface quality inserts. Used for general use applications.

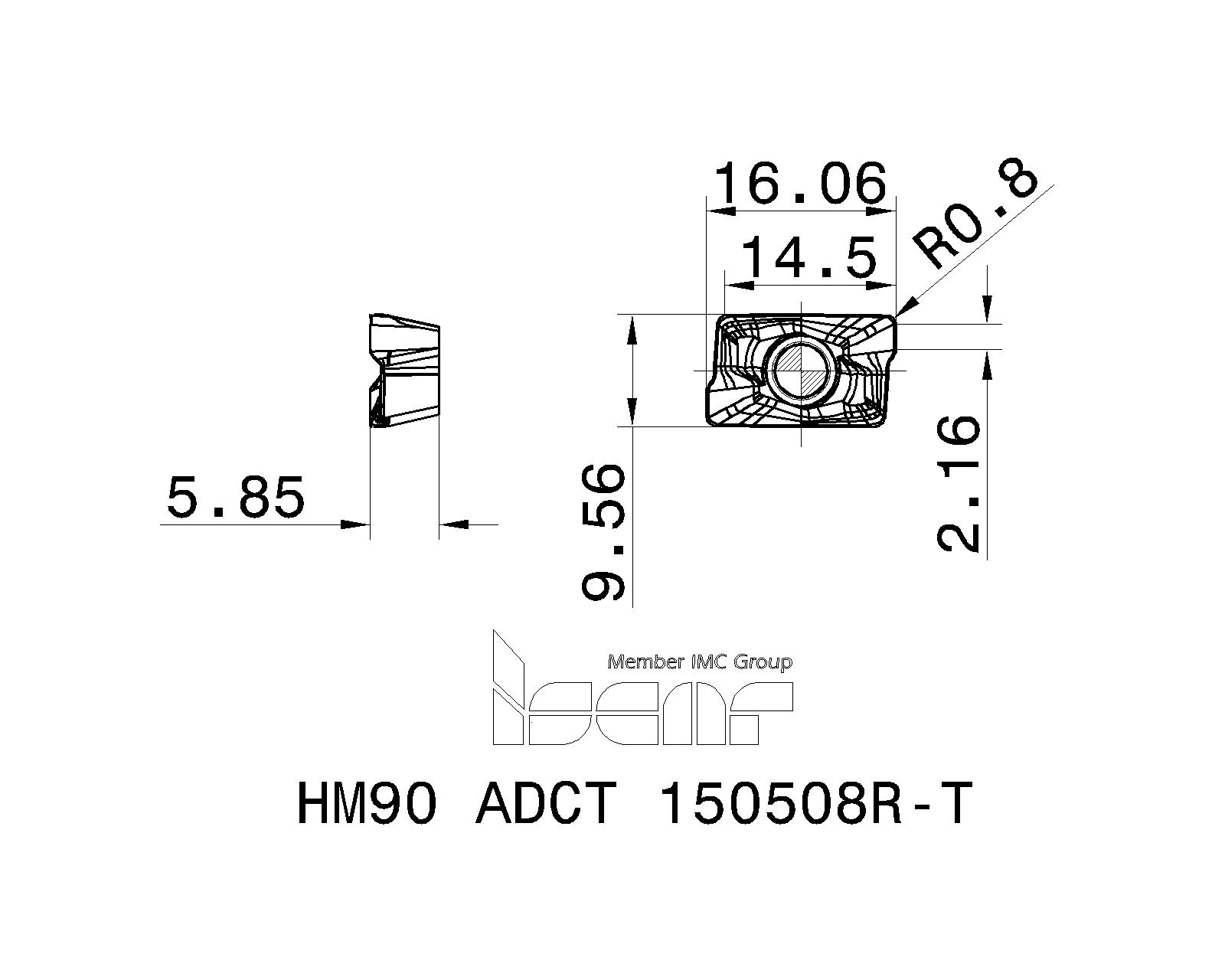

Item Designation: HM90 ADCT 150508R-T
W1 INSL APMX S RE BS Fig. fz
(min) 		fz
(max) 		CEDC HAND SC AN CBMD CNC COATP D1 GRDMFG IFS L LE NIS SSC  WEP ApplMat StaSteelCastIronHardMa SupTit CutEdMatCoating GICATGIREMgiic
9.6516.1812.005.850.802.1610.080.102~R~A~15.0~-~2~~~IC380 ~3~16.18~14.50~1~15~0~ Stainless Steel~ Hard Materials~Superalloys and titanium~Carbide~AlTiN+TiAlSiN+TiSiN ~5680107 2
Catalog NoGrade & VcAlternativeFiles PackageGISCAvailUSAAdd to favoritesP21 Properties FileAdd to AssemblyGTCStock Availability
   US        EU     E. Asia		STPP21StockPerUser
3309404 IC88280<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=3309404&cat=3309404&itemDesc=HM90 ADCT 150508R-T"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3309404&itemDesc=HM90 ADCT 150508R-T"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3309404&itemDesc=HM90 ADCT 150508R-T"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
5680107 IC380Alternative18000<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=5680107&cat=5680107&itemDesc=HM90 ADCT 150508R-T"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=5680107&itemDesc=HM90 ADCT 150508R-T"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a><a href="FilesDownload.aspx?FileType=P&cat=5680107&itemDesc=HM90 ADCT 150508R-T"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 10
For inserts with corner radii larger than 2.0 mm, the cutter body and seats should be modified
Inserts with corner radii larger than 0.8 mm should be used on ADK & SM tools only on the face of the cutter.
For a more economical insert refer to ADKT 1505PDR-HM in the ADKT 1505PDR family
