Family Designation: HM90 ADCT 1505 HELI2000, Helical cutting edged, high 90° shoulder accuracy and surface quality inserts. Used for general use applications.

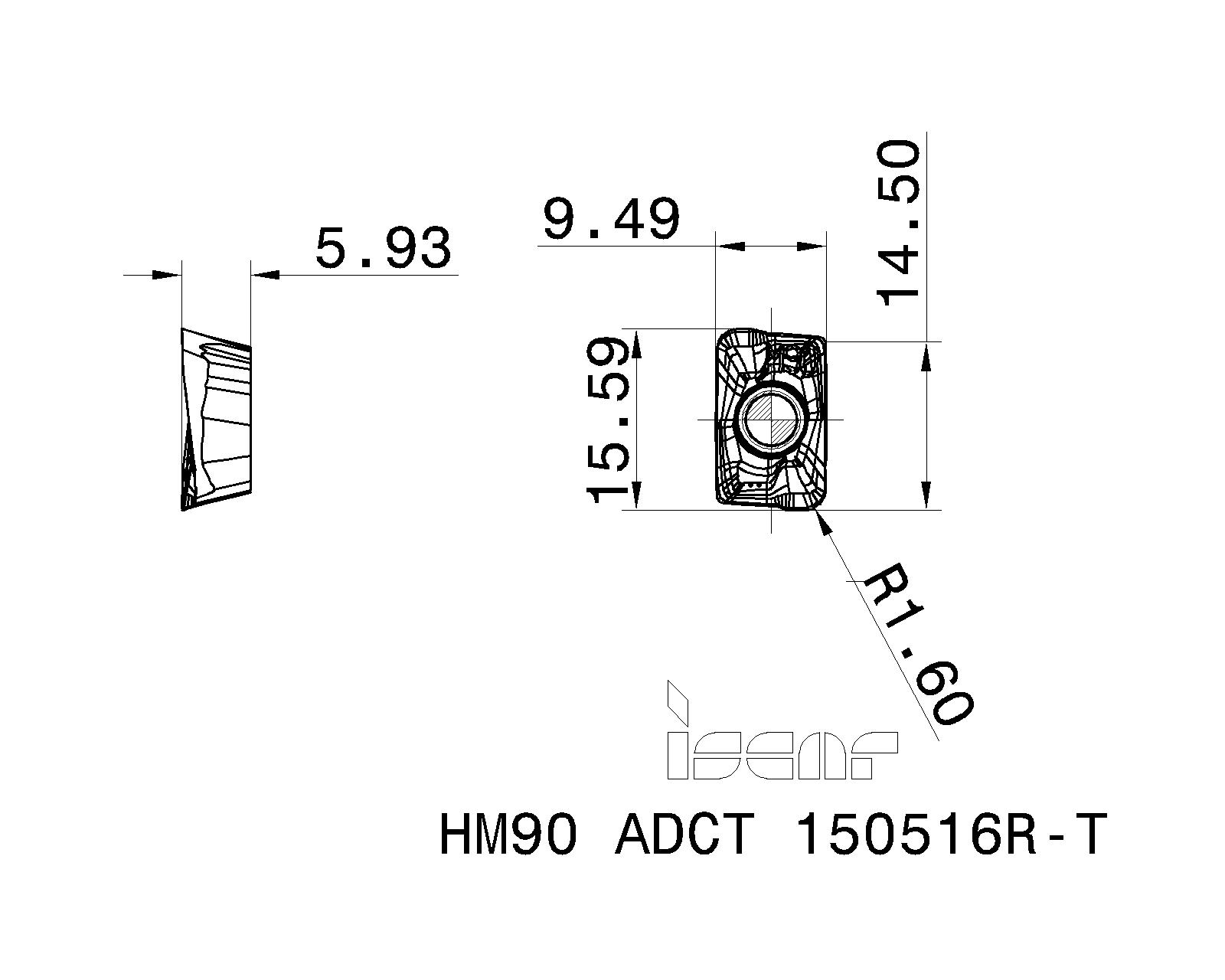

Item Designation: HM90 ADCT 150516R-T
W1 INSL APMX S RE BS Fig. fz
(min)
fz
(max)
CEDC HAND SC AN CBMD CNC COATP D1 GRDMFG IFS L LE NIS SSC  WEP ApplMat StaSteelCastIronHardMa SupTit CutEdMatCoating GICATGIREMgiic
9.6516.1812.005.851.601.3710.080.102~R~A~15.0~-~2~~~IC380 ~3~16.18~14.50~1~15~0~   Hard Materials~Superalloys and titanium~Carbide~TiCN+TiN ~5680264 1
Catalog NoGrade & VcAlternativeNEOITAFiles PackageAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
P21ITAStockPerUser
5680264 IC380Alternative01360<a href="javascript:OpenDxf('5680264', 'HM90 ADCT 150516R-T' , 'IscarDxf' , '5680264-HM90 ADCT 150516R-T');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=P&cat=5680264&itemDesc=HM90 ADCT 150516R-T"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a><a href="https://www.iscar.com/ITA?item=5680264&units=M&lang=EN" OnClick="writeToGoogleAnalytics('CatalogIconsClicks', 'ITA', 'ItemPage');" target="_blank"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
Items Per Package : 10
For inserts with corner radii larger than 2.0 mm, the cutter body and seats should be modified
Inserts with corner radii larger than 0.8 mm should be used on ADK & SM tools only on the face of the cutter.
For a more economical insert refer to ADKT 1505PDR-HM in the ADKT 1505PDR family
