Family Designation: HM90 ADCT 1505

HELI2000, Helical cutting edged, high 90° shoulder accuracy and surface quality inserts. Used for general use applications.

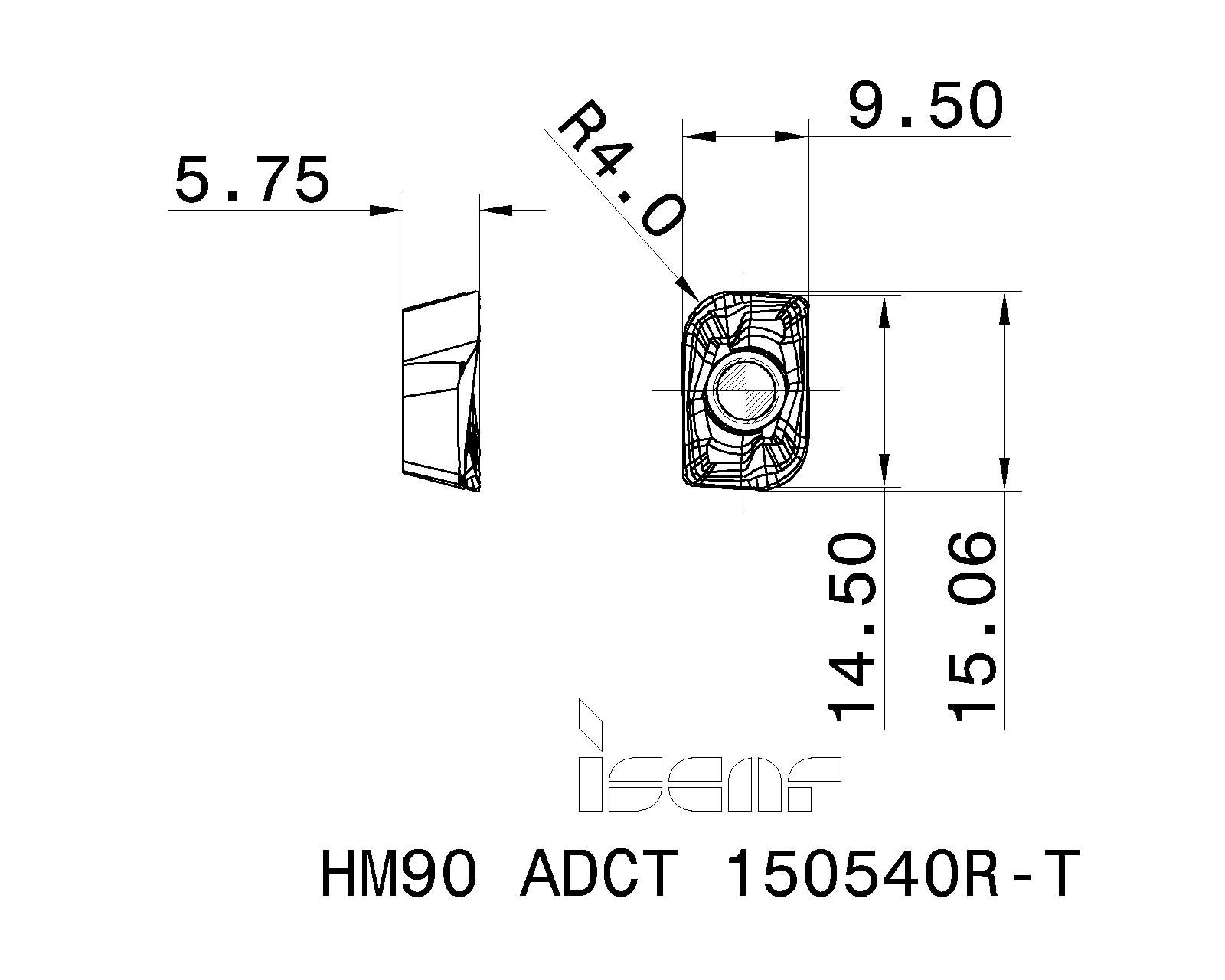

Item Designation: HM90 ADCT 150540R-T

W1	INSL	APMX	S	RE	BS	Fig.	fz (min)	fz (max)	CEDC	HAND	SC	AN	CBMD	CNC	COATP	D1	GRDMFG	IFS	L	LE	NIS	SSC	WEP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
9.65	16.18	12.00	5.85	4.00	-	1	0.08	0.10	2~	R~	A~	15.0~	-~	2~	~	~	IC380 ~	3~	16.18~	14.50~	1~	15~	0~				Hard Materials~	Superalloys and titanium~	Carbide~	TiCN+TiN ~	5680634		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	Add to favorites	P21 Properties File	Add to Assembly	GTC	Stock Availability US EU E. Asia	STP	P21	StockPerUser
5680634 **	IC380	Alternative		9	0				<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=5680634&cat=5680634&itemDesc=HM90 ADCT 150540R-T"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=5680634&itemDesc=HM90 ADCT 150540R-T"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5680634&itemDesc=HM90 ADCT 150540R-T"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 10
(**) Requires a price and delivery time quotation
For inserts with corner radii larger than 2.0 mm, the cutter body and seats should be modified
Inserts with corner radii larger than 0.8 mm should be used on ADK & SM tools only on the face of the cutter.
For a more economical insert refer to ADKT 1505PDR-HM in the ADKT 1505PDR family
