Family Designation: EFP-E4,5CF

4, 5 flute 38° helix, solid carbide roughing endmills with chip splitting cutting edges, variable pitch (CHATTERFREE) and large radius front edge for high feed rates (FEEDMILL).

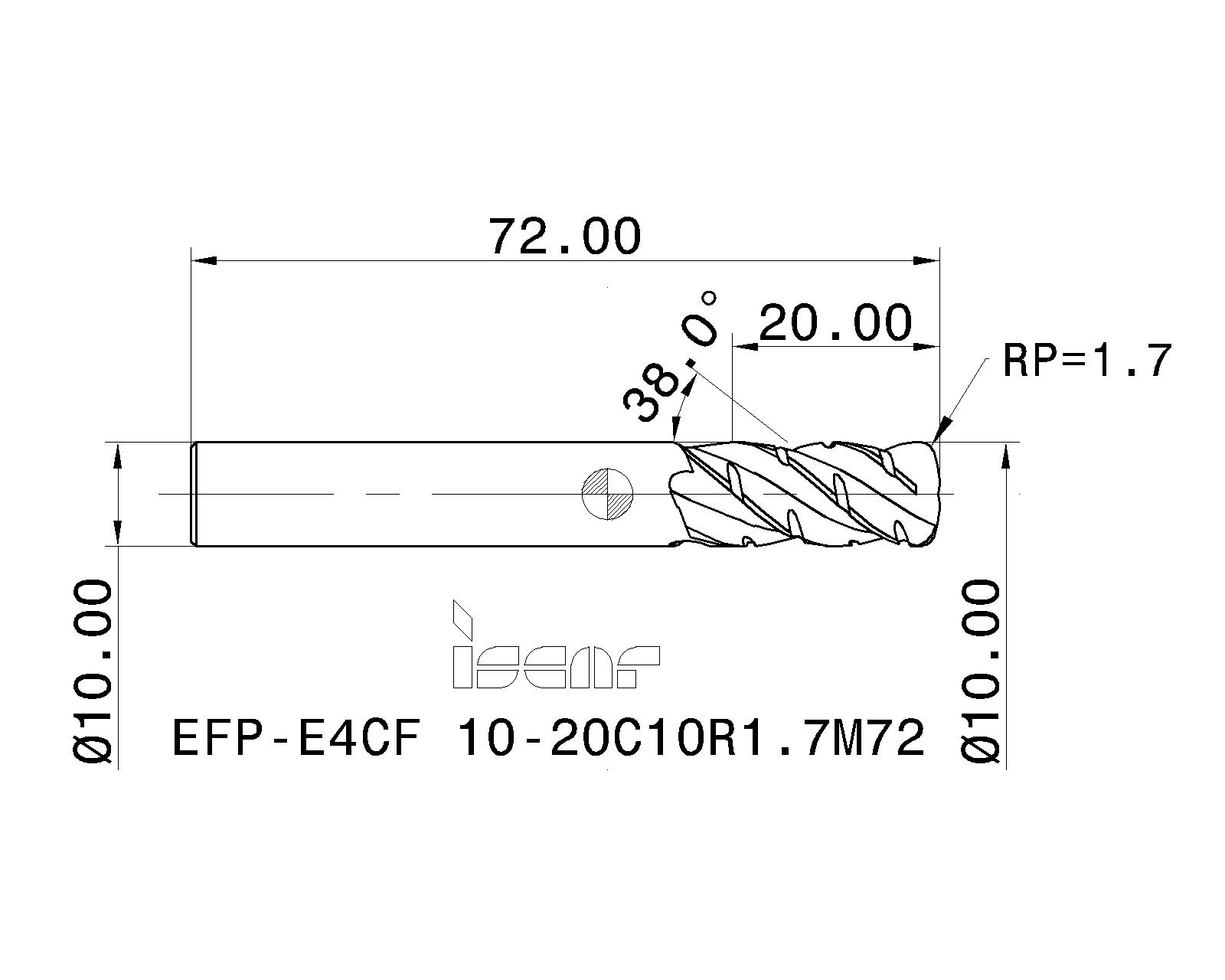

Item Designation: EFP-E4CF 10-20C10R1.7M72

DC	DCONMS	OAL	RE	NOF	FHA	APMX_2	LU	RMPX°	Shank	fz (min)	fz (max)	KAPR	DCX	CCMS	COATP	CSP	GRDMFG	HAND	ZEFF	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
10.00	10.00	72.00	1.70	4	38.0	0.50	20.00	5.0	C	0.03	0.50	20.0~	10.00~	ZYL01G1000h$06~	~	0~	IC903 ~	R~	4~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	5682655		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	GTC	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
5682655	IC903			1	0	20			<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=0&stplFolder=STPL&p21=5682655&cat=5682655&itemDesc=EFP-E4CF 10-20C10R1.7M72"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="javascript:OpenDxf('5682655', 'EFP-E4CF 10-20C10R1.7M72' , 'IscarDxf' , '5682655-EFP-E4CF 10-20C10R1.7M72');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5682655&itemDesc=EFP-E4CF 10-20C10R1.7M72"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5682655&itemDesc=EFP-E4CF 10-20C10R1.7M72"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1

3D Representation	Light Detailed	Not Available 3D Required

2D Representation	ISO	2D Required
