Family Designation: APCT 1003PDR-HM

HELIMILL inserts with 2 helical precision ground cutting edges. Used for high accuracy finishing.

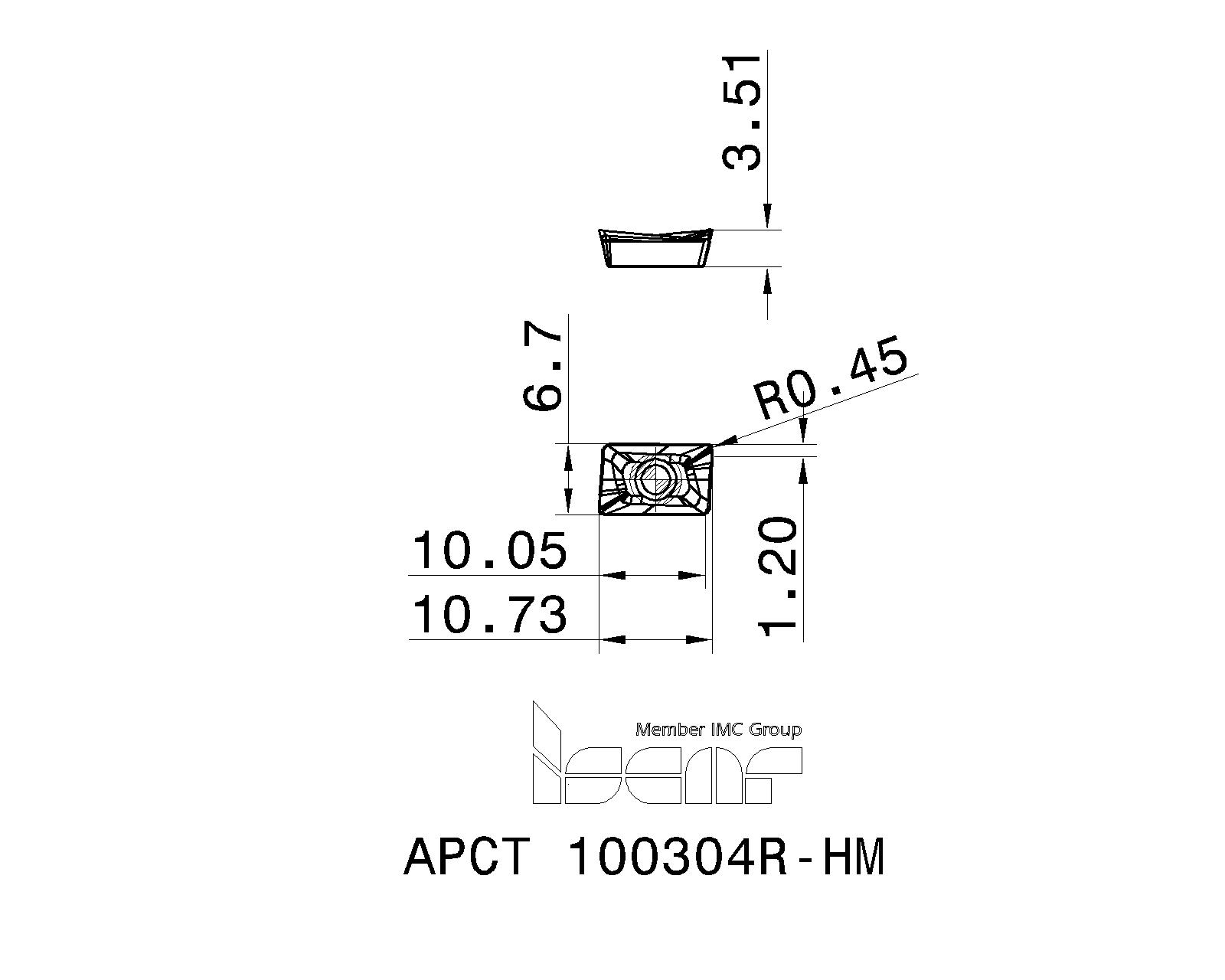

Item Designation: APCT 100304R-HM

W1	RE	INSL	S	APMX	BS	fz (min)	fz (max)	Fig.	CEDC	HAND	SC	AN	CBMD	CNC	COATP	D1	GRDMFG	IFS	L	LE	NIS	SSC	WEP	ApplMat	StaSteel	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
6.70	0.45	10.95	3.51	9.80	1.20	0.07	0.12	1	2~	~	A~	11.0~	-~	2~	~	~	IC328 ~	3~	10.95~	10.05~	1~	10~	0~	Steel~	Stainless Steel~		Superalloys and titanium~	Carbide~	TiCN ~	5695677		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	Add to favorites	P21 Properties File	Add to Assembly	GTC	Stock Availability US EU E. Asia	STP	P21	StockPerUser
5695677	IC328	Alternative		1	3840				<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=5695677&cat=5695677&itemDesc=APCT 100304R-HM"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=5695677&itemDesc=APCT 100304R-HM"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5695677&itemDesc=APCT 100304R-HM"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 10
