Family Designation: EC/ECC-A-2

2 flute, 30 and 45° helix medium length solid carbide slot / drill endmills.

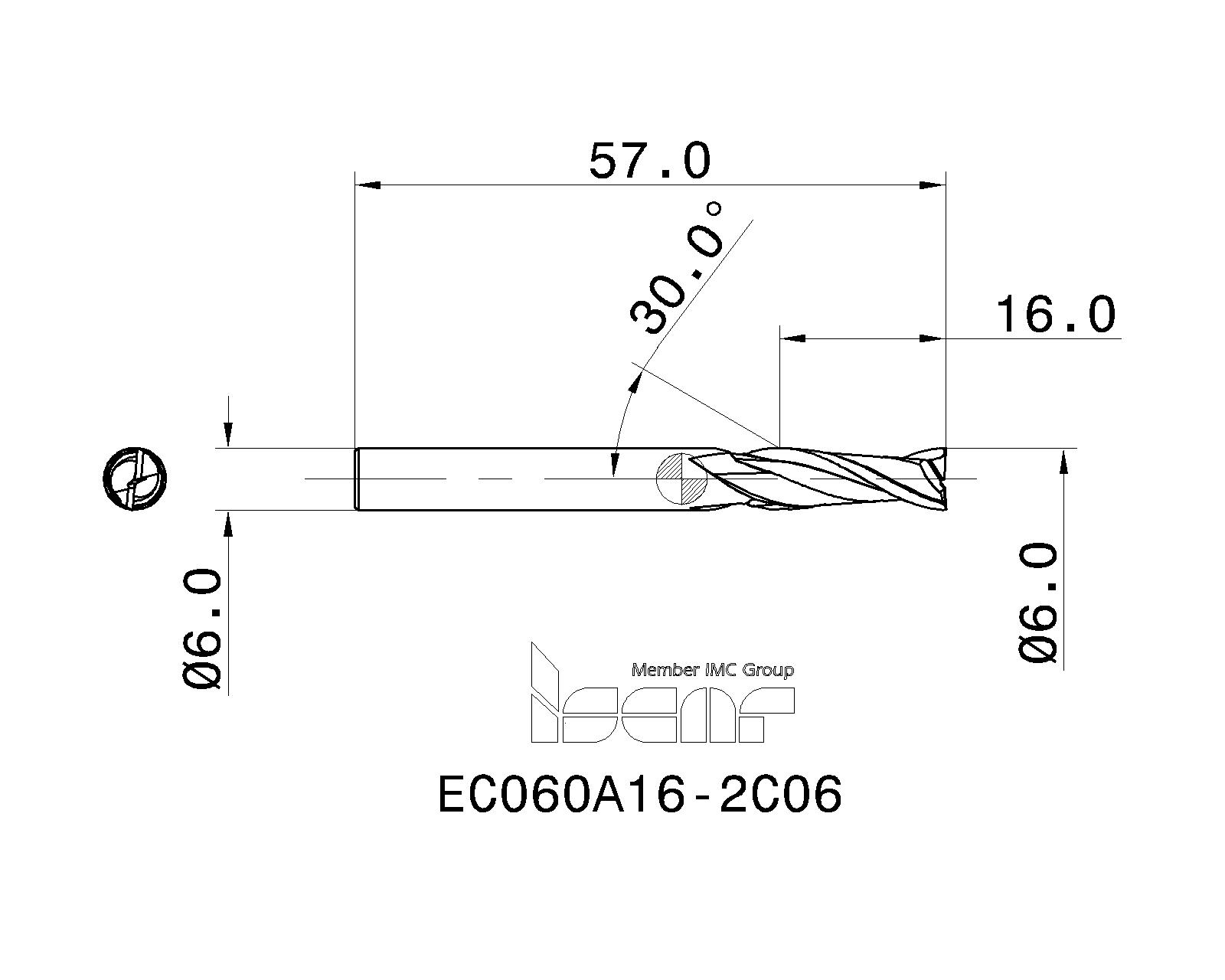

Item Designation: EC060A16-2C06

DC	DCONMS	APMX	OAL	LF	NOF	FHA	RMPX°	Shank	Ft	Key	fz (min)	fz (max)	Mod	a°	MINI	L group	BMC	DCX		CCFMS	CCMS	CCTMS	CHW	ClssID	CNSC	COATP	CSP	CUBPMS	CXSC	CZCMS	GRDMFG	GTC	HAND	ISCTMP	ISCTMP_2	ISYC	KAPR	KCH	LTA	TCDCONMS	TCDCONWS	UST	ZEFF	ZEFP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
6.00	6.00	16.00	57.00	57.00~	2	30.0	5.0	C	90 DEG~	C6~	0.03	0.07	ML400~	15~	All~	Medium length~	H~	6.00~	0.02~	01~	ZYL01F6000h$06~	ZYL~	-	71E01A05D27A8~	0~	~	0~	F~	0~	6000~	IC08 ~	MILSQS_MZYL01~	R~	GEMLS040020~	GEMLS010020~	303-02~	90.0~	-	29.00~	h6~	e8~	M~	2~	~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN ~	5699139		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
5620009	IC08	Alternative		3	0	1856				<a href="javascript:OpenDxf('5620009', 'EC060A16-2C06' , 'IscarDxf' , '5620009-EC060A16-2C06');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5620009&itemDesc=EC060A16-2C06"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5620009&itemDesc=EC060A16-2C06"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
5699139	IC900	Alternative		1	0	816				<a href="javascript:OpenDxf('5699139', 'EC060A16-2C06' , 'IscarDxf' , '5699139-EC060A16-2C06');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=5699139&itemDesc=EC060A16-2C06"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5699139&itemDesc=EC060A16-2C06"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
