Family Designation: DCMT (PCD)

55° rhombic inserts with PCD single top corner brazed tip, 7° clearance and positive rake angle, used for finishing al uminum

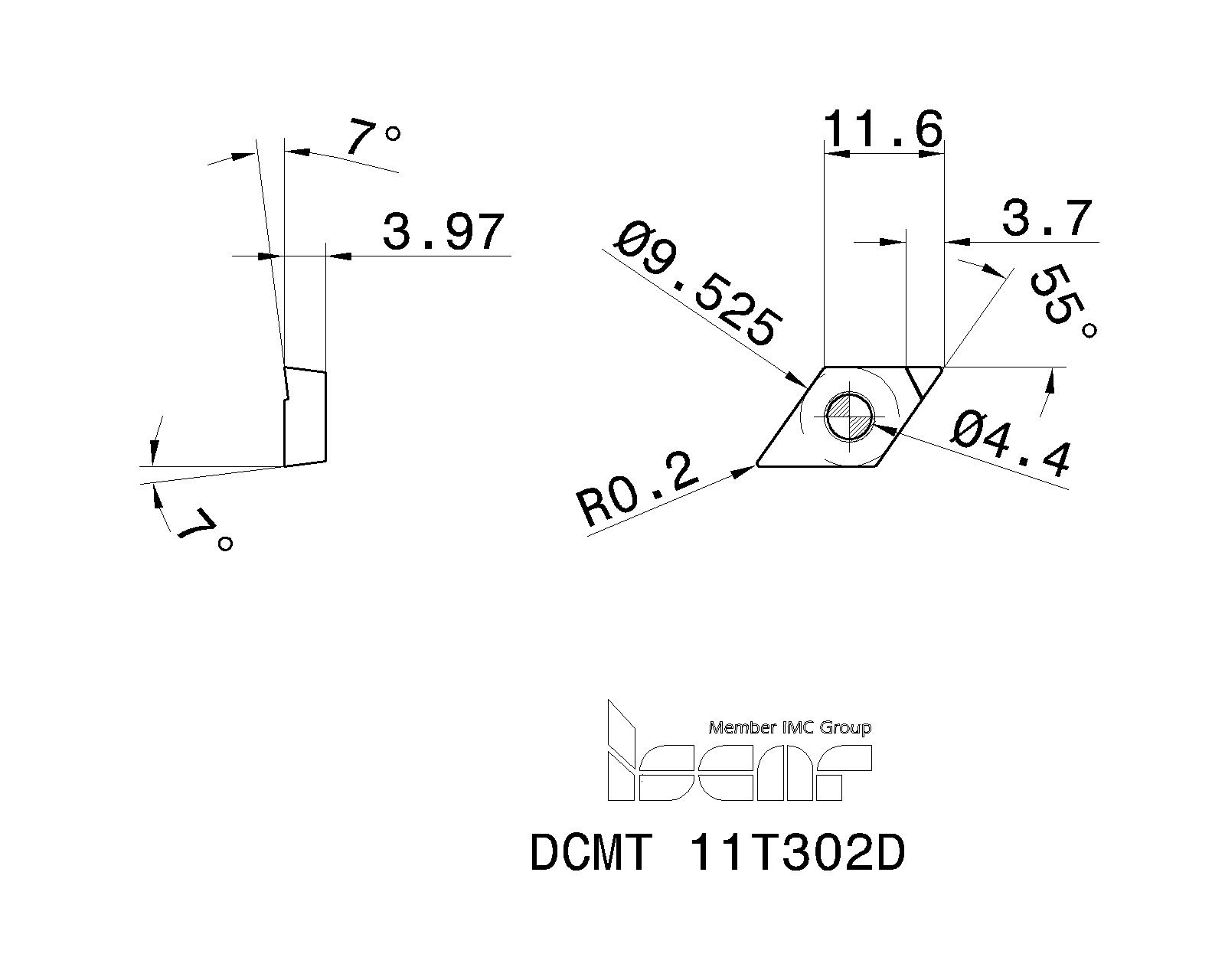

Item Designation: DCMT 11T302D

L	IC	S	RE	LE	D1	CBMD	ap (min)	ap (max)	ft (min)	ft (max)	AN	CEDC	SC	CNC	GRDMFG	IFS	INSI	INST	NIS	WEP	NFMetals	CutEdMat	GICAT	GIREM	giic
11.60	9.52	3.97	0.20	3.7	4.40	DW~	0.10	3.00	0.05	0.30	7.0~	1~	D~	1~	ID5 ~	3~	3-0D~	DCMT~	1~	0~	Non Ferrous Metals~	PCD~	5700453		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	Add to favorites	P21 Properties File	Add to Assembly	GTC	Stock Availability US EU E. Asia	STP	P21	StockPerUser
5700453	ID5			1	15				<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=5700453&cat=5700453&itemDesc=DCMT 11T302D"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=5700453&itemDesc=DCMT 11T302D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=5700453&itemDesc=DCMT 11T302D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
For dimensions and tolerances, Click on "More Info"
