Family Designation: DGN-W

Parting & grooving double-sided insert. W-type chipformer, with a central ridge that forms double cavities on the rake face. Used on hard materials and interrupted cuts.

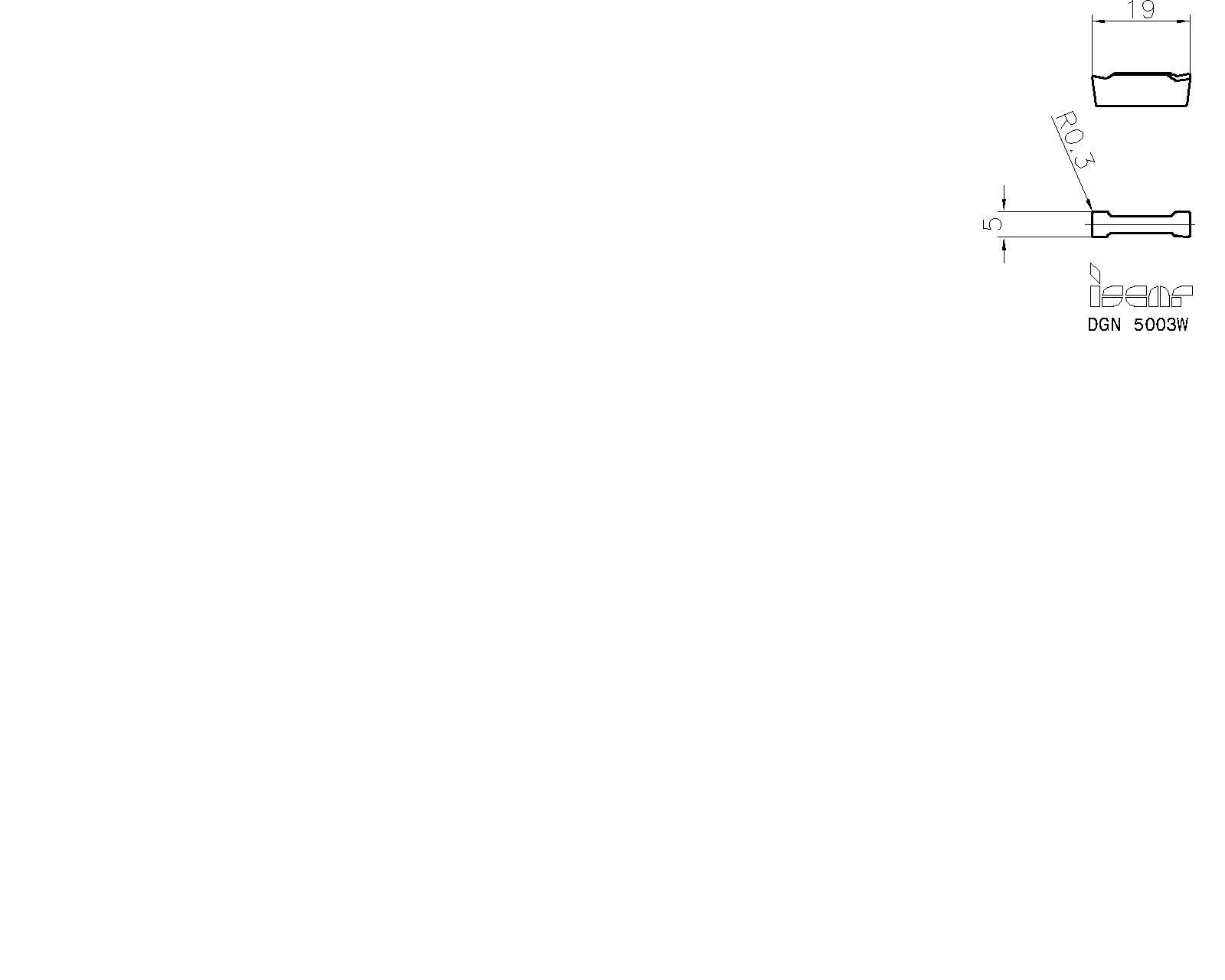

Item Designation: DGN 5003W

CW	RE	CWTOL	RETOL	INSL	CBMD	fg (min)	fg (max)	CEDC	HAND	SC	AN	CDX	COATP	CSP	DAXN	DMIN	GRDMFG	IFS	S	S1	WEP	ApplMat	StaSteel	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
5.00	0.30	0.040	0.030	19.00	~	0.12	0.33	2~	N~	L~	-~	-~	~	0~	-~	-~	IC1030~	7~	-~	-~	0~	Steel~	Stainless Steel~	Superalloys and titanium~	Carbide~	TiAlN+TiN ~	6002521		3

Catalog No	Grade & Vc	Alternative	GISC	AvailUSA	DXF	STP
3384314	IC1030		1	0	<a href="javascript:OpenDxf('3384314', 'DGN 5003W' , 'IscarDxf' , '3384314-DGN 5003W');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3384314&itemDesc=DGN 5003W"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6002495	IC328	Alternative	8	350	<a href="javascript:OpenDxf('6002495', 'DGN 5003W' , 'IscarDxf' , '6002495-DGN 5003W');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002495&itemDesc=DGN 5003W"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6002521	IC354	Alternative	1	50	<a href="javascript:OpenDxf('6002521', 'DGN 5003W' , 'IscarDxf' , '6002521-DGN 5003W');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002521&itemDesc=DGN 5003W"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>

Items Per Package : 10
No depth limit

3D Representation	Light Detailed	3D Required
