Family Designation: DGN-UT/UA

A chipformer for use at low feeds. Recommended for Cr-Ni alloys and low carbon steel, especially in the bearing industry and on similar, problematic materials. The narrow chipformer design ensures short deformed chips.

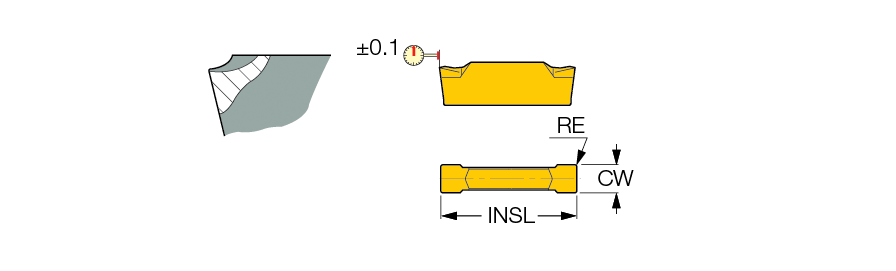

Item Designation: DGN 2202UA

CW	CWTOL	RE	RETOL	CDX	INSL	CBMD	fg (min)	fg (max)	CEDC	HAND	SC	AN	COATP	CSP	DAXN	DMIN	GRDMFG	IFS	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
2.20	0.030	0.20	0.020	18.00	19.90	~	0.04	0.13	2~	N~	L~	-~	~	0~	-~	-~	IC1028~	7~	-~	-~	0~	Steel~	Stainless Steel~				Superalloys and titanium~	Carbide~	TiAlN+TiN ~	6003068		3

Catalog No	Grade & Vc	Alternative	GISC	AvailUSA	DXF	STP
6002496	IC354	Alternative	1	120	<a href="javascript:OpenDxf('6002496', 'DGN 2202UA' , 'IscarDxf' , '6002496-DGN 2202UA');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002496&itemDesc=DGN 2202UA"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6002497	IC328	Alternative	1	20	<a href="javascript:OpenDxf('6002497', 'DGN 2202UA' , 'IscarDxf' , '6002497-DGN 2202UA');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002497&itemDesc=DGN 2202UA"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6003068	IC1028	Alternative	1	0	<a href="javascript:OpenDxf('6003068', 'DGN 2202UA' , 'IscarDxf' , '6003068-DGN 2202UA');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6003068&itemDesc=DGN 2202UA"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>

Items Per Package : 10

3D Representation	Light Detailed	3D Required

Assembly Video

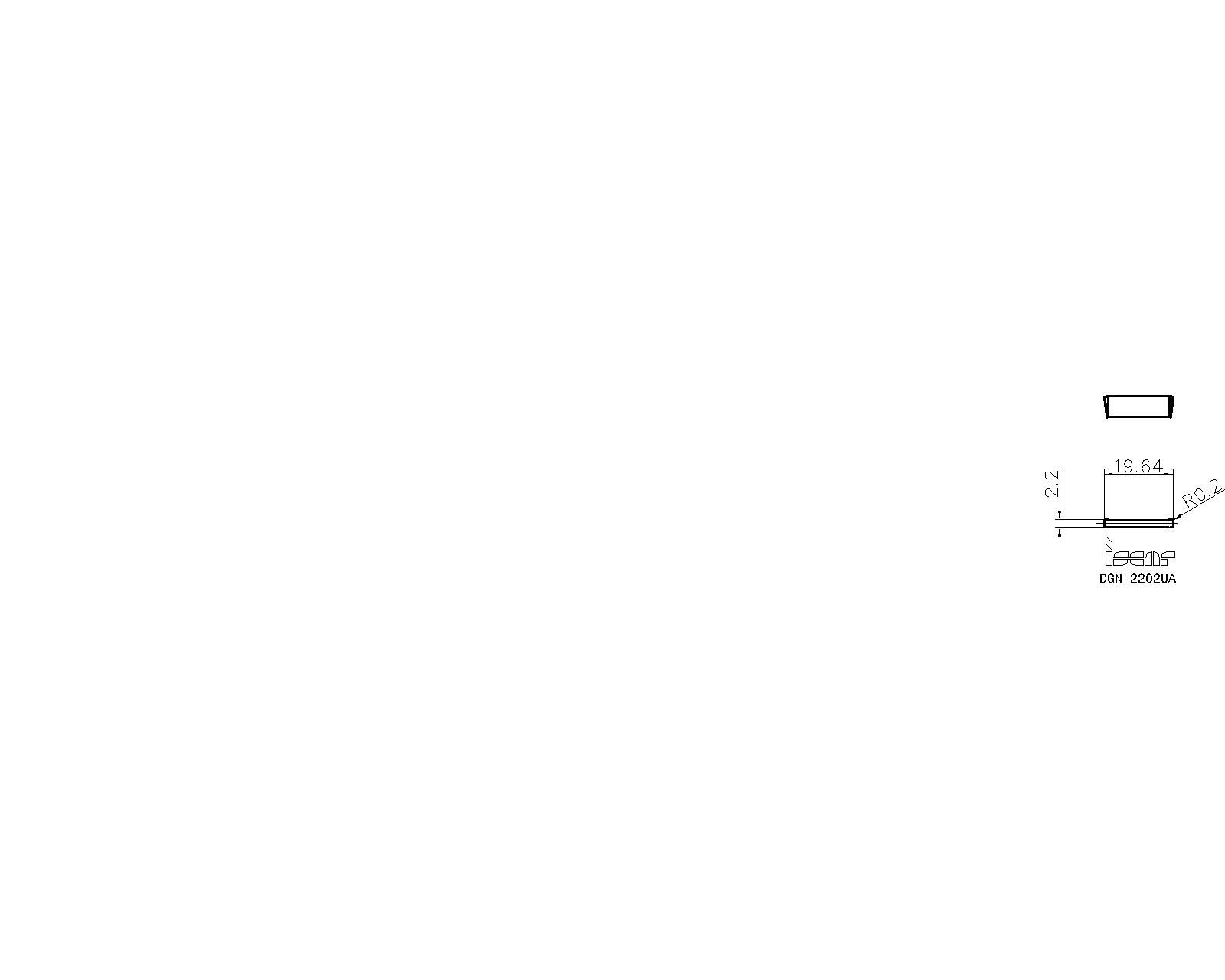

2D Representation	ISO	2D Required
