Family Designation: DGR/L-C DGRC/LC-C

First choice for the parting bars, hard materials and tough applications. A positive rake, single cavity with nagative land and shoulders, provides extra cutting edge strength. Medium-to-high feeds.

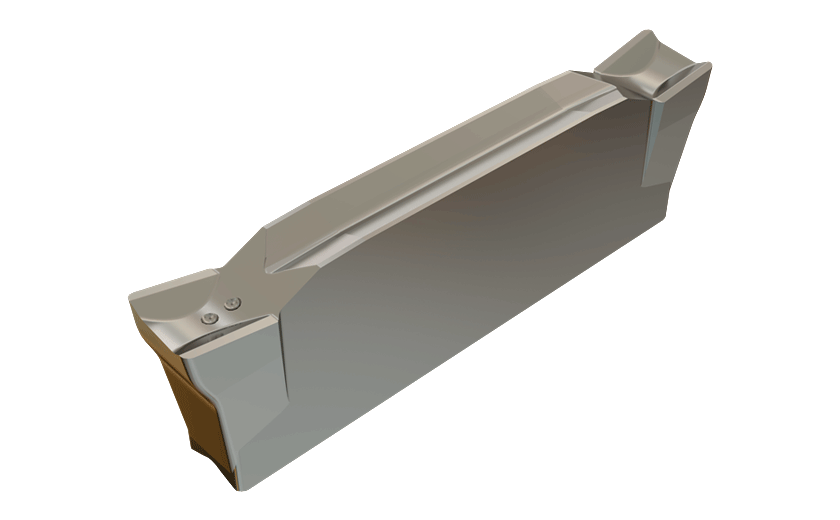

Item Designation: DGL 2202C-6D

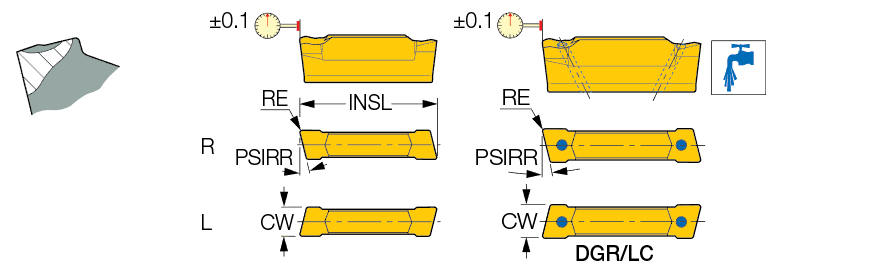

CW	RE	CDX	PSIRL	PSIRR	INSL	HAND	CBMD	fg (min)	fg (max)	CEDC	CSP	SC	AN	COATP	DAXN	DMIN	GRDMFG	IFS	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
2.20	0.20	18.00	6.0	-	20.80	L~	~	0.04	0.12	2~	0~	L~	-~	~	-~	-~	IC1010~	7~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	TiAlN ~	6003083		7

Catalog No	Grade & Vc	Alternative	GISC	AvailUSA	DXF	STP
3384532	IC1010		3	0	<a href="javascript:OpenDxf('3384532', 'DGL 2202C-6D' , 'IscarDxf' , '3384532-DGL 2202C-6D');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3384532&itemDesc=DGL 2202C-6D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
3384533	IC1030		1	0	<a href="javascript:OpenDxf('3384533', 'DGL 2202C-6D' , 'IscarDxf' , '3384533-DGL 2202C-6D');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3384533&itemDesc=DGL 2202C-6D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6002325	IC20	Alternative	3	0	<a href="javascript:OpenDxf('6002325', 'DGL 2202C-6D' , 'IscarDxf' , '6002325-DGL 2202C-6D');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002325&itemDesc=DGL 2202C-6D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6002327	IC354	Alternative	1	0	<a href="javascript:OpenDxf('6002327', 'DGL 2202C-6D' , 'IscarDxf' , '6002327-DGL 2202C-6D');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002327&itemDesc=DGL 2202C-6D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6002467	IC328	Alternative	1	30	<a href="javascript:OpenDxf('6002467', 'DGL 2202C-6D' , 'IscarDxf' , '6002467-DGL 2202C-6D');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002467&itemDesc=DGL 2202C-6D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6003026	IC908	Alternative	1	60	<a href="javascript:OpenDxf('6003026', 'DGL 2202C-6D' , 'IscarDxf' , '6003026-DGL 2202C-6D');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6003026&itemDesc=DGL 2202C-6D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6003083	IC1028	Alternative	8	0	<a href="javascript:OpenDxf('6003083', 'DGL 2202C-6D' , 'IscarDxf' , '6003083-DGL 2202C-6D');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6003083&itemDesc=DGL 2202C-6D"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>

Items Per Package : 10
The feed values for grade IC20 should be decreased by 50%.

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
