Family Designation: DGN/DGNC/DGNM-C

Used for parting bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders. Medium-to-high feeds. DGNC - with coolant holes, DGNM - single ended for very deep applications.

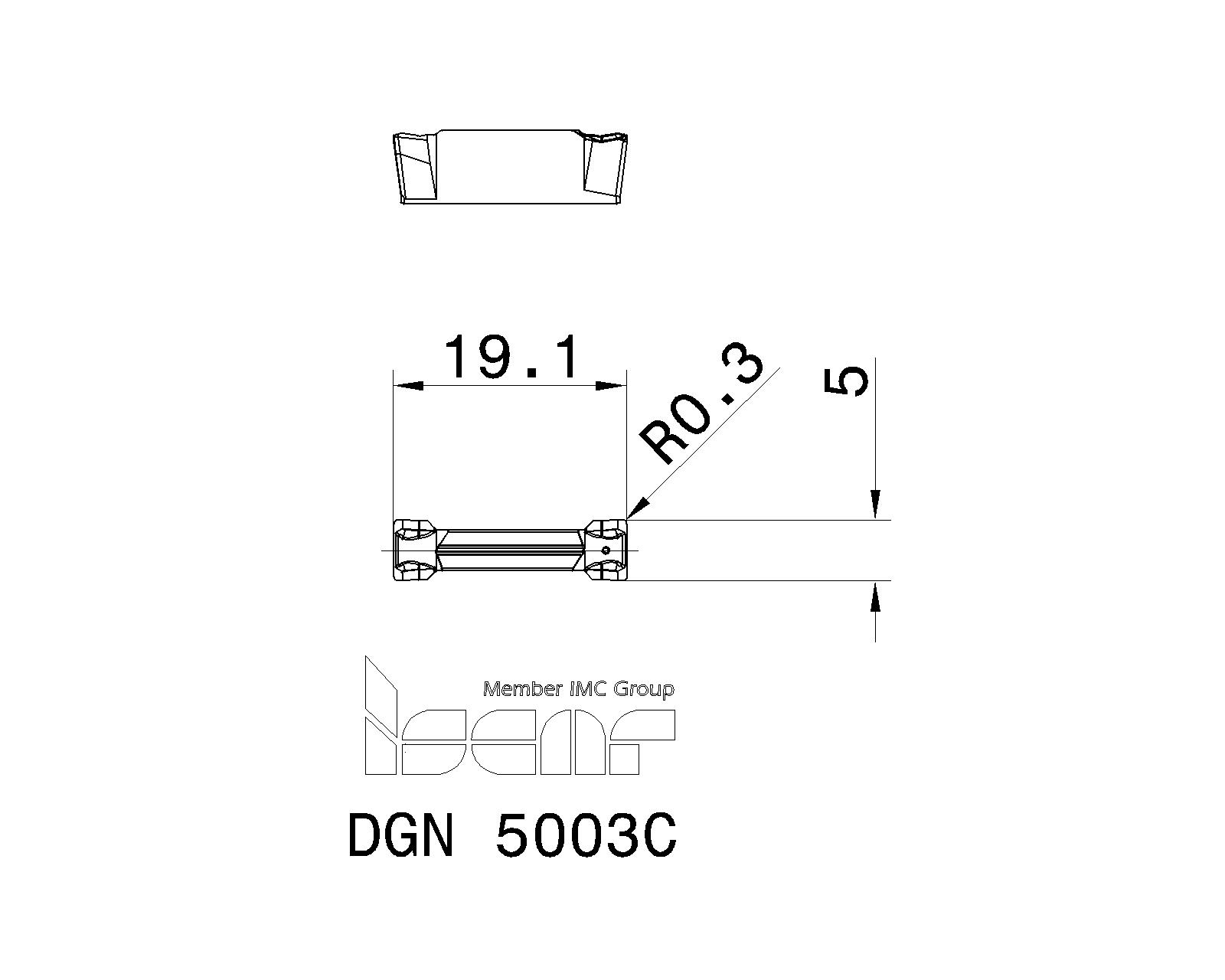

Item Designation: DGN 5003C

CW	CWTOL	RE	RETOL	CDX	INSL	CBMD	CEDC	CSP	fg (min)	fg (max)	HAND	SC	AN	COATP	DAXN	DMIN	GRDMFG	IFS	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
5.00	0.040	0.30	0.030	-	19.10	~	2~	0~	0.12	0.35	N~	L~	-~	~	-~	-~	IC1010~	7~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN+TiN ~	6004476		10

Catalog No	Grade & Vc	Alternative	GISC	AvailUSA	DXF	STP
3384364	IC1010		1	0	<a href="javascript:OpenDxf('3384364', 'DGN 5003C' , 'IscarDxf' , '3384364-DGN 5003C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3384364&itemDesc=DGN 5003C"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
3384365	IC1030		1	0	<a href="javascript:OpenDxf('3384365', 'DGN 5003C' , 'IscarDxf' , '3384365-DGN 5003C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3384365&itemDesc=DGN 5003C"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6002378	IC20	Alternative	1	0	<a href="javascript:OpenDxf('6002378', 'DGN 5003C' , 'IscarDxf' , '6002378-DGN 5003C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002378&itemDesc=DGN 5003C"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6002379	IC354	Alternative	1	100	<a href="javascript:OpenDxf('6002379', 'DGN 5003C' , 'IscarDxf' , '6002379-DGN 5003C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002379&itemDesc=DGN 5003C"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6002423	IC328	Alternative	1	150	<a href="javascript:OpenDxf('6002423', 'DGN 5003C' , 'IscarDxf' , '6002423-DGN 5003C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002423&itemDesc=DGN 5003C"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6002531	IC30N	Alternative	3	0	<a href="javascript:OpenDxf('6002531', 'DGN 5003C' , 'IscarDxf' , '6002531-DGN 5003C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002531&itemDesc=DGN 5003C"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6002946	IC908	Alternative	1	310	<a href="javascript:OpenDxf('6002946', 'DGN 5003C' , 'IscarDxf' , '6002946-DGN 5003C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6002946&itemDesc=DGN 5003C"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6003070	IC1028	Alternative	1	50	<a href="javascript:OpenDxf('6003070', 'DGN 5003C' , 'IscarDxf' , '6003070-DGN 5003C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6003070&itemDesc=DGN 5003C"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6004475	IC830	Alternative	1	50	<a href="javascript:OpenDxf('6004475', 'DGN 5003C' , 'IscarDxf' , '6004475-DGN 5003C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6004475&itemDesc=DGN 5003C"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6004476	IC808	Alternative	1	110	<a href="javascript:OpenDxf('6004476', 'DGN 5003C' , 'IscarDxf' , '6004476-DGN 5003C');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6004476&itemDesc=DGN 5003C"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>

Items Per Package : 10
The feed values for grade IC20 should be decreased by 50%.

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
