Family Designation: DGN/DGNM-J/JS/JT

First choice for soft materials, parting of tubes, small diameters and thin-walled parts. General applications on low carbon, alloy and austenitic stainless steel. Low-to-medium feeds. JS - sharp corner. DGNM - single-ended.

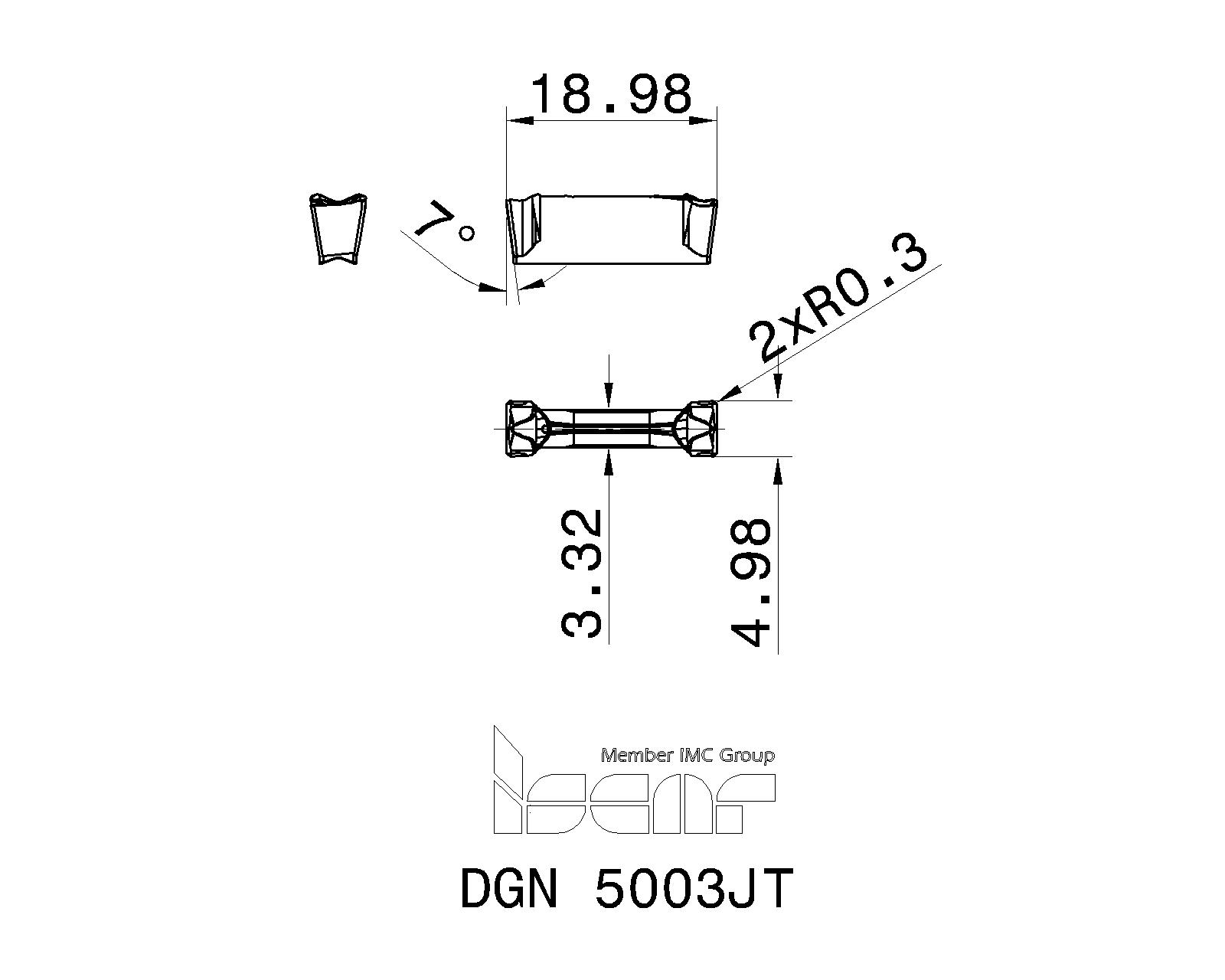

Item Designation: DGN 5003JT

CW	CWTOL	RE	RETOL	CDX	INSL	HAND	S2	S1	CBMD	Semi- (Q)	CEDC	CB1	S5	fg (min)	fg (max)	NO LINK	Mod	Wi	Ri	UST	SC	ISCTMP		AN	BW	ClssID	COATP	CSP	DAXN	DAXX	DMIN	GAN	GRDMFG	GTC	GTC_2	IFS	IIC	ISCTMP_2	ISYC	LOGH	LOGL	LOGW	PDPT	PLIB2	S	S1	TCE	Utility	WEP	WF	WFA	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
5.00	0.040	0.30	0.030	-	19.00	N~	R~	5~	~	0~	2~	M6E~	2~	0.05	0.20	0~	GR100~	5.00~	0.30~	C~	L~	TUGEDS~	0.00~	7.0~	-~	71DDA089C8D1E~	~	0~	-~	-~	-~	-~	IC908 ~	INSCPRT_MIS$$DSE~	INSCPRT_MIS$$DSI~	7~	IS$$716871560046824~	TUGIDS~	202-03~	0.00~	0.00~	0.00~	-~	~	-~	-~	~	U~	0~	~	-~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~		Superalloys and titanium~	Carbide~	TiAlN ~	6004616		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	Add to favorites	P21 Properties File	GIFUT5	GTC	Stock Availability US EU E. Asia	STP	P21
6004615	IC928	Alternative		3	0			0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6004615&cat=6004615&itemDesc=DGN 5003JT"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6004615&itemDesc=DGN 5003JT"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6004615&itemDesc=DGN 5003JT"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
6004616	IC908	Alternative		3	0			0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6004616&cat=6004616&itemDesc=DGN 5003JT"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6004616&itemDesc=DGN 5003JT"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6004616&itemDesc=DGN 5003JT"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 10
JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge; most suitable for soft materials at low to medium feeds
