Family Designation: DGN/DGNM-J/JS/JT

First choice for soft materials, parting of tubes, small diameters and thin-walled parts. General applications on low carbon, alloy and austenitic stainless steel. Low-to-medium feeds. JS - sharp corner. DGNM - single-ended.

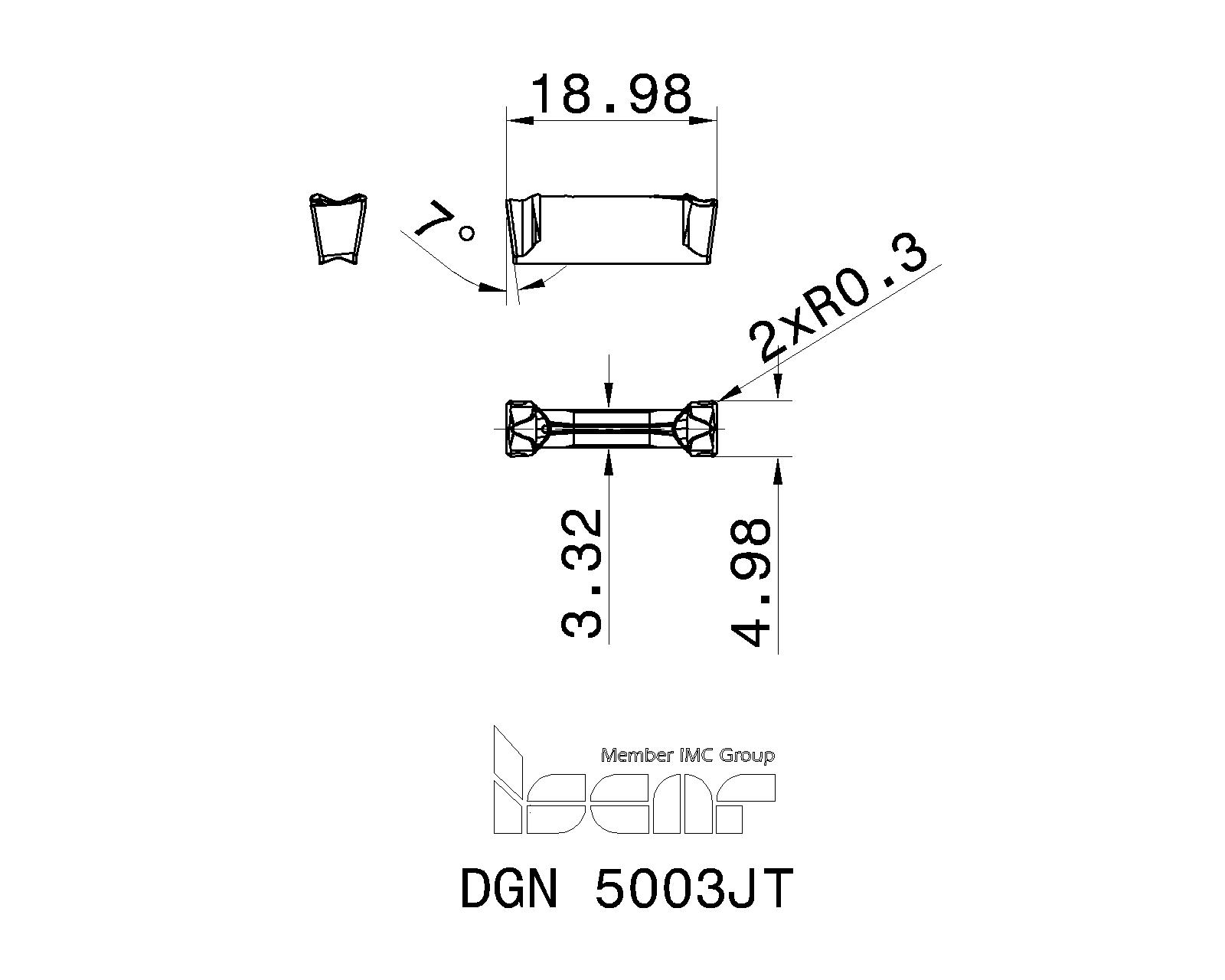

Item Designation: DGN 5003JT

CW	CWTOL	RE	RETOL	CDX	INSL	HAND	CBMD	CEDC	fg (min)	fg (max)	SC	AN	COATP	CSP	DAXN	DMIN	GRDMFG	IFS	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
5.00	0.040	0.30	0.030	-	19.00	N~	~	2~	0.05	0.20	L~	7.0~	~	0~	-~	-~	IC908 ~	7~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~		Superalloys and titanium~	Carbide~	TiAlN ~	6004616		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	Add to favorites	AvailFarEast	GIFUT5	Stock Availability US EU E. Asia	DXF	STP	StockPerUser
6004615	IC928	Alternative		3	0		36	0		<a href="javascript:OpenDxf('6004615', 'DGN 5003JT' , 'IscarDxf' , '6004615-DGN 5003JT');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6004615&itemDesc=DGN 5003JT"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>
6004616	IC908	Alternative		3	0		1244	0		<a href="javascript:OpenDxf('6004616', 'DGN 5003JT' , 'IscarDxf' , '6004616-DGN 5003JT');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6004616&itemDesc=DGN 5003JT"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>

Items Per Package : 10
JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge; most suitable for soft materials at low to medium feeds
