Family Designation: DGN-LF/LFT

Double-sided parting and grooving inserts, first choice for stainless steel applications.

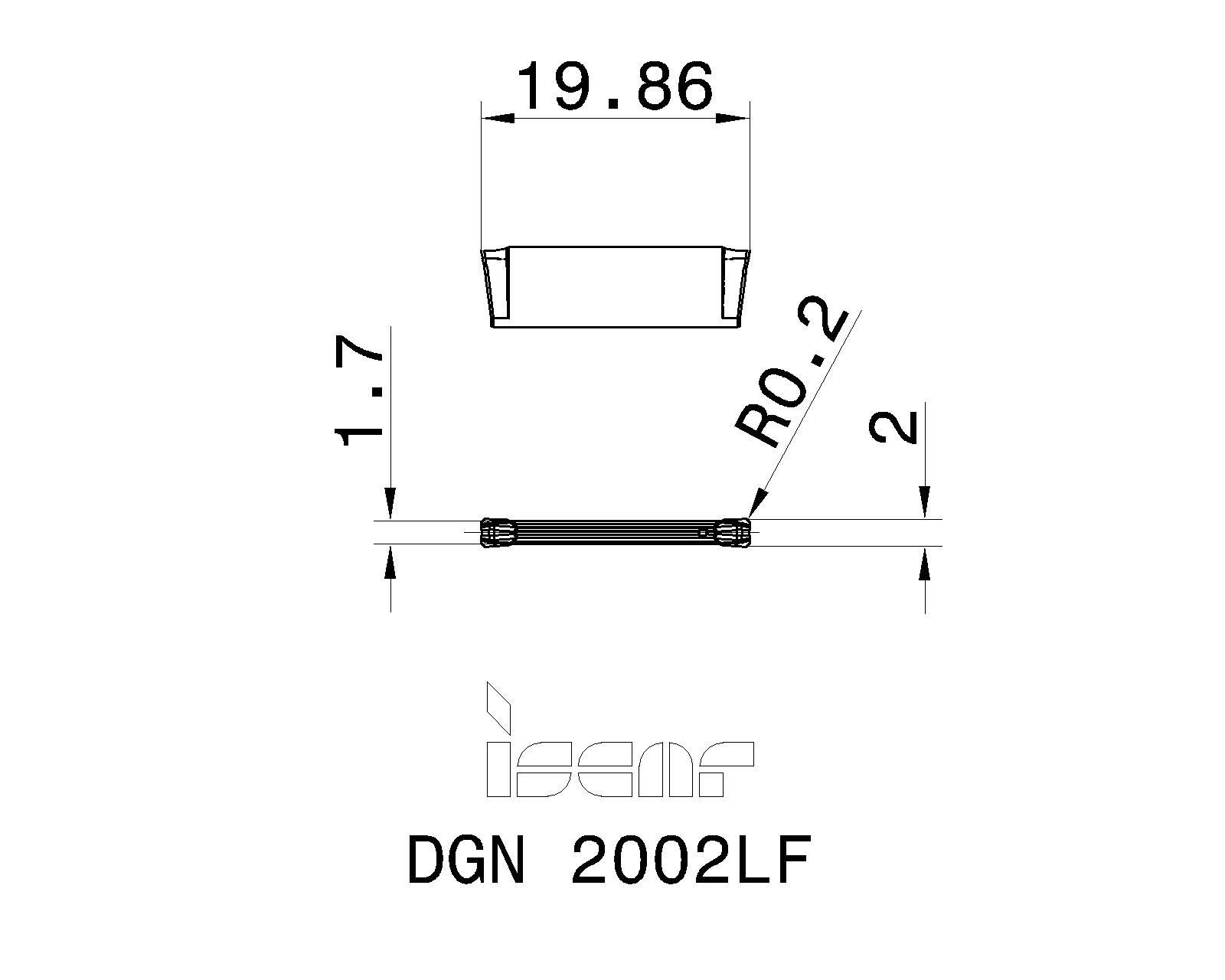

Item Designation: DGN 2002LF

CW	CWTOL	RE	RETOL	CDX	INSL	fg (min)	fg (max)	HAND	CBMD	CEDC	SC	AN	COATP	CSP	DAXN	DMIN	GRDMFG	IFS	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
2.00	0.030	0.20	0.020	18.00	19.80	0.03	0.08	N~	~	2~	L~	-~	~	0~	-~	-~	IC1010~	7~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	AlTiN+TiN ~	6004901		4

Catalog No	Grade & Vc	GISC	AvailUSA	DXF	STP
3327037	IC1010	1	280	<a href="javascript:OpenDxf('3327037', 'DGN 2002LF' , 'IscarDxf' , '3327037-DGN 2002LF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3327037&itemDesc=DGN 2002LF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6004883	IC808	1	120	<a href="javascript:OpenDxf('6004883', 'DGN 2002LF' , 'IscarDxf' , '6004883-DGN 2002LF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6004883&itemDesc=DGN 2002LF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6004884	IC830	1	90	<a href="javascript:OpenDxf('6004884', 'DGN 2002LF' , 'IscarDxf' , '6004884-DGN 2002LF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6004884&itemDesc=DGN 2002LF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6004901	IC5400	1	130	<a href="javascript:OpenDxf('6004901', 'DGN 2002LF' , 'IscarDxf' , '6004901-DGN 2002LF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6004901&itemDesc=DGN 2002LF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>

Items Per Package : 10
The LFT chipformer features basically the same design as the LF chipformer, except that it is reinforced by a T-land to improve its durability in interrupted-cut or on hard materials applications. It can be applied at higher feeds than the LF chipformer

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
