Family Designation: DGN-Z

A chipformer for use at low feeds on Cr-Ni alloys and low carbon steel, especially in the bearing industry, and on similar, problematic materials. The narrow chipformer design ensures short deformed chips and high surface finish.

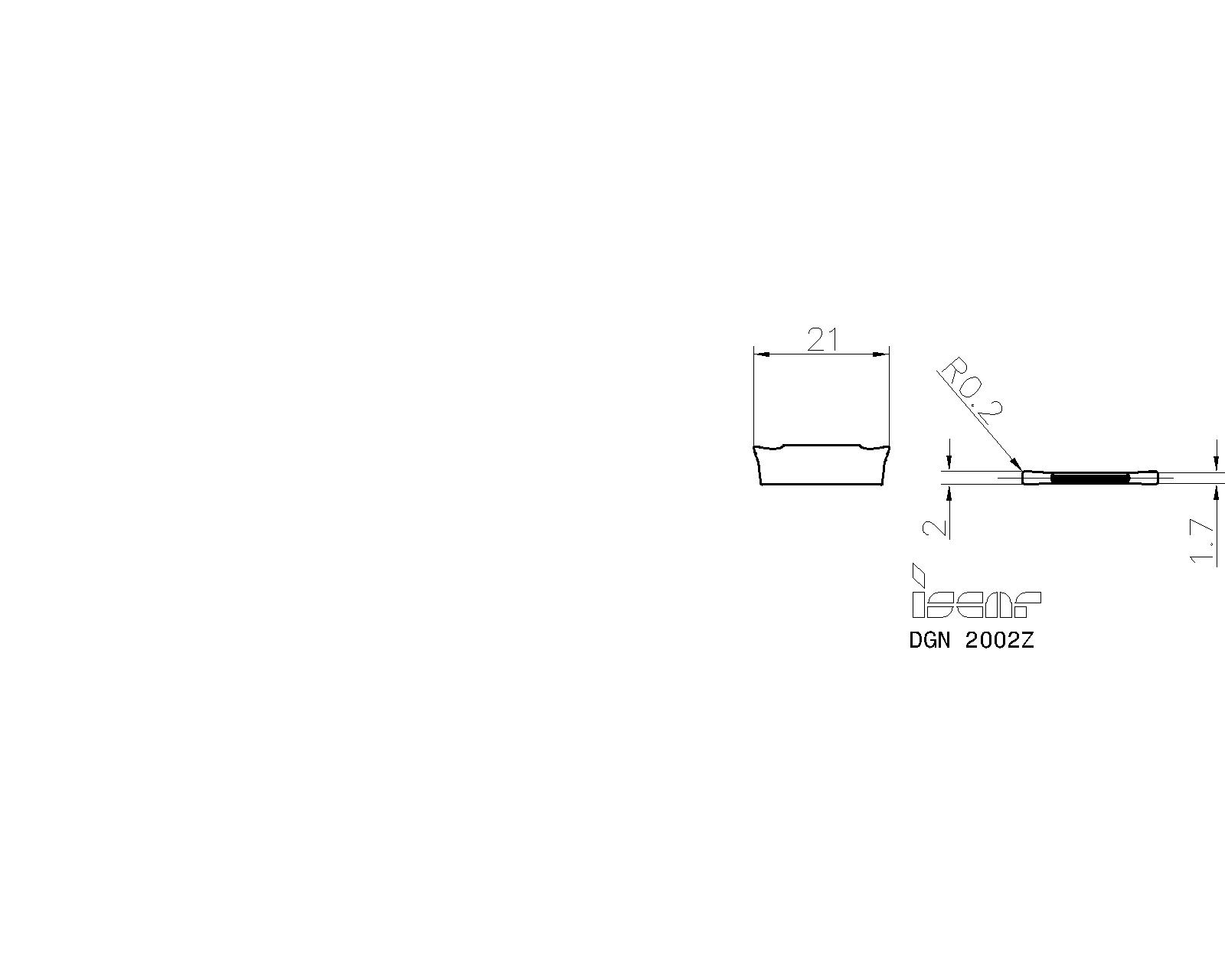

Item Designation: DGN 2002Z

CW	CDX	CWTOL	RE	RETOL	INSL	CBMD	fg (min)	fg (max)	CEDC	HAND	SC	AN	COATP	CSP	DAXN	DMIN	GRDMFG	IFS	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
2.00	18.00	0.030	0.20	0.020	20.90	~	0.03	0.12	2~	N~	L~	-~	~	0~	-~	-~	IC1010~	7~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	6011379		4

Catalog No	Grade & Vc	Alternative	GISC	AvailUSA	DXF	STP
3340522	IC1010		1	0	<a href="javascript:OpenDxf('3340522', 'DGN 2002Z' , 'IscarDxf' , '3340522-DGN 2002Z');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3340522&itemDesc=DGN 2002Z"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
3340526	IC1030		1	0	<a href="javascript:OpenDxf('3340526', 'DGN 2002Z' , 'IscarDxf' , '3340526-DGN 2002Z');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3340526&itemDesc=DGN 2002Z"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6003010	IC908	Alternative	1	610	<a href="javascript:OpenDxf('6003010', 'DGN 2002Z' , 'IscarDxf' , '6003010-DGN 2002Z');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6003010&itemDesc=DGN 2002Z"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6011379	IC808	Alternative	1	280	<a href="javascript:OpenDxf('6011379', 'DGN 2002Z' , 'IscarDxf' , '6011379-DGN 2002Z');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6011379&itemDesc=DGN 2002Z"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>

Items Per Package : 10

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
