ISCAR Cutting Tools - Metal Working Tools - DGN-LF/LFT : 6080115

Geometry Checker ×

Family Designation: DGN-LF/LFT

Double-sided parting and grooving inserts, first choice for stainless steel applications.

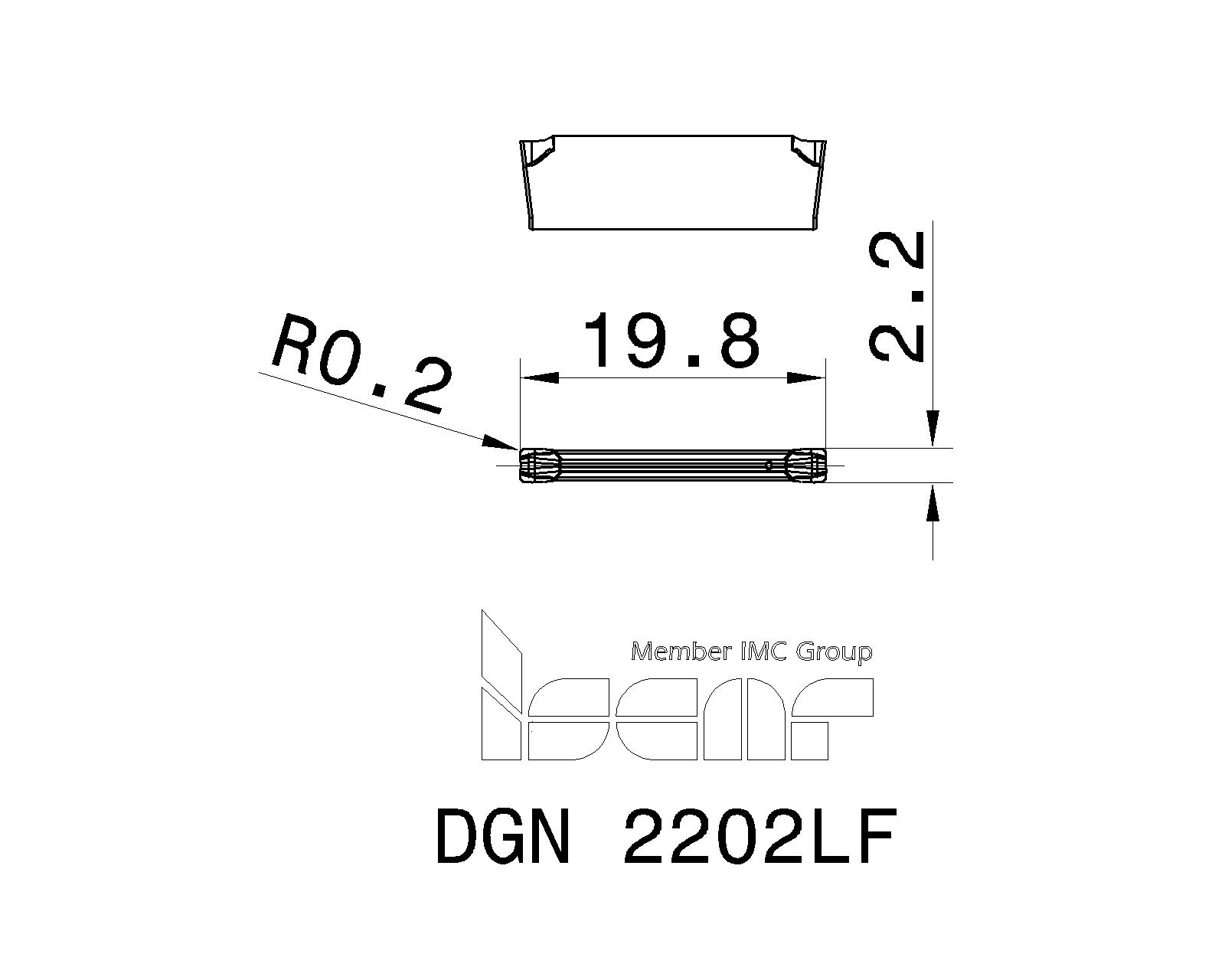

Item Designation: DGN 2202LF

CW	CWTOL	RE	RETOL	CDX	INSL	fg (min)	fg (max)	HAND	CBMD	CEDC	SC	AN	COATP	CSP	DAXN	DMIN	GRDMFG	IFS	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
2.20	0.030	0.20	0.020	18.00	19.80	0.03	0.08	N~	~	2~	L~	-~	~	0~	-~	-~	IC1010~	7~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Superalloys and titanium~	Carbide~	TiAlN ~	6080115		5

Catalog No	Grade & Vc	GISC	AvailUSA	DXF	STP
3340523	IC1010	1	90	<a href="javascript:OpenDxf('3340523', 'DGN 2202LF' , 'IscarDxf' , '3340523-DGN 2202LF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3340523&itemDesc=DGN 2202LF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
3340527	IC1030	1	90	<a href="javascript:OpenDxf('3340527', 'DGN 2202LF' , 'IscarDxf' , '3340527-DGN 2202LF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3340527&itemDesc=DGN 2202LF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6004633	IC908	1	120	<a href="javascript:OpenDxf('6004633', 'DGN 2202LF' , 'IscarDxf' , '6004633-DGN 2202LF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6004633&itemDesc=DGN 2202LF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6004634	IC928	8	0	<a href="javascript:OpenDxf('6004634', 'DGN 2202LF' , 'IscarDxf' , '6004634-DGN 2202LF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6004634&itemDesc=DGN 2202LF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6080115	IC5400	1	180	<a href="javascript:OpenDxf('6080115', 'DGN 2202LF' , 'IscarDxf' , '6080115-DGN 2202LF');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6080115&itemDesc=DGN 2202LF"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>

Items Per Package : 10
The LFT chipformer features basically the same design as the LF chipformer, except that it is reinforced by a T-land to improve its durability in interrupted-cut or on hard materials applications. It can be applied at higher feeds than the LF chipformer

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
