Family Designation: DGN/DGNM-J/JS/JT

First choice for soft materials, parting of tubes, small diameters and thin-walled parts. General applications on low carbon, alloy and austenitic stainless steel. Low-to-medium feeds. JS - sharp corner. DGNM - single-ended.

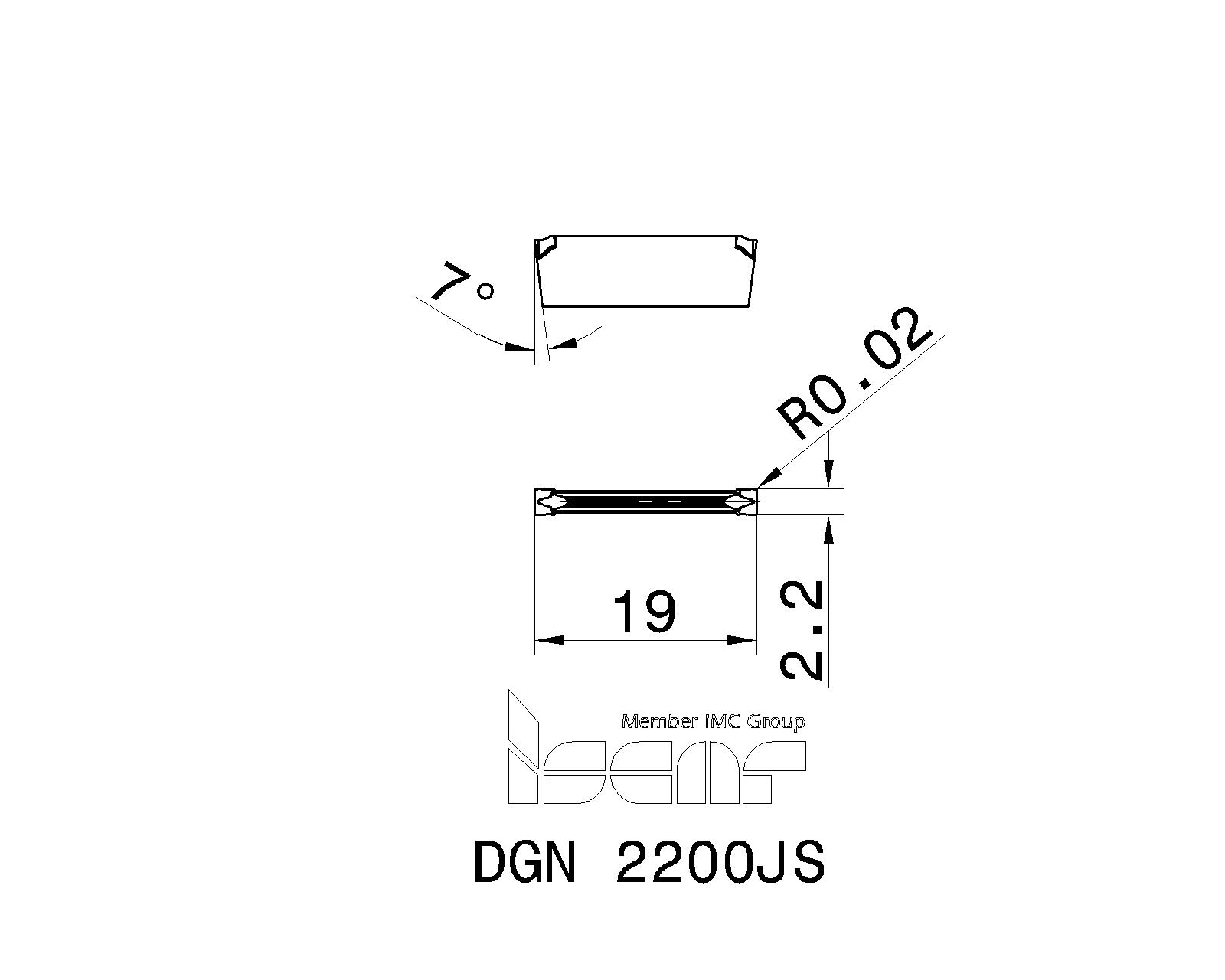

Item Designation: DGN 2200JS

CW	CWTOL	RE	RETOL	CDX	INSL	HAND	CBMD	CEDC	fg (min)	fg (max)	SC	AN	COATP	CSP	DAXN	DMIN	GRDMFG	IFS	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
2.20	0.030	0.02	0.020	18.00	19.00	N~	~	2~	0.03	0.08	L~	7.0~	~	0~	-~	-~	IC1010~	7~	-~	-~	0~	Steel~	Stainless Steel~				Superalloys and titanium~	Carbide~	AlTiN+TiN ~	6096788	Sharp corners	4

Catalog No	Grade & Vc	Alternative	GISC	AvailUSA	GIFUT5	DXF	STP
3384288	IC1010		8	40	0	<a href="javascript:OpenDxf('3384288', 'DGN 2200JS' , 'IscarDxf' , '3384288-DGN 2200JS');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3384288&itemDesc=DGN 2200JS"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
3384289	IC1030		8	0	0	<a href="javascript:OpenDxf('3384289', 'DGN 2200JS' , 'IscarDxf' , '3384289-DGN 2200JS');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3384289&itemDesc=DGN 2200JS"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6004504	IC830	Alternative	1	0	0	<a href="javascript:OpenDxf('6004504', 'DGN 2200JS' , 'IscarDxf' , '6004504-DGN 2200JS');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6004504&itemDesc=DGN 2200JS"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
Sharp corners
6096788	IC328	Alternative	1	220	0	<a href="javascript:OpenDxf('6096788', 'DGN 2200JS' , 'IscarDxf' , '6096788-DGN 2200JS');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6096788&itemDesc=DGN 2200JS"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
Sharp corners

Items Per Package : 10
JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge; most suitable for soft materials at low to medium feeds
