ISCAR Cutting Tools - Metal Working Tools - DGN-UT/UA : 6099986

Geometry Checker ×

Family Designation: DGN-UT/UA

A chipformer for use at low feeds. Recommended for Cr-Ni alloys and low carbon steel, especially in the bearing industry and on similar, problematic materials. The narrow chipformer design ensures short deformed chips.

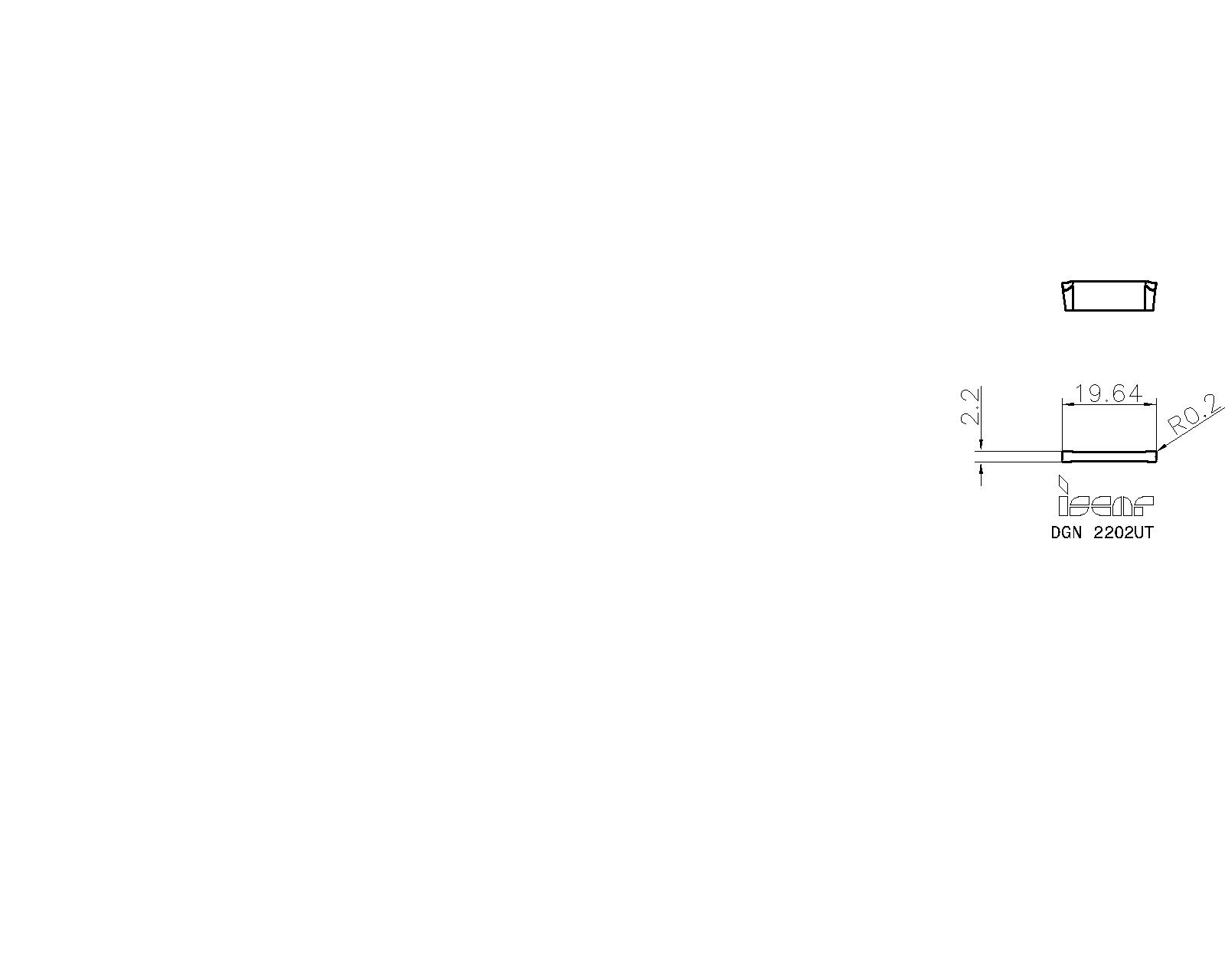

Item Designation: DGN 2202UT

CW	CWTOL	RE	RETOL	CDX	INSL	CBMD	fg (min)	fg (max)	CEDC	HAND	SC	AN	COATP	CSP	DAXN	DMIN	GRDMFG	IFS	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
2.20	0.030	0.20	0.020	18.00	19.60	~	0.03	0.11	2~	N~	L~	-~	~	0~	-~	-~	IC350 ~	7~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~		Superalloys and titanium~	Carbide~	TiAlN ~	6099986		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	AvailUSA	Add to favorites	Add to Assembly	GIFUT5	Stock Availability US EU E. Asia	DXF	STP	StockPerUser
6093189	IC908			1	219			0		<a href="javascript:OpenDxf('6093189', 'DGN 2202UT' , 'IscarDxf' , '6093189-DGN 2202UT');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6093189&itemDesc=DGN 2202UT"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>
6099986	IC350			3	0			0		<a href="javascript:OpenDxf('6099986', 'DGN 2202UT' , 'IscarDxf' , '6099986-DGN 2202UT');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6099986&itemDesc=DGN 2202UT"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>

Items Per Package : 10

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
