ISCAR Cutting Tools - Metal Working Tools - GRIP : 6200459

Geometry Checker ×

Family Designation: GRIP

Double-ended inserts, for turning & grooving in external, internal and face applications.

No depth penetration limit

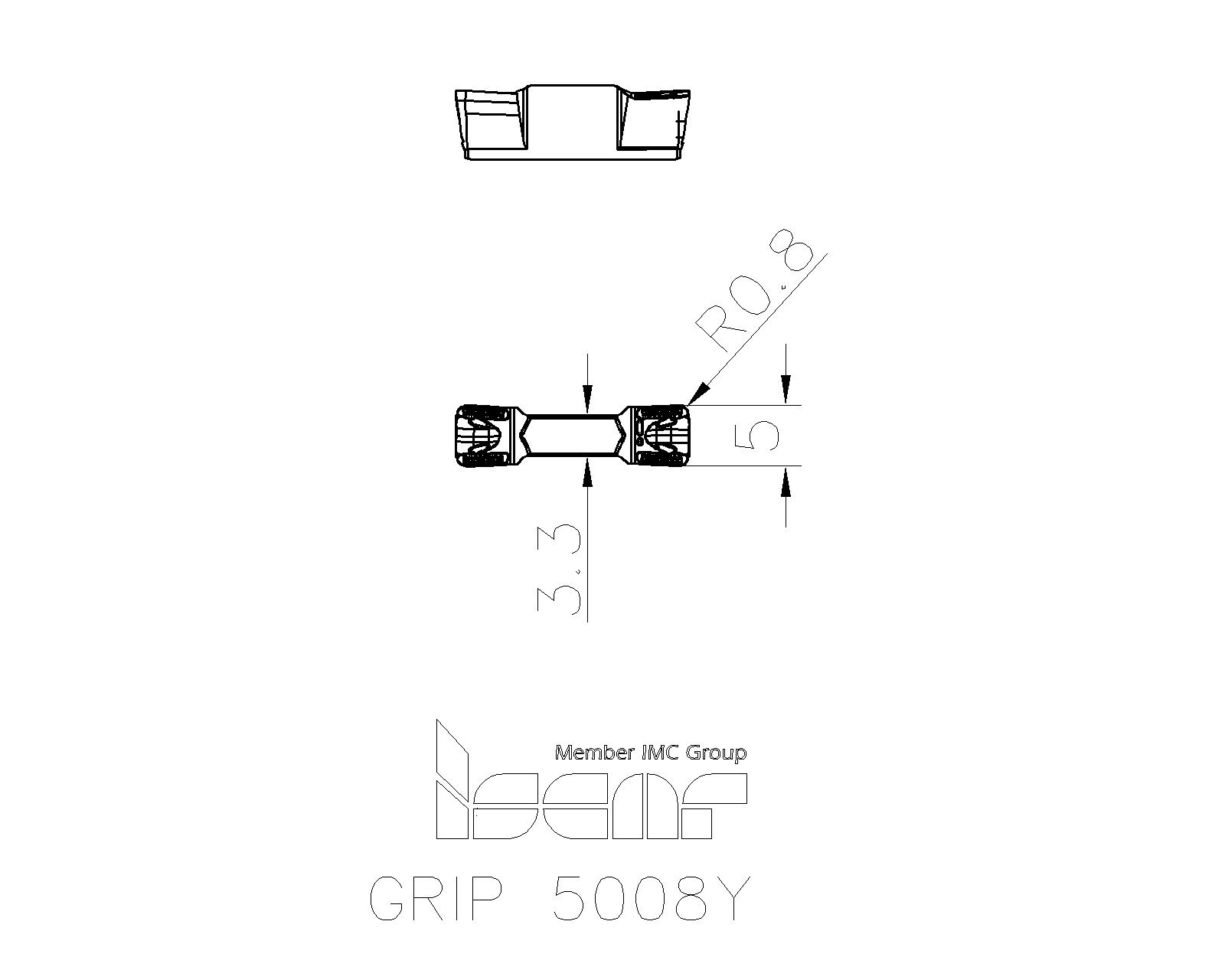

Item Designation: GRIP 5008Y

CW	CWTOL	RE	RETOL	INSL	BW	CICT	CBMD	ap (min)	ap (max)	ft (min)	ft (max)	fg (min)	fg (max)	DAXN	CEDC	SC	AN	CDX	COATP	CSP	DMIN	GRDMFG	HAND	IFS	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
5.00	0.050	0.80	0.050	19.00	3.40	2~	~	1.00	3.00	0.23	0.35	0.11	0.21	21.7~	2~	L~	-~	-~	~	0~	-~	IC354 ~	N~	7~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~		Superalloys and titanium~	Carbide~	AlTiN "SUMO TEC" ~	6200459		9

Catalog No	Grade & Vc	Alternative	GISC	AvailUSA	GTC	STP	P21
3341412	IC806		1	50	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=3341412&cat=3341412&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3341412&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3341412&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200129	IC908	Alternative	1	260	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200129&cat=6200129&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200129&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200129&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200131	IC354	Alternative	1	290	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200131&cat=6200131&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200131&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200131&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200192	IC418	Alternative	1	270	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200192&cat=6200192&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200192&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200192&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200328	IC808	Alternative	1	190	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200328&cat=6200328&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200328&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200328&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200418	IC8250		1	140	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200418&cat=6200418&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200418&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200418&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200427	IC5010		1	10	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200427&cat=6200427&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200427&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200427&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200440	IC830	Alternative	1	890	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200440&cat=6200440&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200440&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200440&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
6200459	IC807	Alternative	1	300	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200459&cat=6200459&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200459&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200459&itemDesc=GRIP 5008Y"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 10

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required
