Family Designation: HFPR/L (full radius)

Utility double-ended full radius face machining inserts.

No depth penetration limit.

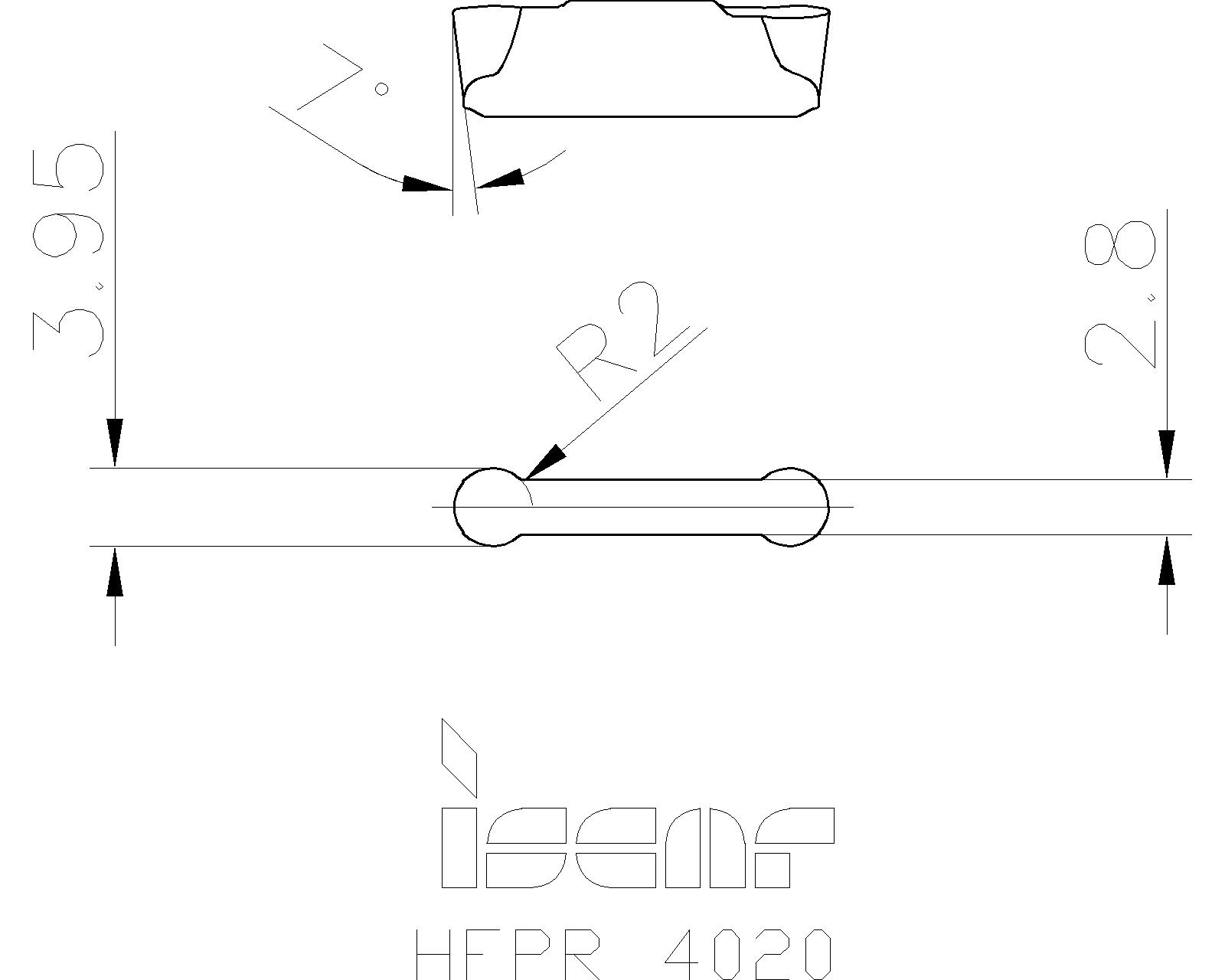

Item Designation: HFPR 4020

CW	RE	CWTOL	BW	DAXN	DAXX	ap (min)	ap (max)	fft (min)	fft (max)	ffg (min)	ffg (max)	HAND	CEDC	L	SC	AN	CBMD	CDX	COATP	CSP	DMIN	GRDMFG	IFS	INSL	S	S1	WEP	ApplMat	StaSteel	CastIron	HardMa	NFMetals	SupTit	CutEdMat	Coating	GICAT	GIREM	giic
4.00	2.00	0.050	2.80	24.1	73.7	0.00	2.00	0.15	0.25	0.10	0.24	R~	2~	19.00~	L~	7.0~	~	-~	~	0~	-~	IC20 ~	7~	19.00~	-~	-~	0~	Steel~	Stainless Steel~	Cast Iron~	Hard Materials~	Non Ferrous Metals~	Superalloys and titanium~	Carbide~	AlTiN "SUMO TEC" ~	6290374		9

Catalog No	Grade & Vc	Alternative	GISC	AvailUSA	GTC	STP	P21
3318158	IC806		1	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=3318158&cat=3318158&itemDesc=HFPR 4020"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3318158&itemDesc=HFPR 4020"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3318158&itemDesc=HFPR 4020"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
6200049	IC20	Alternative	1	1280	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200049&cat=6200049&itemDesc=HFPR 4020"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200049&itemDesc=HFPR 4020"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200049&itemDesc=HFPR 4020"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
6200070	IC354	Alternative	1	6400	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200070&cat=6200070&itemDesc=HFPR 4020"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200070&itemDesc=HFPR 4020"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200070&itemDesc=HFPR 4020"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
6200140	IC9015	Alternative	1	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200140&cat=6200140&itemDesc=HFPR 4020"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200140&itemDesc=HFPR 4020"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200140&itemDesc=HFPR 4020"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
6200307	IC808	Alternative	1	2240	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200307&cat=6200307&itemDesc=HFPR 4020"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200307&itemDesc=HFPR 4020"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200307&itemDesc=HFPR 4020"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
6200358	IC830	Alternative	1	480	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200358&cat=6200358&itemDesc=HFPR 4020"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200358&itemDesc=HFPR 4020"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200358&itemDesc=HFPR 4020"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
6200373	IC8250	Alternative	1	1280	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200373&cat=6200373&itemDesc=HFPR 4020"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200373&itemDesc=HFPR 4020"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200373&itemDesc=HFPR 4020"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
6200389	IC5010	Alternative	3	0	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6200389&cat=6200389&itemDesc=HFPR 4020"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6200389&itemDesc=HFPR 4020"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6200389&itemDesc=HFPR 4020"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
6290374	IC428	Alternative	1	10400	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=6290374&cat=6290374&itemDesc=HFPR 4020"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=6290374&itemDesc=HFPR 4020"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=6290374&itemDesc=HFPR 4020"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 10

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
